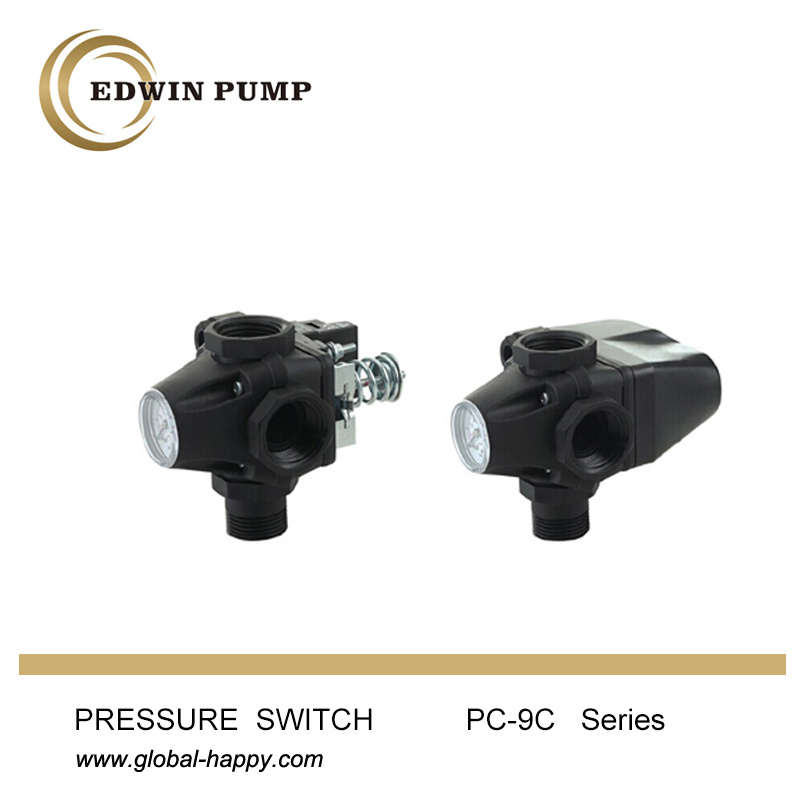

Automatic Pump Control Pressure Switch PC-9c

Prod Model:	PC-9C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	15-80psi
Type:	Mechanical
Application:	Water Pump

Product Description

TECHNICAL DATA
1, PC-9 Pressure Range: 15-175psi
  PC-9A Pressure Range: 0.1-2.0psi
  PC-9C Pressure Range: 15-80psi
2,PC-9 Pressure Setting: 15-35psi, 20-40psi, 30-50psi, 40-60psi, 50-80psi, 95-125psi, 120-150psi,     135-175psi
  PC-9A Pressure Setting: 0.15-0.95bar
  PC-9C Pressure Setting: 15-35psi, 20-40psi, 30-50psi, 40-60psi, 50-80psi
3, Rated Current: 16(10)A
4, Rated Voltage: 110V-240V
5, Frequency: 50/60Hz
6, Max. Ambient Temperature: 55degree
7, Protection Degree: IP54

PC-9DESCRIPTIONS
1, Pressure switch used in water systems
2, Theswitch start and stop the water pumpautomatically according to the setting pressure value
3, Hydraulics connection can choose: 1/4" Male & Female
4, Customized setting

PC-9ADESCRIPTIONS
1, Pressure switch used in water systems and pneumatic systems
2, The device interrupts the electric connection between the line and the load when the pressure decrease below the setting value (stopping pressure)
3, Hydraulics connection can choose: 1/4" Male & Female
4, Anti-wearing cable clamps
5, Customized setting

PC-9CDESCRIPTIONS
1, Pressure switch used in water systems
2, The switch start and stop the water pump automatically according to the setting pressure value
3, Composed of pressure switch, five way and pressure gauge
4, Hydraulics connection can choose: 1/4" Male & Female
5, Customized setting

OPTIONALS
1, Crust according to customer's needs (For PC-9 & PC-9C)
2, Hydraulics connection according to customer's needs
3, Pressure setting according to customer's needs


PACKING SIZE (cm)	50 x 50 x 39.5
PCS/CTN	36
N.W. (KGS)	17.6
G.W. (KGS)	21.6
