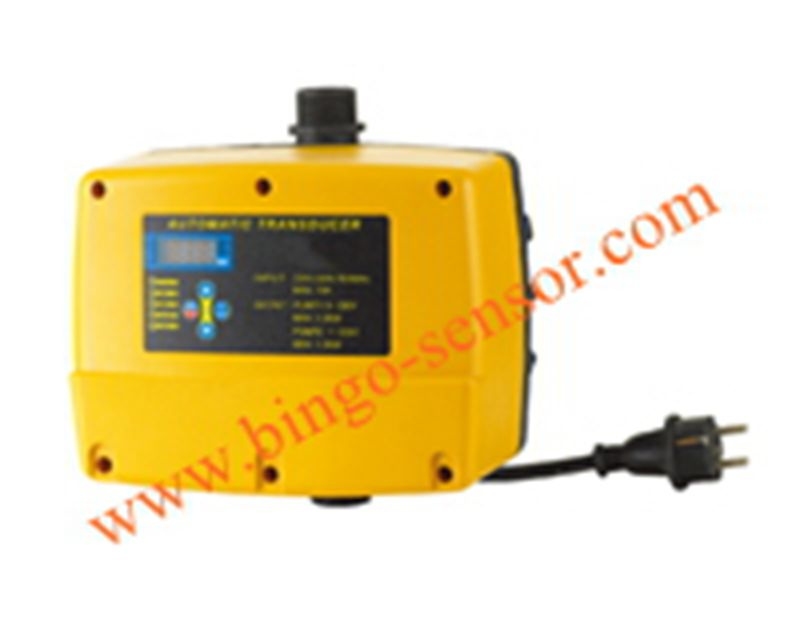

Automatic Pump Controller or Transducer

Name: Automatic Pump Controller or Transducer
Brand: all-electronics-online.com
SKU: 670911941
Availability: InStock
Rating: 5 (89 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-WE60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Pressure Setting:	1-9bar
Max Pressure-Resistant:	10bar
Type:	Electronic

Product Description

We are first class retailer, wholesaler, and exporter for Automatic transducer PS-WE60 in China since 2009. Quick response, fast delivery.
Introduction:
PS-WE60 controller is a pump set controller which is controlled by microcomputer with automatic pressure tracking and regulating functions. The single-phase power gives it a wide range of bersatility in its application; The newly advanced controlmethod of adjusting power according water consumption can save a lot of electricity; The integrated design makes it easy to be installed and operated without use of other appliance parts and be free of maintenance. It can entirely replace the traditional constant pressure water supply equipment composed by PLC, inverter, controller cabinet and pressure sensors. The controller installed with two pumps will be the most economical water supply system nowadays. As a result, this device can significantly reduce your initial equipmeng investment and long-term use-cost.
Application:
PS-WE60 frequency constant-pressure controller combined AC frequency control tech
And auto-control tech together, created an automatic water supply system with advanced
Performance, safe and reliable. This system mainly used in water supply equipment, can be
Used as a booster control system in the boiler feed water systems, industrial water recycling systems, cooling water systems, also can be used for fire fighting, irrigation and sprinkler devices. The main application is used in domestic water supply system in residential villas and so on.
Technical Data:

Power supply	Single phase 220-240V,50/60Hz
Main pump motor(Pumo1)	3-230V(CONNECTION) /400V(Y-CONNECTION)/50/60Hz,Max.1500W.
Auxiliary pump motor(Pump2)	Single-phase 220-240V, 50/60Hz,Max.1500W(Flow rate and power shall not exceed main pump)
Protection Grade	IP65
Ambient temperature	0°C~40°C
Liquid	Drinking water or non-drinking clean water
Liquid Temperature	0°C~50°C
Max pressure-resistant	10bar
Pressure setting	1-9bar
