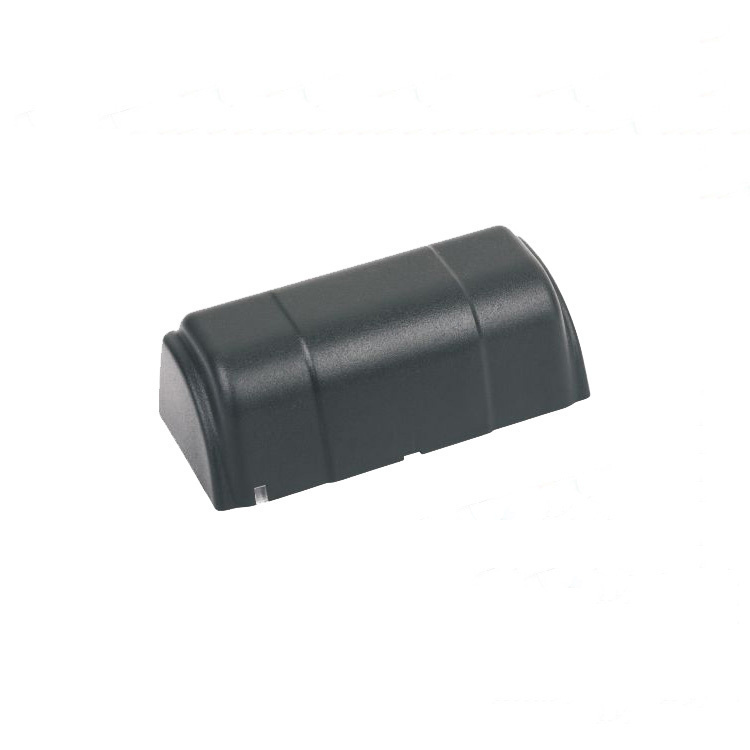

Automatic Sliding Door Sensor Radar

Name: Automatic Sliding Door Sensor Radar
Brand: all-electronics-online.com
SKU: 821091525
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH102
Power Supply:	AC 12V-24V +/- 10%; DC 12V-30V
Door Sensor GHz:	24.125GHz
Mounting Height:	Max 3.5m
Output Retention Time:	0.5 Second
Weight:	100g
Conducting Wire Length:	2.5m
Outer Covering Color:	Black

Product Description

Product features

1.Germany innosent detecting chip, 24.125GHZ.

2.Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

3.Safe, beautiful, economic, comfortable.

Specifications

24.125ghz microwave sensor for automatic door opening(YH102)
Approval	CE & SGS
Power supply	AC/DC 12-36V
Current consumption	Static Current 45mA Action Current 105mA
Environmen tal temperature	-20ºC ~ +60ºC
Environmen tal humidity	0-90%, without condensation
Wave form	X-Band 24.174 GHZ
Out put	<=20dBm
Relay output	N.O.-point output (Relay)
Maximum voltage	48V AC/DC
Maximum current	0.5A AC/ 1.0A DC
Minimum switching power	1 mA
The largest power switch	55VA /24W
Weight	220g
Protection level	IP 54
Size	1316146mm(LWH)

Ningbo YoHe Supply Chain Co., Ltd located in Ningbo, Zhejiang China. Specilized in design, manufacturing, sales and service of high-end automatic doors& gates parts, such as microwave sensor, infraraed sensor, photocell, safety edge, controller, emitter and so on for various kind of doors and windows. We persists in basic principle of science and technology, implments, sincerity, hamony, creativity as its management philosophy, strictly abides by the "fine, precise, beautiful" as its manufacturing ideas. Keeping innovation, developing and manufacturing motors, operators for window and doors, sun protection products etc. Our products are mainly used for shutter, screem, awning, roff windown, garage doors, roller blinds etc. TheMainly exported to Europ, USA, Middle East, Austrail, Asia and so on. Welcome to visit us! !

Our advantage

1. Profession in this line

2. Qucikly lead time

3. Small orders accepted

4. High quality products

5. Competitve Price

6. Best Service
