Automatic Voltage Regulator As440

Name: Automatic Voltage Regulator As440
Brand: all-electronics-online.com
SKU: 710848565
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AS440
Weight:	0.4kg
Apply For:	Brushless Generator
Brand:	OEM

Product Description

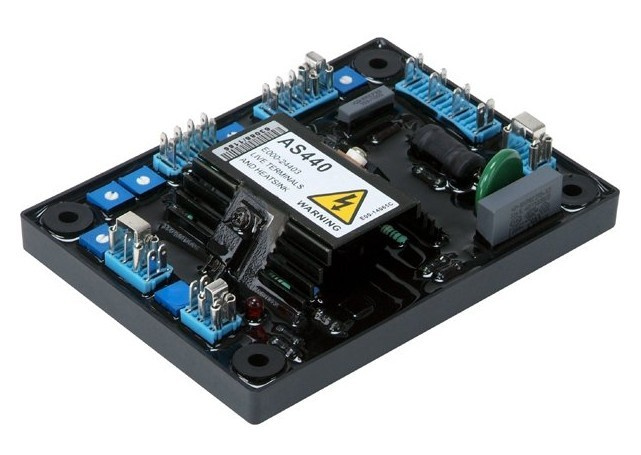

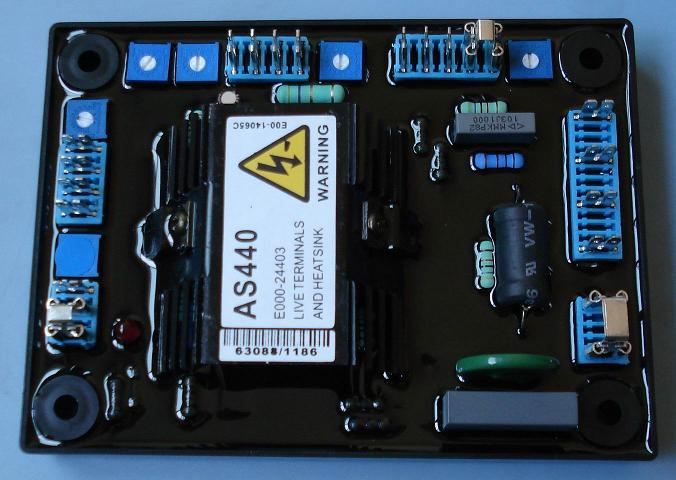

Newage Stamford AVR AS440

AS440
Introduction:
The AS440 ( + Kit replaces SX440 ) is a half-wave phase-controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection to ensure safe, reliable control of the generator. The Propose employs surface mount technology (SMT) for high integration of features in a minute footprint AVR.

Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. The control and voltage sensing circuits have separate terminals, allowing the excitation power to be resulting directly from the stator winding for necessary applications or from an auxiliary winding if sustained short circuit performance is essential. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.0%

Features include:
*Stability adjustment *Optimum response selection
*Under frequency roll off adjustment *Droop adjustment
*Trim adjustment

POWER INPUT
Voltage 100-264 V AC 1 phase Frequency 50-60 Hz nominal
OUTPUT
Voltage 82 V d. C. @ 200 V a. C.
Current continuous 4A (see note 1).
Transient 7.5A for 10 secs.
Resistance 15 ohms min
(10 ohms min when input
Volts is less than 175 AC)
REGULATION +/- 1.0% (see note 2)

Zhejiang Holdwell Group Limited (called "Holdwell" for short) established in 2011, is a professional supplier and manufacturer of Diesel engine parts, generator set parts, construction machinery parts, agriculture machinery parts, aerial work platform parts, refrigeration transport machinery parts.

We are ISO9001: 2008/ISO-TS16949 Quality Management System certified. Every procedure must be under the quality handbook. We have an experienced technical team. Our specially trained engineers provide efficient and excellent service to clients. Our products are exported to Europe, America, Australia, Southeast Asia and the Middle East.

Our product range covers:

1. Diesel engine parts like stop solenoid, water pump, fuel pump, Starter, Alternator, fuel system parts, engine overhaul parts. Our main brand are Cummins, Deutz, Kubota, Isuzu, Lister Petter, Mitsubishi, Perkins, Yanmar.

2. Generator set parts, such as AVR, controller, PCB, actuator, sensor, switch, battery charger. Main brands are Caterpillar, F. G. Wilson, SDMO, Onan, Cummins, ike stamford, Leroysomer Marathon, Maralli Generator parts.

3. Construction machinery parts, such as excavator parts, wheel loader parts, skid steer loader parts. Main brands are Caterpillar, Case, JCB, Bobcat, Volvo, Kobelco, Komatsu, Hyundai, Hitachi.

4. Agriculture machinery parts, such as tractor parts. Main brands are Case, John Deere, Massey Ferguson, New Holland, Kubota, Yanmar, Mitsubishi, Iseki.

5. Aerial work platform parts, such as Joystick controller, battery charger, toggle switch, contactor, manual box, beacon and so on. Main brands are JLG, Genie, Skyjack.

6. Refrigeration transport machinery parts, such as filter, fuel pump, fuel solenoid, water pump, starter, alternator, compressor parts and so on. Main brands are Thermo King and Carrier.

Abiding by our motto of "Hold well the quality and services, Customers Satisfaction", So we provide our clients with high quality products and excellent service. Please feel free to contact us for further information.

Holdwell-Your faithworthy supplier in China.
