Automatic Voltage Regulator Mx341 for Stamford

Name: Automatic Voltage Regulator Mx341 for Stamford
Brand: all-electronics-online.com
SKU: 710848695
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MX341
Weight:	0.76kg
Apply For:	Brushless Generator

Product Description

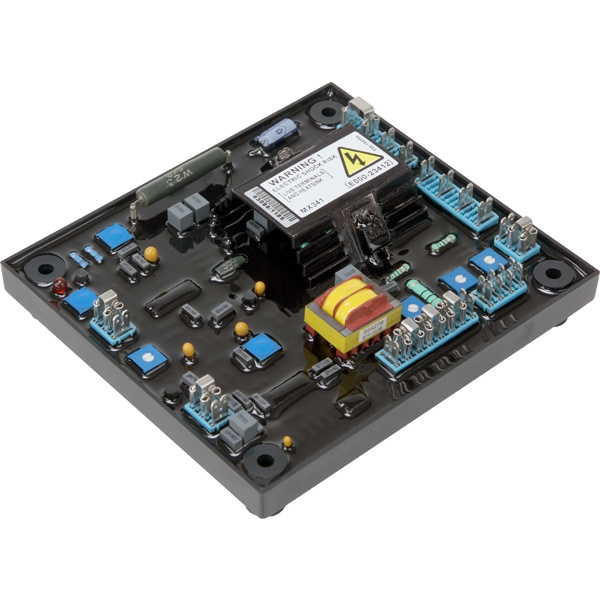

Newage Stamford AVR MX341 Generator Voltage Regulator

Specifications

Product Name: Stamford AVR MX341

The MX341 is a two phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes protective features to ensure safe reliable control of the generator. This model supercedes the Series 3 range. This AVR is used only in cojunction with permenant magnetic type alternators.

Features:
*Stability adjustment
*Optimum response selection
*Under frequency roll off adjustment
*DIP adjustment
*Droop adjustment
*Trim adjustment
*Over excitation adjustment

Specifitions:
SENSING INPUT
Voltage 190-264V AC max, 1 phase, 2 wire
Frequency 50-60 Hz nominal POWER INPUT (PMG)
Voltage 140-220V AC max, 3 phase, 3 wire
Current 3A/phase
Frequency 100-120 Hz nominal
OUTPUT
Voltage max 120V DC
Current continuous 3.7 A
Intermittent 6A for 10 secs.
Resistance 15 ohms minimum
REGULATION +/- 1%

Pleae do not hesitate to contact with us for any detail, thank you!
