Automatic Voltage Regulator (Stabilizer) SVC Series

Name: Automatic Voltage Regulator (Stabilizer) SVC Series
Brand: all-electronics-online.com
SKU: 743798955
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	US $ 70-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-5000VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	5kVA
Phase Type:	Single Phase
Approval:	CE
Display:	LED
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Industrial Frequency
Brand:	Chana

Product Description

Feature

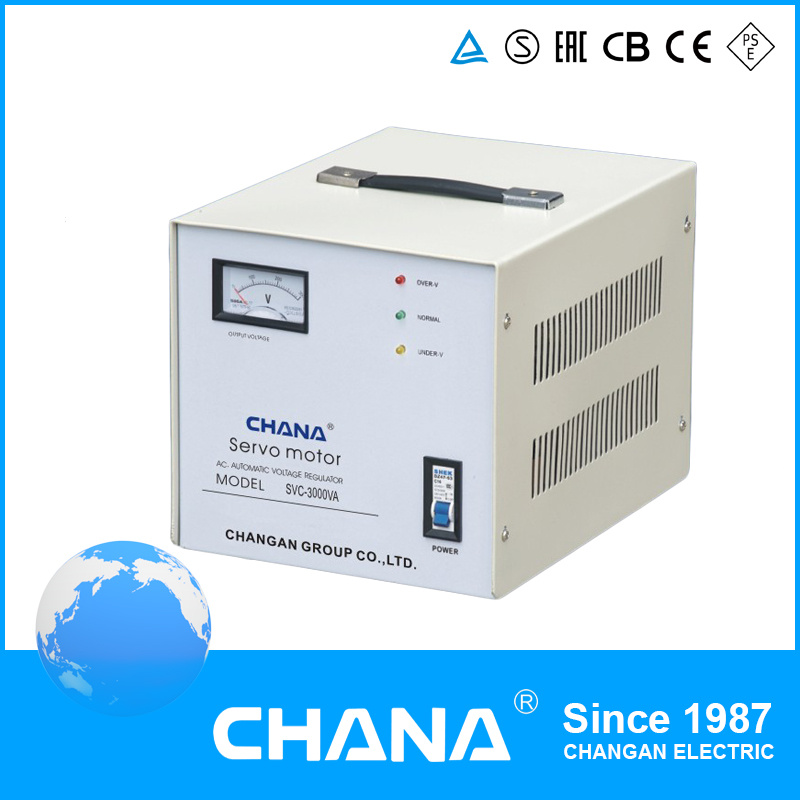

The SVC series product is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.

Main Technical Data
Phase no.: Single-phase
Input voltage: 160V - 250V
Output voltage: 220V/ 110V +/- 2.5% (<=5000VA with 110 +/- 2.5%)
Frequency: 50Hz/ 60Hz
Adjustable time: < 1 sec. Against 10% input voltage deviation
Efficiency: >90%
Ambient Temperature: - 10 degree - + 40 degree
Relative humidity: < 95%
Temperature rise: < 60 degree
Waveform distortion: Non additional waveform distortion
Withstand voltage: 1500V/min
Insulation resistance: > 2M ohm
With over current protector
With output voltage indication

Application
Computer, Tesing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and home appliance etc.

Note: If input voltage AC50V - 130V, or 160V - 250V with 110/220V input voltage selector switch required by ccustomers, please specify when ordering.
Special Specification can be made according to orders.

Model	Nos&Kinds of Pkg.Packing Size(cm)	Package size (cm)
SVC-500VA	4 Uint/Ctn	50 * 46 * 20
SVC-1000VA	4 Uint/sCtn	55 * 50 * 21
SVC-1500VA	4 Uints/Ctn	55 * 50 * 21
SVC-2000VA	2 Uints/Ctn	61 * 35.5 * 25.5
SVC-3000VA	2 Uints/Ctn	61.5 * 39 * 29
SVC-5000VA	1 Uint/Case	33 * 28 * 54
SVC-5KVA (Vertical)	1 Uint/Case	31.5 * 35 * 55.5
SVC-7500VA	1 Uint/Case	37.5 * 35.5 * 60
SVC-7.5KVA(Vertical)	1 Uint/Case	41.5 * 45 * 63
SVC-10000VA	1 Uint/Case	37.5 * 35.5 * 60
SVC-10KVA (Vertical)	1 Uint/Case	41.5 * 45 * 63
SVC-15KVA	1 Uint/Case	52 * 51 * 83
SVC-20KVA	1 Uint/Case	52 * 51 * 83
SVC-25KVA	1 Uint/Case	52 * 51 * 101
SVC-30KVA	1 Uint/Case	52 * 51 * 101
SVC-50KVA	1 Uint/Case	80 * 65 * 154
