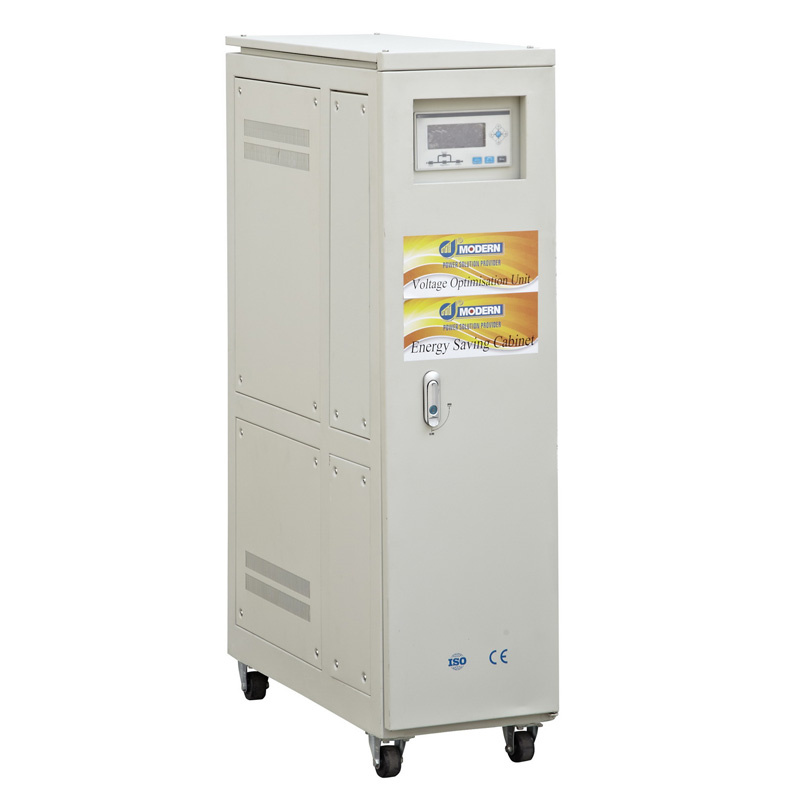

Automatic Voltage Stabilizer for Textile Equipment Special-Purpose

Name: Automatic Voltage Stabilizer for Textile Equipment Special-Purpose
Brand: all-electronics-online.com
SKU: 649646545
Availability: InStock
Rating: 5 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW, DBW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Type:	AC
Phase:	Three Phase
Usage:	JIW
Frequency:	Industrial Frequency

Product Description

Technical parameter

Rated capacity (kVA): 10~2400 kVA, 3~500 kVA

Input current (A): Correlation to the rated capacity
Input voltage (V): 380VAC+/-20% optional, 220VAC+/-20% optional
Output voltage (V): 380VAC+/-5% optional, 220VAC+/-5% optional

Phase number: Three phase single phase
Insulated strength: 2000V/1 Min does not have the puncture

Time for response: ≤ 1.5s (input fluctuation within 10%)
Efficiency: ≥ 98%

Waveform distortion: ≤ 0.1%
Working frequency (Hz): 50~60
Constant voltage precision: +/-5% adjustable

Since most of textile equipment are installed in cotton-dusty and humid environment and usually voltage regulators are required to be near textile equipment, the voltage regulator of textile equipment designed by our company makes use of the structure of sealing inner air duct board. Auto temperature test control is applied to emit heat. The whole system is moisture proof to ensure continuous and normal operation of equipment in highly humid environment. It has the features of high precision of voltage regulation, good stability and flawless protection.

Input Voltage	DBW SBW
Input Voltage	220±15%,20%,30%,50% 380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%)	220Vac±1-5% 380Vac±1-5%
Efficiency	>98%
Precision	1-5%
Frequency	47-53Hz
Response Time	<0.5S/20V(Line Voltage)
Insulated Strength	2000V/1 minute without puncture 2500V/1 minute without puncture
Insulated Resistance	>2MΩ
Wave Deformation	Nil
Isolation transformer	Optional
Surge Protection	Optional

Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.

Experienced and Fully Customizable Solutions

As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.

ISO 9001: 2008 Certified Processes

ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.

Outstanding Service

As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
