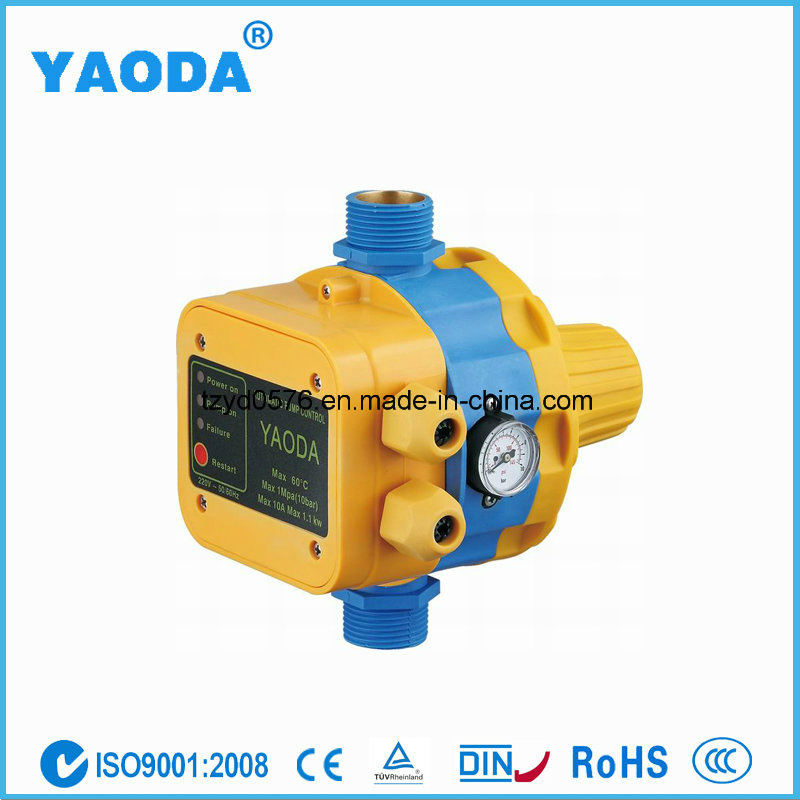

Automatic Water Pump Pressure Control (SKD-12)

Automatic Water Pump Pressure Control (SKD-12)
Price: US $ 13.2-14.3/Piece
Min Order: 600/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: SKD-12
Rated Voltage: 220-240V; 110-115V
Starting Pressure: 1.5bar
Max Pressure: 10bar
Connector Size: G1"
Type: Electronic
Application: Commercial
Explosion-proof Type: Flameproof
Contact: Normally Open
Brand: Yaoda

Product Description

Technical Data:
1. Rated Voltage: 110V/230V
2. Frequency: 60Hz/50Hz
3. Max Current: 10(6)A
4. Starting Pressure Setting: 1.5bar/2.2bar
5. Jonit Screw: G1"
6. Max Working Pressure: 10bar
7. Protection Grade: IP65
8. Max Working Temp: 60 degree


Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
3. It is very convinent to change the water pump.
with cable HO7RNF3x1mm2 and European plug attached
Wiring requirement: Cable diameter 7.5-9mm
The length of the cable will be as your requirement.
Descriptions:
Rated Voltage110V/230V
Max. Current10(6)A
Frequency60HZ/50HZ
Max. Power1.1KW/2.2KW
Joint ScrewG1"
Starting Pressure1.5bar/2.2bar
Max Working Pressure10bar
Protection GradeIP65
Max Operating Temperature60 degree
ApplicationSelf-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
ZHEJIANG YAODA INTELLIGENT SCI-TECH Co., Ltd is a national high-tech enterprise engaged in R&D, design, manufacturer, sales and service of all series pump controller, tanks and progressive die areas. YAODA is the first listed company in Chinese pressure controller industry.

We have more than 200 staffs, 50 of them are the core technical staffs. It has advanced production equipments, high-quality management personnel, professional production teams. We created Zhejiang provincial R&D center, with various professional test equipments. The comprehensive development capacity reaches the highest level in the same field. We have passed the certificates: ISO9001: 2008, TUV, CE, PED, RoHS, EU and CCC.

We sell the products to over 100 countries and regions, such as Europe, Southeast Asia, Middle-East, Australia, South America and Africa countries, etc. Our main products are automatic pressure controller, frequency inverter, pressure switch, float switch, pressure tank, expansion tank for heating system, progressive die, which play a crucial role in water pump system, air compressor system, heating system, mould industry, etc. We supply the products to LEO pumps, SHIMGE pumps, SANYU pumps, JUNHE pumps, LX pumps, TAIFU pumps, etc.

With the several subsidiary companies- TAIZHOU MEITAI IMPORT & EXPORT Co., Ltd, TAIZHOU TASLEEN PRECISE DIE Co., Ltd, YAODA possesses a solid foundation to be a world-class pump auto-controller specialist and system solution provider.

With more than 20 years' professional experience and enterprise spirit "Quality, Technology, Profession, Service", we will provide personalize service to make the best water control system for your efficient life.
