| Prod Model: |
PS-WE10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Staring Pressure: |
1.5bar or 2.2bar |
| Rated Current: |
Max. 10A/30A |
| Allowable Pressure: |
Max. 10bar |
| Ambient Temperature: |
Max. 60centigrade |
| Type: |
Electronic |
| Application: |
Vehicles |
| Explosion-proof Type: |
Flameproof |
| Contact: |
Normally Open |
Product Description

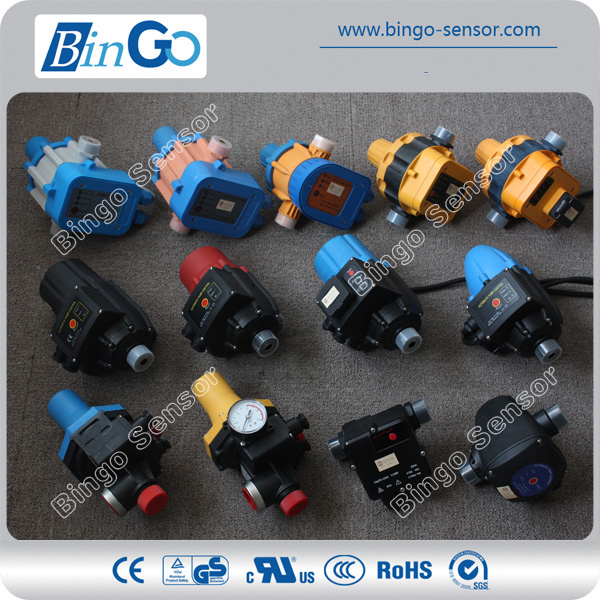

Automatic Water Pump Pressure Switch
1. Introduction:
1. Electric switch used in water systems.
2. It starts the electric pump automatically after a pressure decrease(taps opening)
and stops it when the fluid flow interrupts at the maximum pressure level of the
electric pump(taps closed).
3. Joint screw: G1"male.
4. Completely replaced traditional pump control system composed of pressure switch,
pressure tank and check valve, etc.
5. Stop the water pump in the case of water shortage.
6. Customized setting.
2. Specification
| Staring Pressure | 1.5bar or 2.2bar |
| Rated Current | Max. 10A/30A |
| Allowable Pressure | Max. 10bar |
| Rated Voltage | 110V-120V or 220V-240V |
| Frequency | 50/60HZ |
| Ambient Temperature | Max. 60°C |
| Protection Degree | IP65 |
3. Packing Size:
| CTN SIZE(cm) | 46*42.7*25 |
| PCS/CTN | 12 |
| N.W.(KGS) | 13.56 |
| G.W.(KGS) | 16.42 |
4. Our service:
1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
5. Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.
If you need more information about the product, click here: www.bingo-sensor.com
