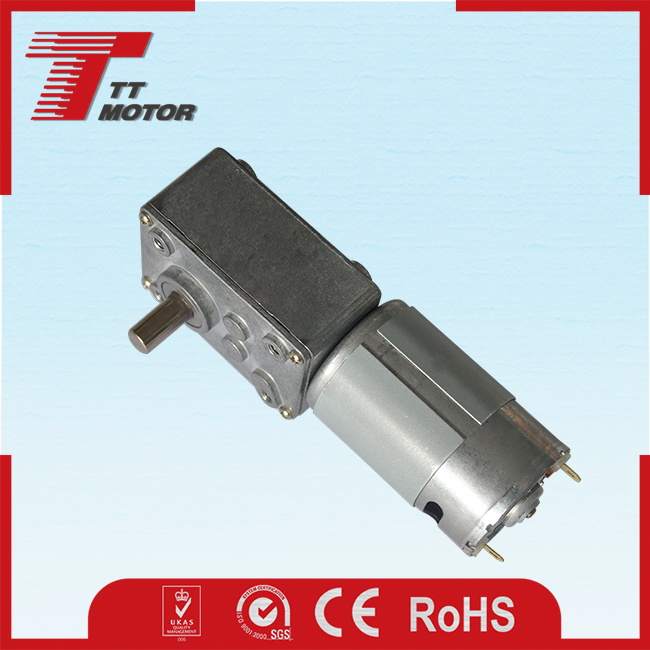

| Prod Model: |
DC Worm Gear motor TWG4058-555PM |
| Product Name: |
DC Worm Gear motor TWG4058-555PM |
| Gearbox Material: |
metal |
| Shaft Diameter: |
6mm |
| Life Expectancy: |
500hours |
| Torque: |
1.2-10kgf.cm |
| Construction: |
Permanent Magnet |
| Protect Feature: |
Totally Enclosed |
| Output Power: |
0.1-50W |
| Efficiency: |
80%-90% |
| Shaft Material: |
Carbon Steel or Stainless Steel |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Worm Gear Motor |
| Certification: |
RoHS CE |
| Brand: |
TT Motor |
Product Description
| Website | Website: www.ttmotor.com |
| Contact | Elina Yan |
| Tel | +86-1581-3704-981 |
Automation equipment electeic 12V micro worm gear motor
Main Features

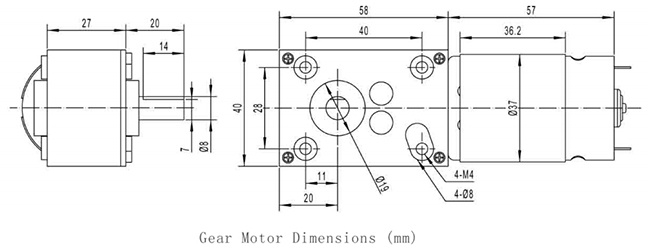

| 1.OEM/ODM 40x58mm morm gearbox plus 555PM permanent magnet DC motor & 36mm brushless motor |
| 2.Small size dc gear motor with low speed and big torque |
| 3.40x58mm gear motor provide 1.0Nm torque and more reliable |
| 4.Suitable to small diameter, low noise and big torque application |
| 5.DC Gear motor can match encoder,11ppr |
| 6.Reduction ratio:81,135,207,405,621 |
Motor technical data :
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TRS-555PM-1233 | 12 | 3300 | 200 | 2800 | 200 | 1000 | 5.7 | 1150 | 5.5 |
| TRS-555PM-1260 | 12 | 6000 | 300 | 5250 | 290 | 2400 | 16 | 2200 | 15 |
| TRS-555PM-2440 | 24 | 4000 | 150 | 3150 | 200 | 700 | 6.4 | 1000 | 2.7 |
Gear motor technical data : TWG4058-555PM-1233-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 38 | 24 | 16 | 8 | 5 |
| Rated speed rpm | 34 | 21 | 14 | 7 | 5 |
| Rated torque kg.cm | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 15 | 15 | 15 | 15 | 15 |
Gear motor technical data : TWG4058-555PM-1260-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 70 | 43 | 29 | 15 | 10 |
| Rated speed rpm | 65 | 39 | 26 | 14 | 9 |
| Rated torque kg.cm | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 15 | 15 | 15 | 15 | 15 |
Gear motor technical data : TWG4058-555PM-2440-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 47 | 28 | 19 | 10 | 6 |
| Rated speed rpm | 39 | 24 | 16 | 8 | 5 |
| Rated torque kg.cm | 10 | 10 | 10 | 10 | 10 |
| Max.momentary tolerance torque kg.cm | 15 | 15 | 15 | 15 | 15 |
Product Application
| Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |

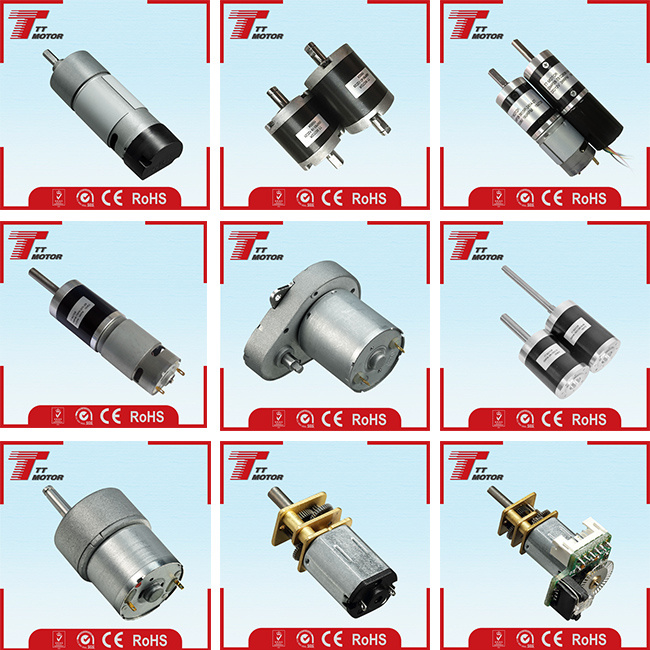

Related Product
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

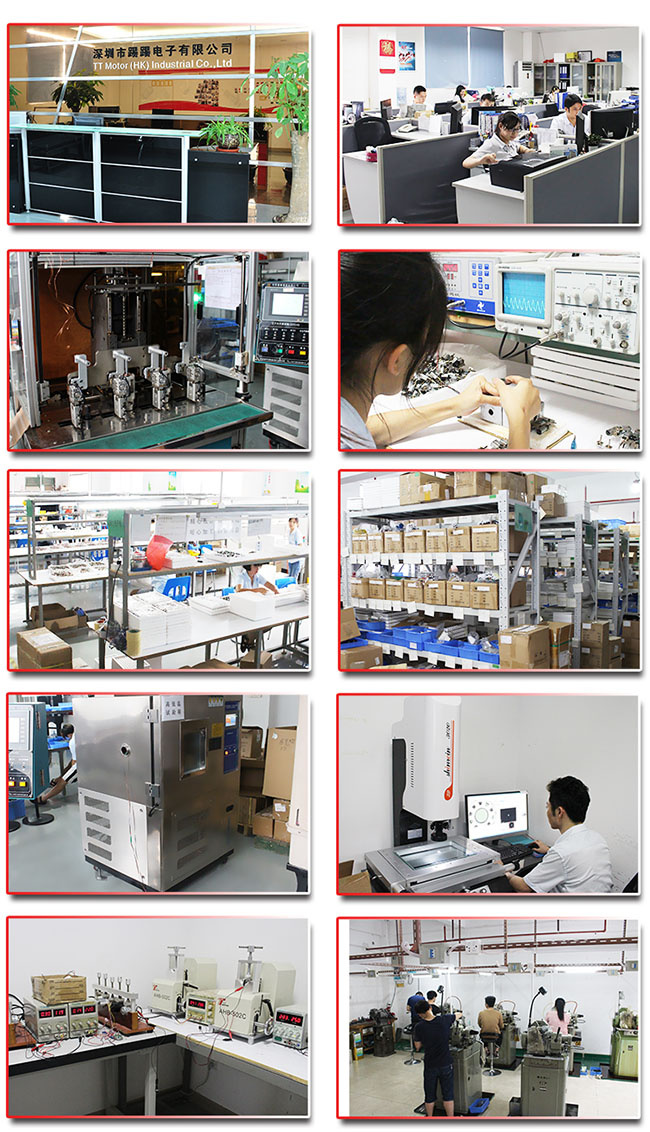

Our Company
TT Motor (HK) Industrial Co., Ltd has been specializing in bldc motor,brushless motor,stepper motor,dc motor,electric motor,micro motors, geared motors and their respective parts since 2006.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
