| Prod Model: |
80D26 |
| Certificate: |
SGS |
| Weight: |
17-17.5kg |
| Capacity: |
65ah |
| Warranty: |
12 Months |
| Self-Discharge: |
Low |
| Delivery: |
25 Days After Receive Deposit |
| Sealed Type: |
Sealed |
| Case: |
ABS |
| Color: |
Black |
| OEM/ODM: |
Available |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Company Profile
Dongjin Group, found in 1993, specialize in research, development, manufacturing and sales of lead-acid battery including globally known KINON and DONGJIN brand batteries. In 2012, our company establish factory in Jiangxi covered area of more than 200, 000, and in 2016 start the biggest battery production factory in Bangladesh with totally area more than 40000 square meters.
With independent R&D team, company have adopted advanced production equipment and testing methods, and effectively guarantee the quality of products, products with high capacity small volume, light weight, long lifespan, high performance, with excellent performance won the majority of consumer recognition and dependence. Widely used in automobiles, electric vehicles, electric power, telecommunication, UPS system, EPS system, security, electric tools, emergency lighting and etc. fields.
Product Parameters| Battery Specification | Battery Characteristics |
| Nominal Capacity | 12v | Capacity | 20hr | 80AH |
| Nominal Capacity(2hr) | 65ah | 5hr | 75AH |
| Dimmensions | L(mm) | 256 | 3hr | 70AH |
| W(mm) | 175 | 2hr | 65AH |
| H(mm) | 191 | Open-circuit Voltage | 12.72-12.80 |
| TH(mm) | 212 |
Charging Voltage(V) | Float Charging | 14.5-15 |
| Weight(kgs) | 17-17.5 | Cycles V | 16.3-16.8 |
| Container Material | ABS | Max Discharging Current(A) | 550A(5S) |
| Internal Resistance(mΩ) | ≤15 | Max Charing Current(A) | 16A |
| Capacity at different temperature | 40ºC | 102% | Remain Capacity(2hr) | After 1Month | 90% |
| 25ºC | 100% | After 3Months | 80% |
| 0ºC | 85% | After 6Months | 60% |

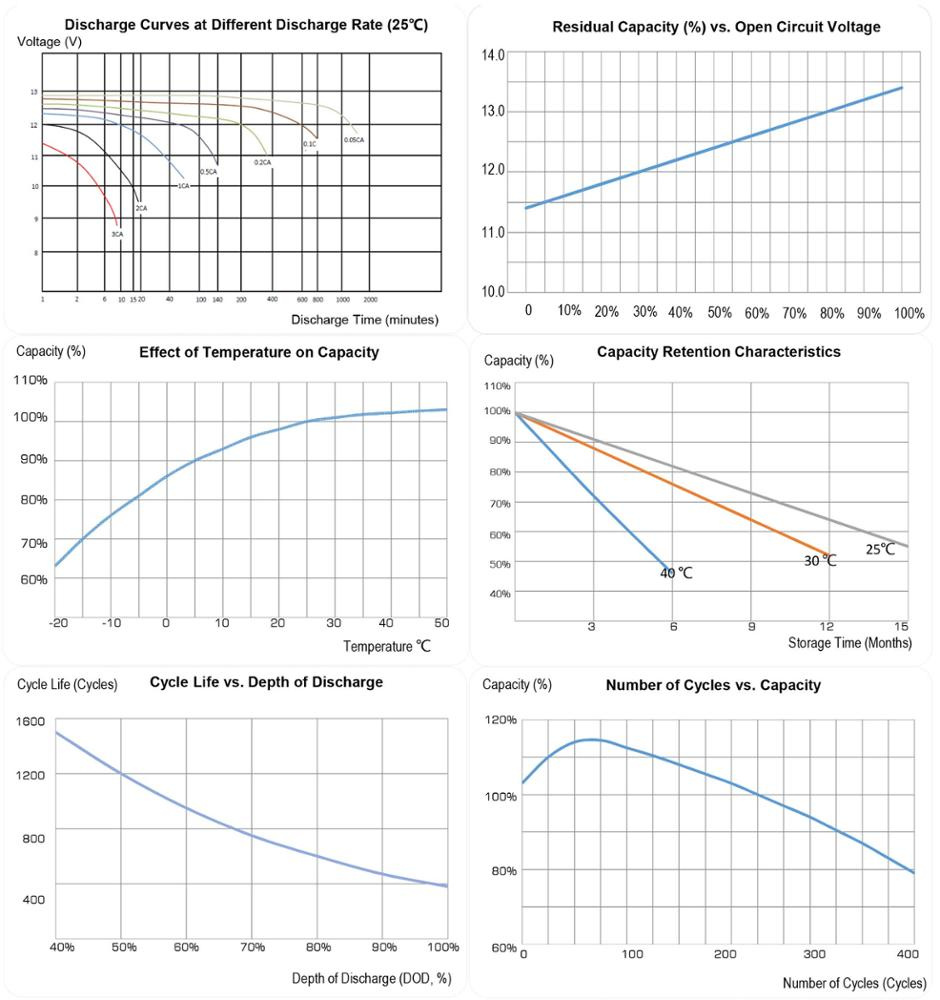

| Charging Curve | Battery Picture |
12V65AH(1pc/set)
Phase I:The maximum charging current is 1.7A,voltage gradually increase to 14.4V.
Phase II:Charging voltage gradually increases from 14.4V to 14.7V,when charge current gradually decreases to around 0.40-0.50A,converted to float (trickle)charge.
Phase III:Constant charge Voltage13.75V. |
Main Products| Model | VOLTAGE(V) | CAPACITY(AH) | DIMENSION(MM) |
| 38B20 L/R | 12 | 36 | 193*128*198*219 |
| 46B24 L/R | 12 | 42 | 236*128*201*222 |
| 55B24 L/R | 12 | 45 | 236*128*201*222 |
| 58500 R | 12 | 48 | 234*177*159*180 |
| 55D23R | 12 | 55 | 221*173*200*221 |
| 75D23 L | 12 | 60 | 238*173*201*220 |
| 55D26 L/R | 12 | 60 | 256*175*191*212 |
| 80D26 L/R | 12 | 65 | 256*175*191*212 |
| L2-400 | 12 | 58 | 241*175*190*190 |
| 54017 | 12 | 45 | 205*173*188*188 |
| 78690 | 12 | 65 | 263*181*185*185 |
| G31 | 12 | 110 | 330*175*225*240 |
| 56618 | 12 | 72 | 274*175*188*188 |
| 55415 | 12 | 66 | 283*172*172*172 |
| 95D31 L/R | 12 | 80 | 300*173*198*219 |
| 95D31 L/R | 12 | 75 | 300*173*198*219 |
