| Prod Model: |
autonomous battery gps tracker TK104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Main Application: |
GPS Tracker for Vehicle, Trucks, Containers |
| Sos Button: |
Yes |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| Autonomous Battery: |
3.7V 6000mA/H Polymer Battery |
| Charger: |
One AC Charger, One Car Wire Charger |
| Cut Off Engine: |
Yes |
| Tracking Map: |
Real Time Google Maps |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit Data |
| Port Number: |
20 |
| Model: |
Car GPS Tracker Tk104 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

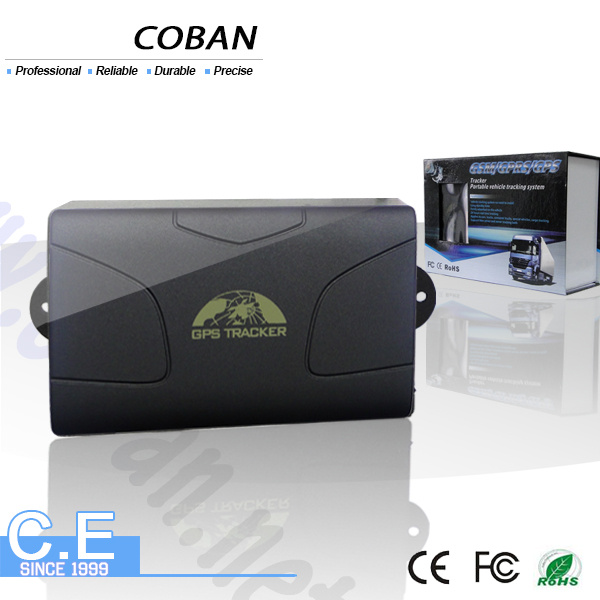

Autonomous Battery Hiden GPS Tracker with Long Standby for container trailer Advantages of this Tk104 gps tracker :1.Waterproof ; Power magnets ;
2.built-in GSM/GPS antenna.
3.6000mah battery ,standby 100 days.
4.Geo-fence , movement alarm ;
5.overspeed alarm , low battery alarm .
6.
Stop and resume oil/engine remotely by SMS.7.Sleep mode to save battery.
8. GPS+LBS double tracking .
9. Voice-monitoring function .
10. Authorized number added and deleted function
11. SMS tracking by calling with google map link .
12. Get Absolute street address by sms
14.Optional web server : www.gpstrackerxy.com
Technology parameter:*Dimension: 83mm*54mm*26mm, 125g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
Package contents:1 x GPS TRACKER
1 x GPS Antenna
1 x GSM Antenna
1 x AC Adapter
1 x Lighter adapter
1 x Harness
1 x Manual
1 x waterproof bag.
Online web platform : www.gpstrackerxy.com ( demo ID:demo , password :8888 ) Warranty 1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Specification:
Content |
specifications |
DIM. |
94mm*60mm*38mm |
Weight |
300g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status |
45s |
Hot status |
1s |
EXT. power |
DC 12 V -24V |
Operating Current |
Sleep Current |
1.8mA |
Deep sleep |
0.6mA |
GSM operating Current |
68mA±3mA |
GPRS Current(data transfer) |
82mA±10mA |
Battery |
3.7V 6000mA/h Polymer battery |
Charge current |
1A±0.2A |
Charge time |
7h |
Standby time |
Sleep |
4 months |
Deep sleep |
12 months |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |
