Shenzhen UPSEN Electronic Co., Ltd. >> AVR Offline UPS No Break UPS Power Supply for Television

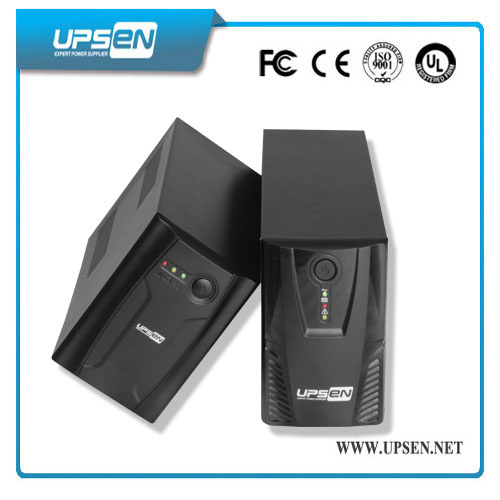

AVR Offline UPS No Break UPS Power Supply for Television

AVR Offline UPS No Break UPS Power Supply for Television
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Future Star Seires 400-1500Va
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: ≤35dB
Network Protection: RJ45/11 Surge Protector (Optional)
Output Frequency Range: Synch with Mains Input
Transfer Time: ≤8ms
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

AVR Offline UPS No Break UPS Power Supply For Television (1ph in/1ph out)

Key Features
1:Overload/ Over charge/ Short-circuit protection
4:Excellent microprocessor control guarantees high reliablility
3:Advanced automatic constant charging circuit, prolongs battery life.
2:Turn on by DC/battery, anytime and anywhere to facilitate your use.
5:Special protection against AC/DC overload and short-circuit protection
6:Adopt the full bridge inverter technology, the system more stable and reliable
7:Built in DC start function enables UPS to be started up without AC power supply.

Application
UPSEN Future Star AVR UPS mainly used for computer, POS,Computer Peripherals etc.

Technical Specification
ModelF400F500/650F700   F800F1000F1200F1500F2000F3000
Power factor0.6
Load typePersonal computer and other PC peripheral devices
Mains voltage range(140~290) ±5Vac
Mains frequency range(40~70)±1Hz
Output voltage range(Line mode)220Vac/230Vac±10%(Sine wave)
Output frequency range (Line mode)Synch with mains input
Output voltage range (battery mode)220Vac/230Vac±5%(Square wave)
Output frequency range (battery mode)(50/60)±1Hz(frequency self-adapt system)
Battery No-load protectionAuto protection. The UPS auto shutdown after 2min no load detected
Transfer time≤8ms
Battery backup time*>6Min(half load)
Battery protectionAuto protection. The UPS auto shutdown when battery voltage is low or high.
Battery charging time8 hours to 90%
Short circuit protectionAuto protection. Output shuts off and the buzzer beeps continuously
Overload protection110%≤ 120%, buzzer beeps; load percentage >120%, output shuts off, buzzer beeps continuously.
Operating temperature0ºC~40ºC
Storage temperature-15ºC~45ºC
Relative humidity0%~90%(No condensation water)
Noise≤35dB(1m from front panel)
Communication interfaceIntelligent RS-232/USB(Optional)
Network protectionRJ45/11 surge protector (Optional)
Size/L×W×H(mm)230*90*145291*90*145330*90*145340x122x190 525*248*355
Net weight44.555.28.49.410--
*Specifications change without further notice





Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
