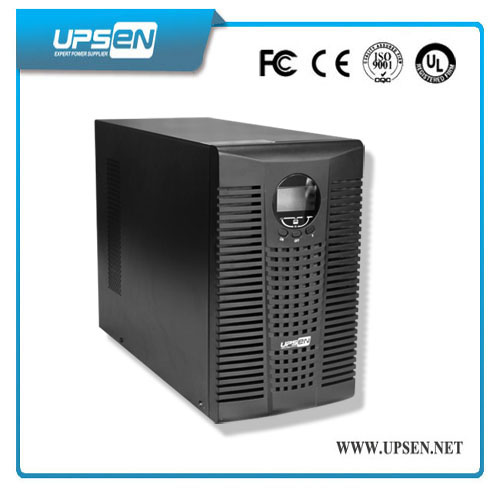

AVR UPS with DSP Tech and Pure Sine Wave Output (Queen Star Series 1-3Kva)

AVR UPS with DSP Tech and Pure Sine Wave Output (Queen Star Series 1-3Kva)
Price: US $ 60/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 1-3Kva
Markets: North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black & White
Output Power Factor: 0.8
Display: Digital LCD Display
Phase: Single Phase
Type: On-line
Protection: Over Load/Current/Voltage, Short Circuit etc
Brand: Upsen or OEM

Product Description

AVR UPS with DSP tech and pure sine wave output
1:UPS, AVR UPS, DSP UPS, Sine wave ups, Pure sine wave UPS, Online UPS, LCD UPS, quality UPS, China UPS, Cheap UPS, APC UPS, Delta UPS, Emerson UPS, Eaton UPS
2:UPS with AVR (Auto Voltage Regulation) Function
3:AVR UPS with long backup time and digital lcd display
4:AVR UPS with True Double Conversion Online tech
5:UPS with Advanced MCU microprocessor control technology

UPS Application
Queen Star Series UPS 1-3KVA is specially designed for servers, data-center critical network devices,
Sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

UPS Key Features
1: Large Blue LCD digital display for UPS status and operation
2: Pure Sine Wave, Double Conversion Online
3: Wide input voltage range, Zero transfer time
4: Advanced MCU microprocessor control technology
5: Voltage regulator circuit
6: Comprehensive Electrical isolation and bypass protection
7: Input PF correction, reduce the harm of harmonic wave to the power grid, convenient to connect with mini generator.
8: Input N/L Inspection function and date line protection
9: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
10: Humanization bypass output, can be adjustable.
11: Smart RS232 communication with monitoring software
12: Protection against over voltage, over load, over current, over charge and so on.

MODELQ1KQ1KLQ2KQ2KLQ3KQ3KL
Rated capacity1KVA/800W2KVA/1600W3KVA/2400W
InputVoltage                                  115 - 300Vac
  Frequency                               40-60Hz / 50-70Hz
Power factor                                         0.99
OutputVoltage                               220/230Vac(1±2%)
  FrequencySynchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
On-load factor                                         0.8
Overload rating                                125% overload,1min
BatteryTypeValve-control lead acid maintenance-free battery
Back up time> 11min        (half load)External>11min        (half load)External>11min        (half load)External
Rated voltage36V72V96V
Transfer time                                          0
Operating environmentHumidity: 20%-90%, Temperature:0 o C-40 o C
Size (WxDxH)mm350 x 144 x 229424 x 190 x 328424 x 190 x 328
Net Weight(kg)11.55.722.21026.310
*Specification is subject to change without further notice





Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
