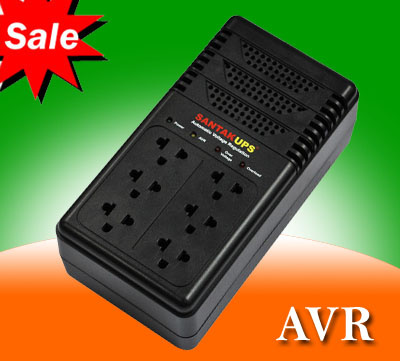

AVR Voltage Regulator / Stabilizer

Name: AVR Voltage Regulator / Stabilizer
Brand: all-electronics-online.com
SKU: 642760125
Availability: InStock
Rating: 4.4 (140 reviews)

Price:	US $ 9.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M1200VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coloar:	Black, Yellow, Grey, Green
Size:	Compatiable
Warranty:	12months
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency

Product Description

A: Features & Benefits:

1. Automatic Voltage Regulation
2. Automatically changes and corrects the output voltage, carefully following the input voltage.
3. Visual indicators using 4 LEDS (Power/AVR/Surge/Overload)
4. Provides the user with the AVR functions status
5. Protects telephone, Internet, DSL, and Fax/Modem
120VAC or 220VAC (depending on the model)
6.6 NEMA standard outlets/ 4 SCHUKO standard outlets

B: Typical Application

Home PCs
Workstations
Audio/Video Equipment
TVs
DVD Players
Sound systems
Entertainment Systems
Other electronic equipment
Small electro domestics

Model		M-600	M-1000	M-1200
Capacity		600VA/360W	1000VA/600W	1200VA/700W
AC Input	Normal Voltage	110/115/120VAC or 220/230/240VAC
	Input Voltage Range	80VAC ~ 144VAC or 161VAC ~ 288VAC (-30%, +25%)
	Phase	1 Phase 2 Wires
	Frequency	50Hz or 60Hz
AC Output	Output Voltage Range	103VAC ~ 127VAC or 207VAC ~ 253VAC (+/-10%)
	Frequency	50Hz or 60Hz
Outlets	AVR/Surge only	6 Nema or 4 Schuko / 5-15R
Protection	Network Surge Suppression	RJ-11
	Overload	Manual Reset Circuit Switch
	Short Circuit	Manual Reset Circuit Switch
LED	Power On/Off	Green LED
	Output Cut Off	Red LED
Environment	Operating Temperature	0 ~ 40° C
	Relative Humidity	0 ~ 95%, non-condensing
	Audible Noise	< 40dB at 1M
Physical	Dimension(DWH)	22011088mm
	Net Weight	1.8Kgs	2.0Kgs	2.3Kgs
Design, Manufacture, Services		ISO 9001-2000
Warranty		1 year

Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.

We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
