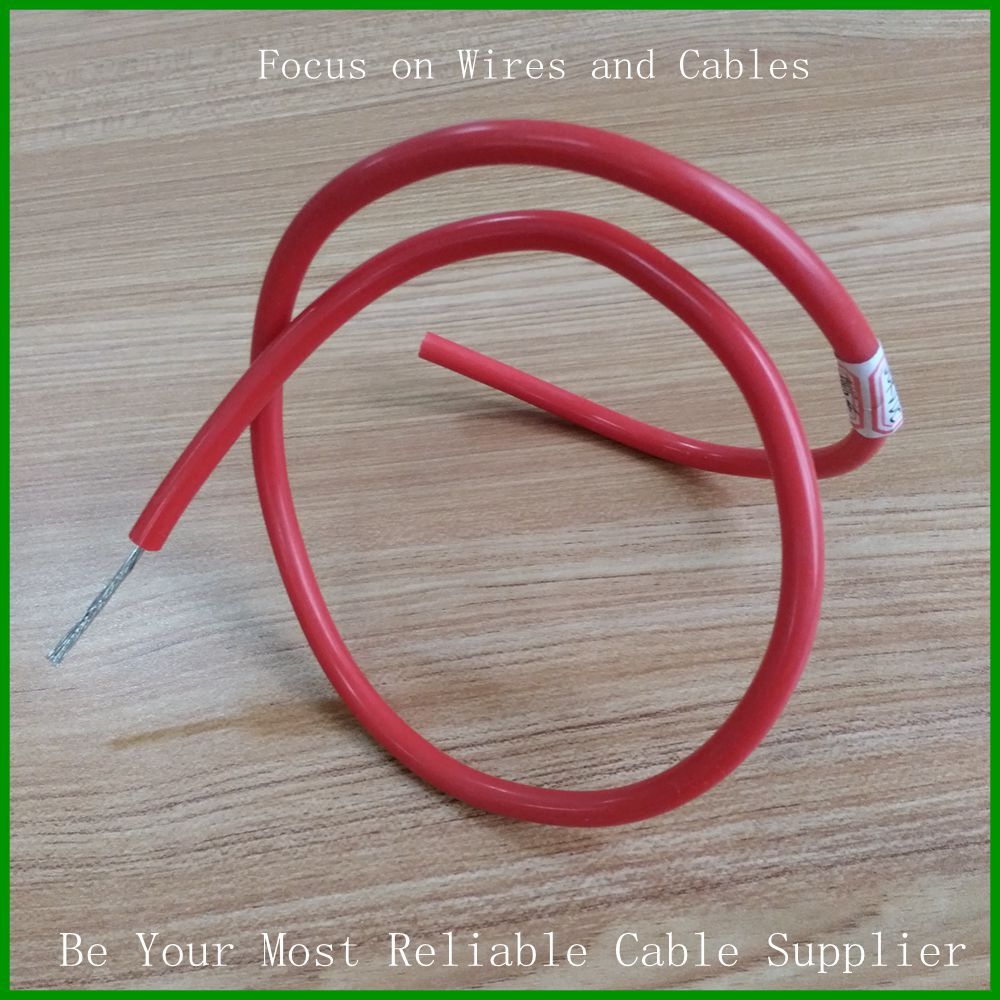

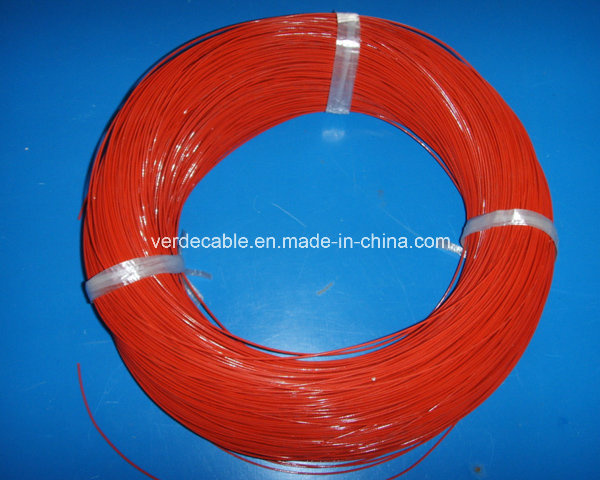

AWG22 High Temperature Resistant Cable Silicone Wire

Name: AWG22 High Temperature Resistant Cable Silicone Wire
Brand: all-electronics-online.com
SKU: 758665955
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 0.2-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	heating wire
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Size:	0.25mm, 0.5mm, 0.75mm.....
AWG Size:	AWG24 22............16
Produceing Experience:	15 Years
OEM:	Yes
Customized:	Yes
Type:	Insulated
Conductor Type:	Stranded
Application:	Welding Usage
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	VDE
Sheath Material:	Silicone Rubber

Product Description

High Temperature Resistant Silicone Wire

Temperature Ratings: -60ºC~+200ºC
Voltage:300/500V
Conductor: Tinned Copper, Nickel Copper
Insulation: Silicone Rubber

Conductor			Insulation Size			Max. Conductor Resistance (at 20ºC) (Ω/km)	Ref. Weight (kg/km)
Size	Nominal Area (mm2)	Conductor Structure (No./mm)	Nominal Thickness (mm)	Nominal Diameter (mm)	Max. Diameter (mm)	Max. Conductor Resistance (at 20ºC) (Ω/km)	Ref. Weight (kg/km)
26	0.128	7/0.16	0.78	2.1	2.3	143.0	4.6
24	0.205	7/0.20	0.78	2.2	2.4	92.0	5.7
22	0.324	7/0.26	0.78	2.4	2.6	56.8	8.3
20	0.519	7/0.32	0.78	2.5	2.7	40.1	10.4
18	0.823	7/0.40	0.78	2.8	3.0	23.0	14.6
16	1.31	7/0.50	0.78	3.1	3.3	14.6	20
14	2.08	41/0.254	0.78	3.6	3.8	9.9	27
12	3.31	19/0.50	0.78	4.1	4.3	5.4	36
24	0.2	1/0.50 12/0.15	0.78	2.2	2.4	95	5.9
22	0.3	1/0.62 17/0.15	0.78	2.3	2.5	71.2	7.2
20	0.5	1/0.80 28/0.15	0.78	2.5	2.7	40.1	10.1
18	0.75	1/1.0 24/0.20	0.78	2.8	3.0	26.7

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
