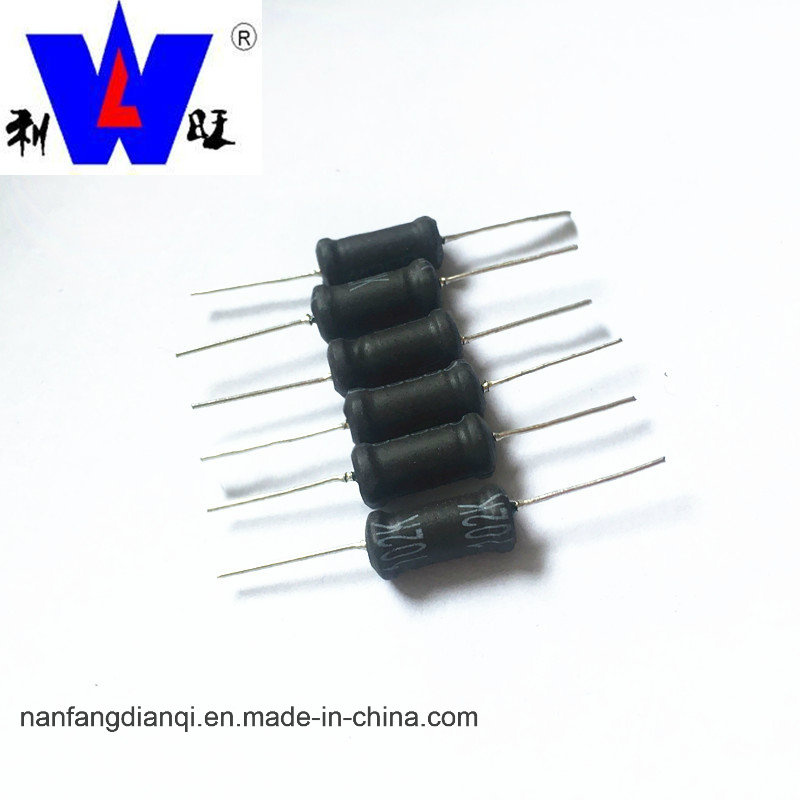

Axial Leaded Ferrite Core Power Inductor 3.5mh

Name: Axial Leaded Ferrite Core Power Inductor 3.5mh
Brand: all-electronics-online.com
SKU: 824771005
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	US $ 0.027-0.028/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGA
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Safety Certification:	CQC03003095~3097
Size:	Axial
Wire:	Enamelled Wire
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

Specifications
1.Filter Inductor
2.Inductance:Measured at 1Khz with no DC current
3.Solid soft copper wire
4.Pre-tinned lead,polyolefin tube
1.High Inductors & inductors
*Size:0306~1016
*Inductance:1UH~47000UH
*Tolerance:+/-10%
*Short Lead time

2.Features
   a. Printed circuit mounting (axial leads)
   b. Protected by polyolefin sleeve
   c. Pre-tinned leads
   d. High saturation bobbin used, allowing high inductance with low DC resistance

1.Shielded and unshielded types available
2. Ferrite bobbin core, low core loss at frequency
3. Size: 3*6mm;4*6mm;6*8mm;8*10mm;10*12mm; 10*16mm ect.
4. Inductance Range:1uH ~47000uH
5.Winding covered with shrinkable tube
6. Magnetic shielding,used in high-density mounting configurations
7. Excellent Q-frequency characteristics
8. High withstanding voltage and insulation resistance
9. Operating temperature:-20°c to 105°c(include coil heat)
10. Storage conditions:-20 °c to 85°c(do not expose to direct sunlight(JIS C805))

3.Electrical
   Inductance: Measured at 1Khz with no DC current
   Current Rating: Maximum continuous operating current based on a 50°C rise
   Dielectric Rating: 2500 VRMS between winding and outer circumference to within 0.25of the insulating sleeve edge
   Temperature Range: -55°C to +105°C

Our features

(1)Fastest Lead Time

(2)Low Minimum Order

(3) Regular purchase with competitive prices and reliable supply

(4)Warranty is A Least 8 Months

(5)New Original & PB Free

[Payment Information]

1. T/T (Wire Transfer)

2. WESTERN UNION

3. L/C

If you find any interest in our products,please feel free to contact us !

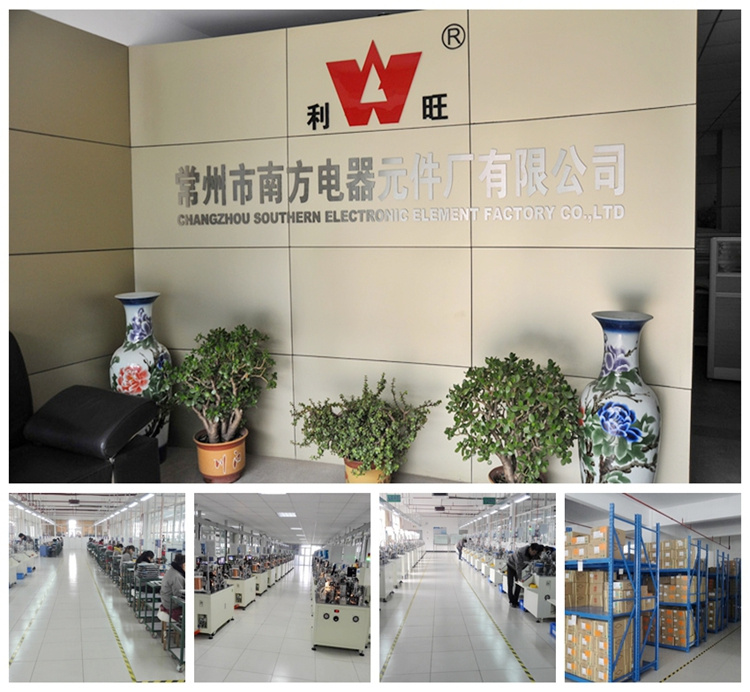

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
