Az-7110 Professional Manufacturer Horizontal Micro Switch

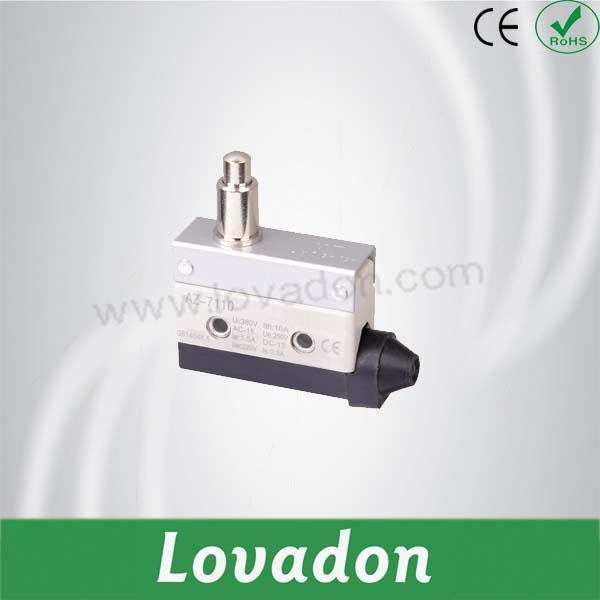

Name: Az-7110 Professional Manufacturer Horizontal Micro Switch
Brand: all-electronics-online.com
SKU: 753410515
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ-7110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Az-7 Series Horizontal Limit Switch
Pressing Type:	Spring Roller
Size:	Normal Size
Breaking Capacity:	General Type
Breaking Form:	Single Type
Protection:	Waterproof, Dustproof
Application:	The Floating Ball Equipment, Medical Equipment, Bu
Brand:	Lovadon

Product Description

* Virous of actuators, the operation position is adjustable.
* Outer shell covered with intensive plastic, water-proof and oil-proof. The mechanical strenth is better than TM type of micro swith, bear hitting.

<

Models	AZ-7100	AZ-7110	AZ-7310	AZ-7311	AZ-7312	AZ-7120
OF Max.	600g	600g	600g	600g	600g	150g
RF Min.	100g	100g	100g	100g	100g	40g
PT Max.	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	13.5mm
OT Min.	0.8mm	5.0mm	6.0mm	6.0mm	6.0mm	4.0mm
MD Max.	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	3.2mm
OP mm	30.5+-0.8	44+-1.2	21.8+-1.2	33.3+-1.2	33.3+-1.2	25+-1
FP						35mm
Weight kg	0.07	0.085	0.085	0.09	0.09	0.054

Models	AZ-7140	AZ-7121	AZ-7141	AZ-7124	AZ-7144	AZ-7166
OF Max.	220g	180g	240g	200g	280g	120g
RF Min.	60g	50g	80g	60g	100g
PT Max.	8.5mm	11.0mm	6.5mm	11mm	6.5mm	250mm
OT Min.	2.5mm	3.0mm	2.0mm	3.0mm	2.0mm	11mm
MD Max.	2.0mm	2.4mm	1.5mm	2.4mm	1.5mm
OP mm	25+-1	40+-1	40+-1	50+-1.2	50+-1.2
FP	32mm		46mm		56mm
Weight kg	0.054	0.057	0.056	0.062	0.061	0.083

Characteristics Of Contact Module
Rated operating characteristics	Inductive load:~AC15,B300(Ue=240V,le=1.5A) --DC-13,R300(Ue=250V,Ie=0.1A) Resistive load:250V,5A
Rated insulation voltage	Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V,comply with UL508,CSA C22-2n°14
Insulation resistance	100MΩ above (megohmmeter of 500VDC)
Operating frequency	Mechanical: maximum 240 times/min.; Electrical:maximum 20 times/min.
Electrical life	500,000 times
Contact resistance	Less than 15MΩ

Environmental Characteristics
Normative reference	Product	IEC60947-5-1,EN60947-5-1, UL508,CSAC22-2N°14
Normative reference	Components	IEC60204-1,EN60204-1
Ambient temperature	Operation	-10~+80ºC
Ambient temperature	Storage	-40~+80ºC
Vibration resistance	Comply with IEC60068-2-6	10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms (in state of FP, TTP)
Shock resistance	Comply with IEC60068-2-27	Maximum 300m/s^2,misoperation within 1ms(in state of FP,TTP)
Degree of protection		IP54
Mechanical life		10,000,000 times
Operation speed		0.01mm to 1m/sec(lock plug type)
