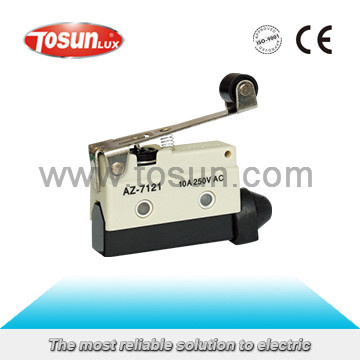

Az Series Waterproof Micro Switch

Name: Az Series Waterproof Micro Switch
Brand: all-electronics-online.com
SKU: 762101705
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 1-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ-7121
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Degree:	IP65
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Normal Size
Breaking Capacity:	General Type
Breaking Form:	Single Type

Product Description

FEATURES:
1. Virous of actuators, the operation position is adjustable. (such as TZ-7121).
2. Outer shell covered with intensive plastic, water-proof and oil-proof.The mechanical strength is better than TM type of micro swith, bear hitting

Rated Voltage (V)	Noninductive Load (A)					Inductive Load (A)
	Resistance Load		Lamp Load			Inductive Load		Motor Load
	NC	NO	NC	NO		NC	NO	NC	NO
125VAC 250VAC 480VAC	10 10 3		3 2.5 1.5		1.5 1.25 0.75	10 10 2.5		5 3 1.5	2.5 1.5 0.75
8VDC 14VDC 30VDC 125VDC 250VDC	10 10 8 0.5 0.25		3 3 3 0.4 0.2		1.5 1.5 1.5 0.4 0.2	6 6 6 0.05 0.03		6 6 5 0.05 0.03	5 5 2.5 0.05 0.03

NOTES:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/min.
Operating frequency	Electrical: 30 operations/min.
Contact resistance	15mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration frequency	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5°C to +65°C
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above (under rated OT) Electrical: 500,000 operations above
Weight	About 60g
Degree of protection	IP65
