(B100 Series) Multi-Range Closed Loop Mode Hall Effect Current Sensor for Switched Mode Power Supplies (SMPS)

Name: (B100 Series) Multi-Range Closed Loop Mode Hall Effect Current Sensor for Switched Mode Power Supplies (SMPS)
Brand: all-electronics-online.com
SKU: 751598635
Availability: InStock
Rating: 4.9 (40 reviews)

Price:	US $ 1-8.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	B100 Series
Supply Voltage:	+5V
Power Consumption:	Less Than 20+ Ipx(Np/Ns) Ma
Offset Curren:	+-0.2 Ma
Linearity:	Less Than 0.1
Di/Dt:	More Than 50
Bandwidth:	@ -1db DC~200kHz

Product Description

B100 series multi-range current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	B100-6A	B100-15A	B100-25A	B100-50A	Unit
Rated current(Ipn)	6	15	25	50	A
Measure range(Ip)	19.2	48	80	150	A
Turns ratio(Np/Ns)	1:960	1:1200	1:1000	1:1000	T
Internal resister	100±0.1%	50±0.1%	25±0.1%	12.5±0.1%	Ω
Rated output	@Ip=±Ipn ±0.625±0.5%				V
Supply voltage	+5V				V
Power Consumption	≤20+ IpX(Np/Ns)				mA
Zero voltage	@Ip=0 +2.5±0.5%				V
Zero voltage drift	@ -40~+85ºC ≤±0.5				mV /ºC
Linearity	@Ip=0-±Ipn ≤0.1				%FS
Total precision	≤±0.7				%
di/dt accurately followed	>50				A /μS
Response time	@100A/μ S,10%-90% ≤500				ns
Galvanic isolation	@ 50HZ,AC,1min 2.5				KV
Bandwidth	@ -1db DC~200				KHZ

Applications

·AC variable speed drives
·Static converters for DC motor drives
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Switched Mode Power Supplies (SMPS)
·Power supplies for welding applications

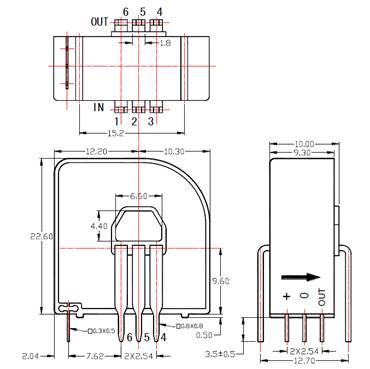

Mechanical dimension(for reference only)

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

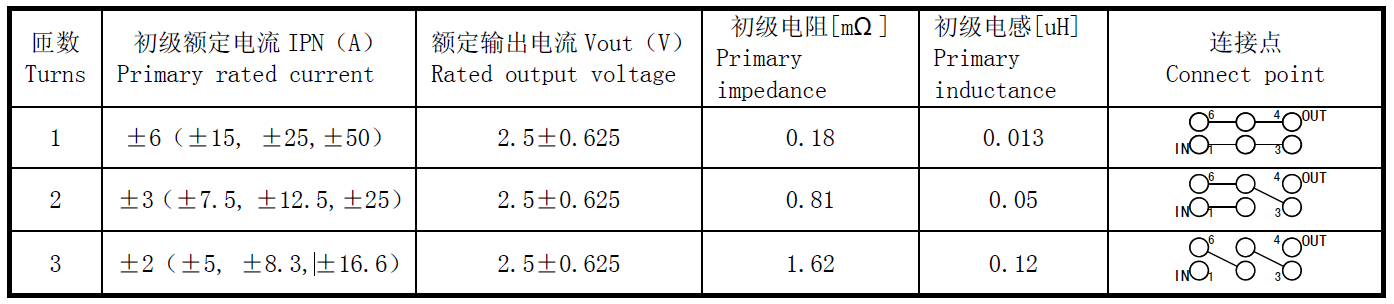

Pin connections

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	10	g

Characteristics chart
