(B203 Series) Closed Loop Mode Hall Effect Current Sensor with CE
| Price: |
US $ 6.8-8.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
B203 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
B203 Series |
| Supply Voltage: |
+-12V, +-15V |
| Power Consumption: |
Less Than 20+ Ipx(Np/Ns) Ma |
| Turns Ratio(Np/Ns): |
Details Below or Contact Us for Inquiry |
| Linearity: |
Less Than 0.1 |
| Galvanic Isolation: |
@ 50Hz,AC,1min 2.5kv |
| Bandwidth: |
@ -1db DC~100kHz |
| Courier: |
DHL, TNT, FedEx |
Product Description

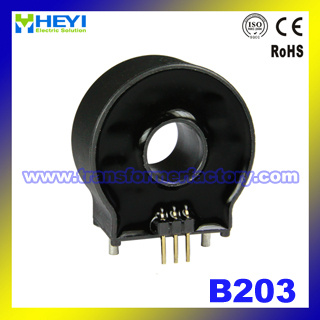

B203 series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.| Electrical data (Ta=25ºC±5ºC) |
| Type | B203-25A | B203-50A | B203-75A | B203-100A | Unit |
| Rated current(Ipn) | 25 | 50 | 75 | 100 | A |
| Measure range(Ip) | 37.5 | 75 | 112.5 | 150 | A |
| Turns ratio(Np/Ns) | 1:1000 | 1:2000 | 1:2000 | 1:2000 | T |
| Measure resister | 0~495 | 0~470 | 0~290 | 0~205 | Ω |
| Rated output | 25 | 25 | 37.5 | 50 | mA |
| Coil resister | 35 | 60 | 60 | 60 | Ω |
| Supply voltage | ±12,±15 | V |
| Power Consumption | ≤20+ IpX(Np/Ns) | mA |
| Offset current | @Ip=0 ±0.02 | mA |
| Offset drift | @ -40~+85ºC ≤±0.005 | mA |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Total precision | ≤±0.7 | % |
| di/dt accurately followed | >50 | A /μS |
| Response time | @100A/μ S,10%-90% ≤1 | μS |
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV |
| Bandwidth | @ -1db DC~100 | KHZ |
·AC variable speed drives ·Static converters for DC motor drives ·Battery supplied applications ·Uninterruptible Power Supplies (UPS) ·Switched Mode Power Supplies (SMPS) ·Power supplies for welding applications| Electrical data (Ta=25ºC±5ºC) |
| Type | B203-25A | B203-50A | B203-75A | B203-100A | Unit |
| Rated current(Ipn) | 25 | 50 | 75 | 100 | A |
| Measure range(Ip) | 37.5 | 75 | 112.5 | 150 | A |
| Turns ratio(Np/Ns) | 1:1000 | 1:2000 | 1:2000 | 1:2000 | T |
| Measure resister | 0~495 | 0~470 | 0~290 | 0~205 | Ω |
| Rated output | 25 | 25 | 37.5 | 50 | mA |
| Coil resister | 35 | 60 | 60 | 60 | Ω |
| Supply voltage | ±12,±15 | V |
| Power Consumption | ≤20+ IpX(Np/Ns) | mA |
| Offset current | @Ip=0 ±0.02 | mA |
| Offset drift | @ -40~+85ºC ≤±0.005 | mA |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Total precision | ≤±0.7 | % |
| di/dt accurately followed | >50 | A /μS |
| Response time | @100A/μ S,10%-90% ≤1 | μS |
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV |
| Bandwidth | @ -1db DC~100 | KHZ |
·AC variable speed drives ·Static converters for DC motor drives ·Battery supplied applications ·Uninterruptible Power Supplies (UPS) ·Switched Mode Power Supplies (SMPS) ·Power supplies for welding applicationsRemarks:1. All dimensions are in mm.2. General tolerance ±1mm.3. Elucidation: 1:+15V 2: -15V 3:I0UT 1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)2. Custom design in the different rated input current and the output current are available.·UL94-V0.·EN60947-1:2004·IEC60950-1:2001·EN50178:1998·SJ 20790-2000
| Value | Unit |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature(TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 25 | g |
