(B3) Closed Loop High Accuracy Hall Effect Current Sensor for Variable Speed Drives

(B3) Closed Loop High Accuracy Hall Effect Current Sensor for Variable Speed Drives
Price: US $ 9.12-11.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: B3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

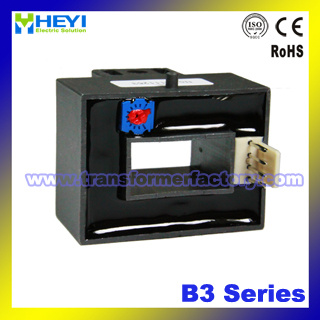

B3 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC )

TypeB3-50AB3-100AB3-200AB3-300AUnit
Rated current(Ipn)±50±100±200±300A
Measure range(Ip)0- ±750- ±1500- ±3000-±400A
Turns ratio(Np/Ns)1:10001:20001:20001:3000T
Measure resister
with±15V
@ ±50Amax
0(min)500(max)
@ ±100Amax
0(min)245(max)
@ ±200Amax
0(min)75(max)
@ ±300Amax
0(min)52(max)
Ω
@ ±75Amax
0(min)245(max)
@ ±150Amax
0(min)118(max)
@ ±300Amax
0(min)33(max)
@ ±400Amax
0(min)20(max)
Ω
Coil resister10424275Ω
Rated output5050100100mA
Supply voltage±12, ±15, ±18V
Power Consumption≤20+IpX(Np/Ns)mA
Offset current@Ip=0 ±0.15mA
Offset drift@ -40~+85ºC ≤±0.4mA
Linearity@Ip=0-±Ipn ≤0.1%FS
Response time@50A/μS, 10%-90% ≤1μS
Galvanic isolation@ 50HZ,AC,1min 3KV
di/dt>100A/us
Bandwidth@ -1dB 0~150KHZ

Applications
·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC

Directions for use

1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2.Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date


ValueUnit
Operating temperature(TA)-40 to +85ºC
Storage temperature(TS)-40 to +125ºC
Mass(approx) (M)40g
