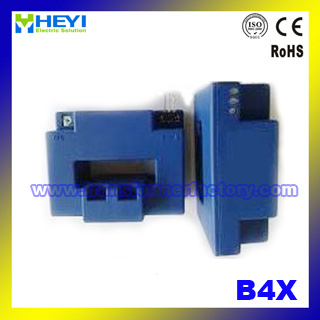

(B4X) Closed Loop Mode Hall Effect Current Sensor for Welding Machine

Name: (B4X) Closed Loop Mode Hall Effect Current Sensor for Welding Machine
Brand: all-electronics-online.com
SKU: 751475655
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 22-24.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B4X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

B4X series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	B4X-200A	B4X-300A	B4X-400A	B4X-500A	Unit
Rated current(Ipn)	±200	±300	±400	±500	A
Measure range(Ip)	0-±300	0-±450	0-±600	0-±750	A
Turns ratio(Np/Ns)	1:2000	1:3000	1:4000	1:5000	T
Measure resister with±12V	@±200Amax 0(min)88(max)	@±300Amax 0(min)76(max)	@±400Amax 0(min)63(max)	@±500Amax 0(min)46(max)	Ω
Measure resister with±12V	@±300Amax 0(min)50(max)	@±450Amax 0(min)38(max)	@±600Amax 0(min)25(max)	@±750Amax 0(min)8 (max)	Ω
Measure resister with±15V	@±200Amax 0(min)117(max)	@±300Amax 0(min)105(max)	@±400Amax 0(min)92(max)	@±500Amax 0(min)75(max)	Ω
Measure resister with±15V	@±300Amax 0(min)69(max)	@±450Amax 0(min)57(max)	@±600Amax 0(min)44(max)	@±750Amax 0(min)27(max)	Ω
Coil resister	19	31	44	61	Ω
Rated output	@Ip=±Ipn ±100±1%				mA
Supply voltage	±12,±15,±18				V
Power Consumption	≤20+IpX(Np/Ns)				mA
Offset current	@Ip=0 ±0.2				mA
Offset drift	@ -40~+85ºC ≤±0.5				mA
Linearity	@Ip=0-±Ipn ≤0.1				%FS
Response time	@50A/μS, 10%-90% ≤1				μS
Galvanic isolation	@ 50HZ,AC,1min 6				KV
di/dt	>100				A/us
Bandwidth	@ -1dB 0~150				KHZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
· Uninterruptible Power Supplies (UPS)
· Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC

Directions for use

1.When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	162	g
