| Prod Model: |
TX5802+RC306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New and Original |
| Delivery: |
in Stock |
| Support: |
2.4GHz Helicopter |
| Des.: |
2.4GHz 6CH Helicopter |
| Function: |
Transmit and Receive Video and Audio |
| Use: |
RC Model/Universal |
| Unique Function: |
32CH |
| Easily Operation: |
Pushbutton, Plug and Display |
| Quality: |
High |
| Price: |
Factory Price |
Product Description

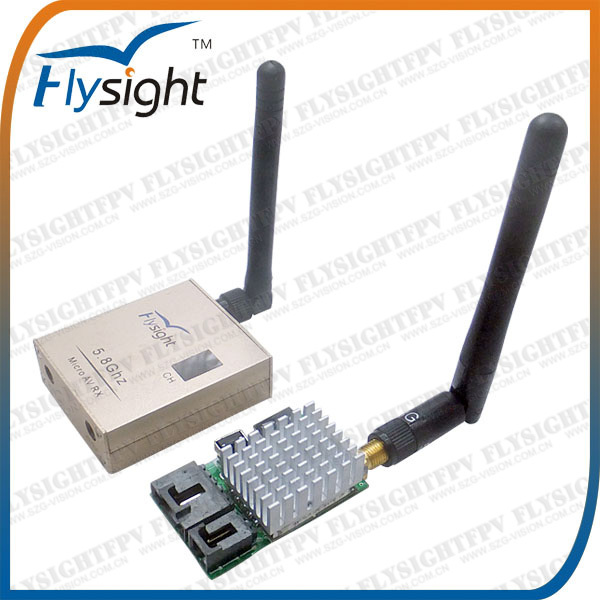

5.8GHz RC Transmitter Receiver For 2.4Ghz 6ch Helicopter
Unique features:
1. With channel button to change channels easily
2. Channel memory function for power-off
3. Four groups frequencies can be offered:
4. Very light and ultra mini size,The mini but powerful 5.8G 200mw transmitter would make your fly to 1-2 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.
5. 32channels can be supported abusolutely.
Specification:
Transmitter(TX5802):
Transmitter frequency 5645-5945MHz;8CH
Transmitting Power 200mW/23dBm
Transmitting distance >2000m(open area)
Frequency control built-in frequency and phase lock loop
AV input analog AV signal input
ANT connector SMA(inside the needle) RPSMA as optional
power supply 6.5-15 V
Current supply 200mA
Size 57*27.2*12mm
Net weight 16g(no cable and antenna)
Remark: The transmitter's power input is ranging from 7-12V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
Receiver(RC306):
Receiving frequency 5665-5945MHz;8CH
Receiving sensitivity -90dBm
Frequency control built-in frequency and phase lock loop
Double lines AV output analog AV signal output
Antenna connector SMA(Inside the needle)
Power supply voltage 4.6-16V
Supply current 150mA
Dimension 55*40*15mm(aluminium alloy extrusion profiles)
:
Remark: The receiver's power input is ranging from 4.6-16V,dual AV output is supported
Note:the av cable uses 3.5mm plug on the receiver RC306
