Name: B736 Truck Scale Pancake Load Cell
Brand: all-electronics-online.com
SKU: 827807375
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 15-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B736
Capacity:	0.5-60t
Pattern:	Load Button
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauges
Certification:	SGS

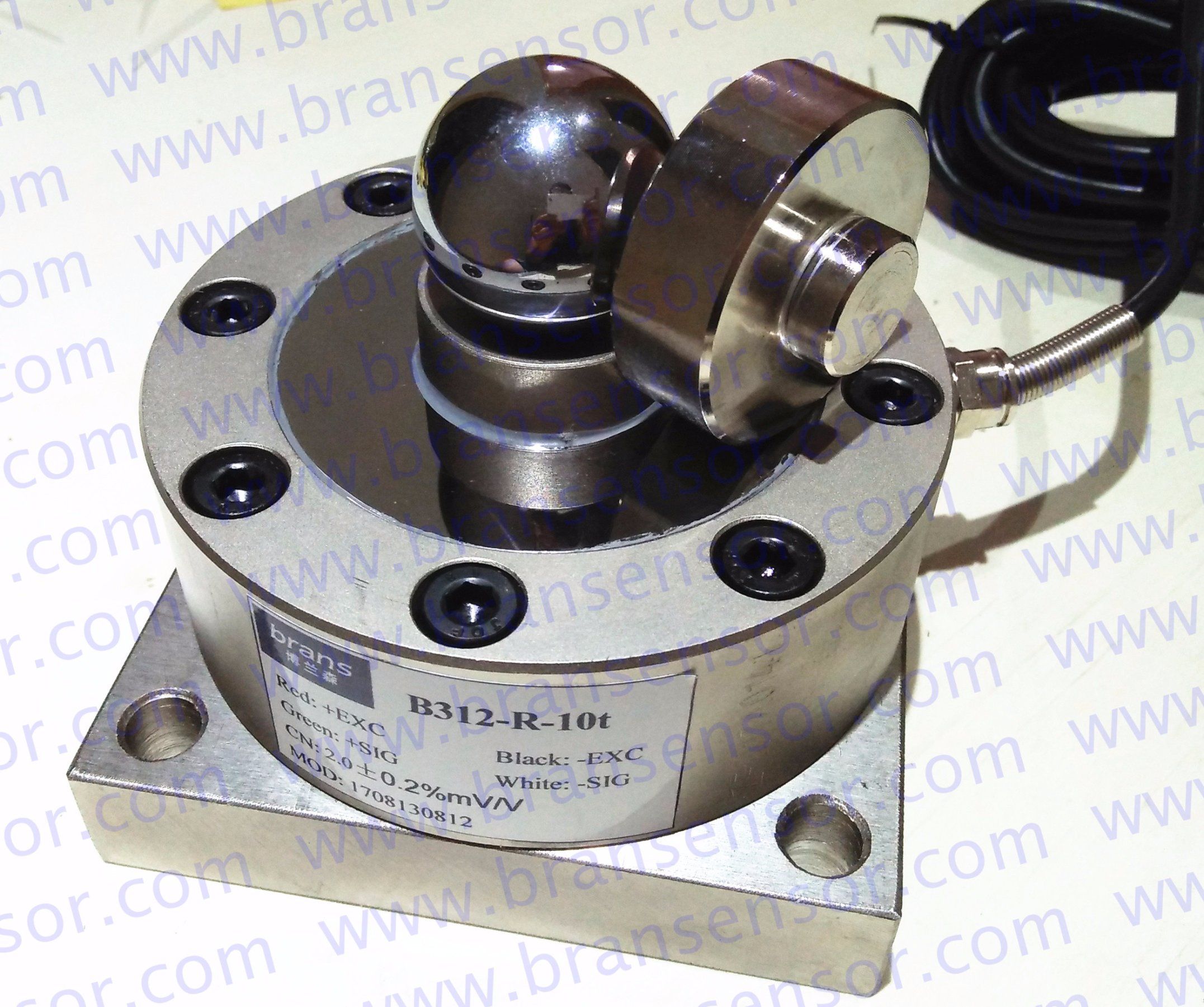

Product Description

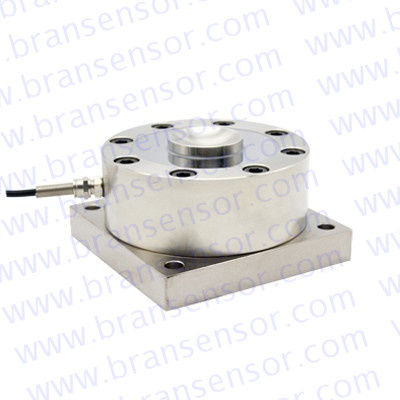

Brans's all-welded, stainless steel, low profile, pancake load cells feature either bonded foil or foil strain gauge technology measuring loads from 0.5t up to 60t with accuracies from 0.10 % up to 0.03 %. This wheel type load cells choose from compression only or tension/compression models to fit your particular application. Fatigue-rated models are available that are designed for applications, such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. Select models are also available as intrinsically safe options for use in hazardous locations. Please call us to discuss if you need special modifications or a custom design.

Datasheet

Number	Specifications	/Technique
1	Capacity	0.5t,1t,2t,3t,5t,10t,20t,30t,40t,50t,60t
2	Rated output	3.0±10%mV/V
3	Zero balance	±1% F.S.
4	Non-linearity	0.03%F.S.
5	Hysteresis	0.03%F.S.
6	Repeatability	0.03%F.S.
7	Creep(30min)	0.03%F.S.
8	Temp.effect on output	0.002%F.S./10ºC
9	Temp.effect on zero	0.002%F.S./10ºC
10	Input impedance	780±10Ω
11	Output impedance	700±5Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~40ºC
16	Operation temp range	-10~70ºC
17	Safe overload	150%F.S.
18	Ultimate overload	300%F.S.
19	Cable size	φ5×4000mm
20	IP Class	IP67

Features

Low profile, pancake style, wheel type

All-welded, stainless steel construction and double diaphragm design

Accuracy ranges from 0.10 % up to 0.03 % (for ultra precision models)

Load ranges from 1t to 30t

Low sensitivity to extraneous loads

Fatigue-rated and intrinsically safe options are available

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
