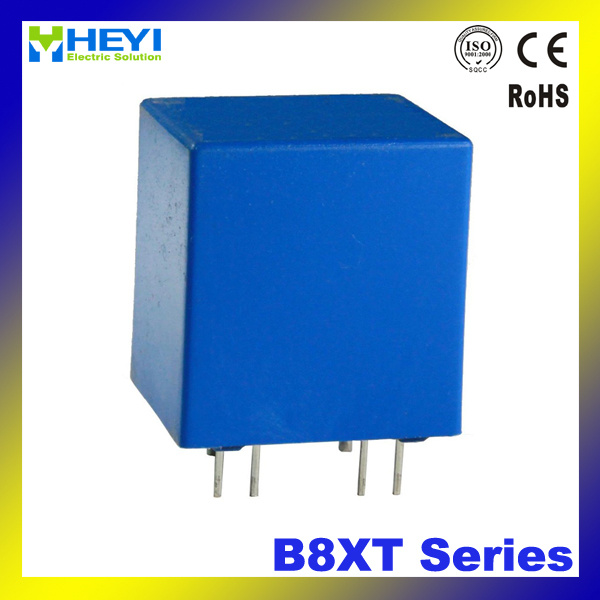

(B8XT Series) Two-Closed Loop Hall Effect Current Sensor

(B8XT Series) Two-Closed Loop Hall Effect Current Sensor
Price: US $ 4.1-5.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: B8XT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: B8xt Series
Supply Voltage: +5V
Power Consumption: Less Than 20+ Ipx(Np/Ns) Ma
Turns Ratio(Np/Ns): Details Below or Contact Us for Inquiry
Linearity: Less Than 0.1
Response Time: Less Than 500 Ns
Galvanic Isolation: @ 50Hz,AC,1min 2.5kv
Bandwidth: @ -1db DC~100kHz
Courier: DHL, TNT, FedEx

Product Description

B8XT series current sensor is two closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It has strong anti-jamming ability and provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

TypeB8XT-5AB8XT-10AB8XT-15AB8XT-25AUnit
Rated current(Ipn)5101525A
Measure range(Ip)10203050A
Turns ratio(Np/Ns)5:10003:12002:12001:1000T
Internal resister25±0.1%25±0.1%25±0.1%25±0.1%Ω
Size of primary pins¢0.6¢0.8¢1.0¢1.4mm
Rated output@Ip=±Ipn               ±0.625±0.5%V
Supply voltage+5VV
Power Consumption≤20+ IpX(Np/Ns)mA
Zero voltage@Ip=0                   +2.5±0.5%V
Zero voltage drift@ -40~+85ºC              ≤±0.5mV /ºC
Linearity@Ip=0-±Ipn                ≤0.1%FS
Total precision≤±0.7%
di/dt accurately followed>50A /μS
Response time@100A/μ S,10%-90%       ≤500ns
Galvanic isolation@ 50HZ,AC,1min             2.5KV
Bandwidth@ -1db                    DC~100KHZ

Applications
·AC variable speed drives
·Static converters for DC motor drives
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Switched Mode Power Supplies (SMPS)
·Power supplies for welding applications

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

 ValueUnit
Operating temperature(TA)-40 to +85ºC
Storage temperature(TS)-40 to +125ºC
Mass(approx) (M)12g
