(B9 Series) Closed Loop Mode Hall Effect Current Sensor for Electrical Applications

Name: (B9 Series) Closed Loop Mode Hall Effect Current Sensor for Electrical Applications
Brand: all-electronics-online.com
SKU: 751598615
Availability: InStock
Rating: 4.4 (50 reviews)

Price:	US $ 9.1-11.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	B9 Series
Supply Voltage:	+-12V, +-15V
Power Consumption:	Less Than 20+Ipx(Np/Ns) Ma
Turns Ratio(Np/Ns):	Details Below
Offset Current:	@IP=0 +-0.2 Ma
Linearity:	Less Than 0.1
Response Time:	Less Than 1
Galvanic Isolation:	@ 50Hz,AC,1min 3kv
Bandwidth:	@ -3db 0~200kHz
Courier:	DHL, TNT, FedEx

Product Description

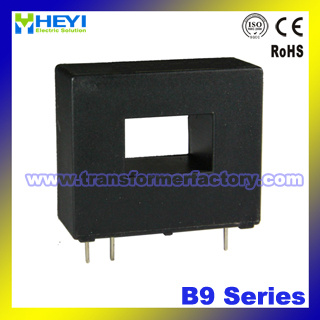

B9 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	B9-125A	B9-200A	Unit
Rated current(Ipn)	±125	±200	A
Measure range(Ip)	0-±185	0-±300	A
Turns ratio(Np/Ns)	1:1000	1:2000	T
Coil resister	30	45	Ω
Rated output	±125±0.5%	±100±0.5%	mA
Supply voltage	±12,±15		V
Power Consumption	≤20+IpX(Np/Ns)		mA
Offset current	@Ip=0 ±0.2		mA
Offset drift	@ -40~+85ºC ≤±0.5		mA
Linearity	@Ip=0-±Ipn ≤0.1		%FS
Response time	@50A/μS, 10%-90% ≤1		μS
Galvanic isolation	@ 50HZ,AC,1min 3		KV
Bandwidth	@ -3dB 0~200		KHZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
· Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT

Directions for use

1. When measure current flows according to the direction of the arrowhead, Output terminal gets the same phase current.
2. The primary conductor should be≤120ºC.
3. The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
4. The primary turns should be at the top of the sensor for the best magnetic coupling.
5. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
6. Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	20	g
