| Prod Model: |
GPS TK105A |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V,24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Tracking System: |
Web Server Platform |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Over-Speed Alarm |
| Battery: |
3 Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Bn105A |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
CB900 |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Function Introduction
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
- Camera/RFID function: When the tracker terminal device detects DOOR/ ACC / SOS / alarm, the tracker device will be automatically ready for photo during sending the alarm and then shoot camera to upload the photo to the monitoring platform (web server).Meanwhile, the device will send SMS including http link to all authorized cell phone numbers, photo can be also requested from web server by sending command. .
- Remote Car Engine On / Off function, Configure by remote terminal, remote control vehicle, which is more convenient for your usage. Especially for your best experience, never worried about getting into your car to cut On / Off the function
- Temperature alert : Sensitive temperature sensor to The available temperature range is from-050ºCto +125ºC,the number should be 3 digits and temperature unit must be in upper case in SMS command.
- Temperature detection, Vehicle Speed detection, Kilometrage report. Thsese three features for GPS tracker is definitely design convenient for customer usage.
- BAANOOL,16 years of experience about GPS Car Tracker manufacture, we believe in good quality products sell around the world and best service for our customer is the most important thing. Choose Baanool & find or your location in the world, We promise One year warranty for all models, and we will bear maintenance cost during warranty.
Features
GPS/LBS (location based service) double way tracking solution.
SMS/GPRS/Internet Network data transmission.
Configure by remote terminal, remote control vehicle.
Snapshoot photo automatically when alarm triggered
RFID.
Fuel level measurement, Oil leakage or theft alarm.
Temperature detection
Vehicle Speed detection.
Kilometrage report.

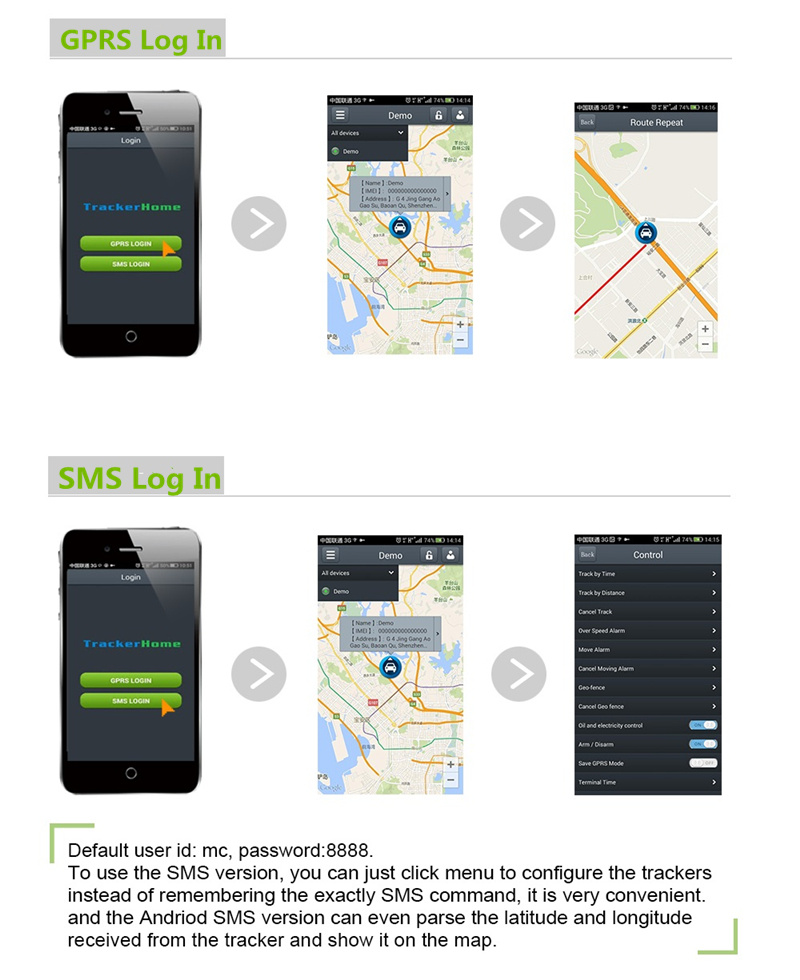

Tracking and monitoring by SMS, web server and mobile app.

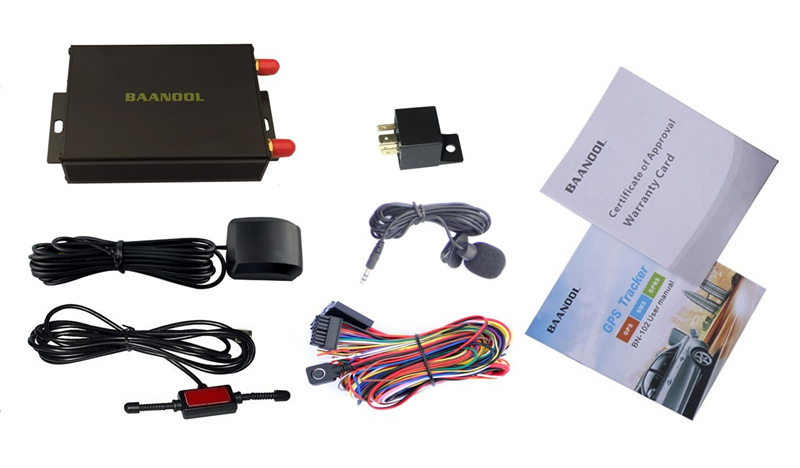

Package
GPS Unit
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual
Attention:
Optional accessories
alarm siren
Microsd memory card
Fuel sensor
USB Cable
RFID | Camera(Option, choose one only from these 2 accessories for each tracker )
Speed detector IC of speed governor(LM2917 weld on PCB)
Temperature sensor
Function:
For vehicle (12V-24V)
LBS/Cell ID tracking+ GPS satelites tracking, monitor
DualSim switch if one lost signal
ARM (Lock) / DISARM (unlock) by SMS
remote shutdown vehicle engine and resume

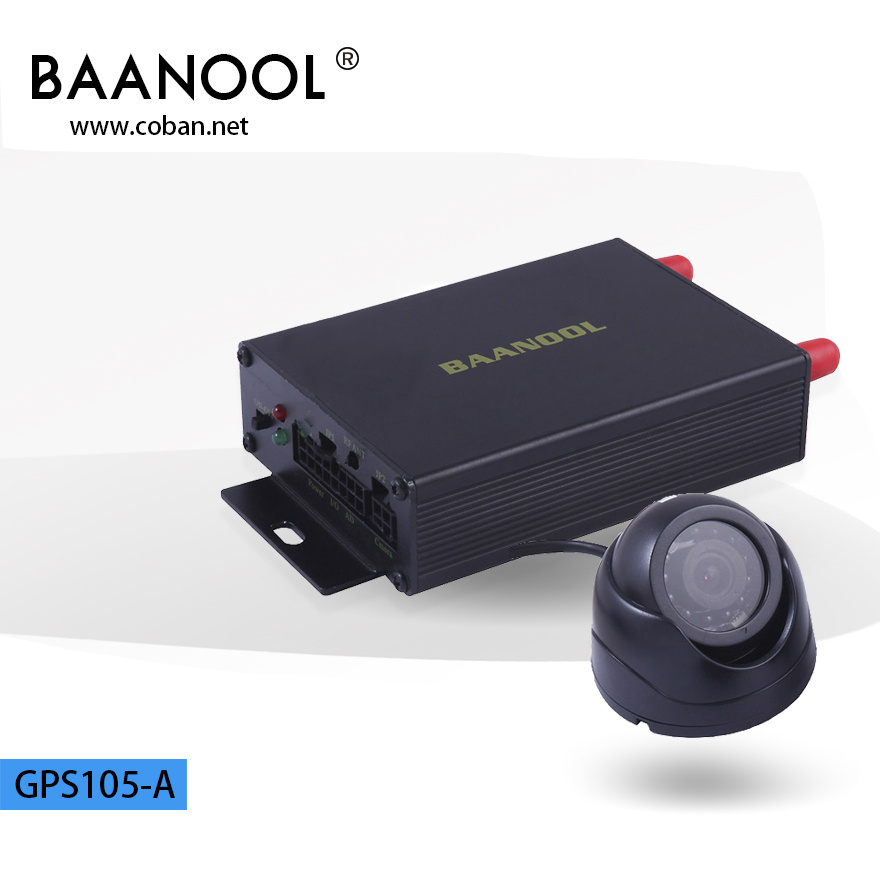

Support camera,snatshot image automatically when alarm triggered,get image from cell phone or Web platform.
Support RFID, Kilometrage, speed governor
GPS blind spot alert
Power save mode, GPRS data save mode
Real time tracking, turning points update automatically
SOS,Geo fence, movement, over speed, low battery and power off alert | Fuel, shock sensor, ACC, door alarm
Configure parameters by USB cable
SMS tracking on cellphone with google maps link
Exact street address by SMS
Web server and mobile APP, free PC based tracking softe
Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |

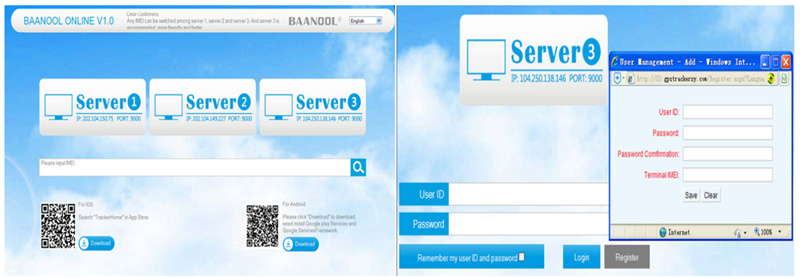

Our Online Tracking System
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
