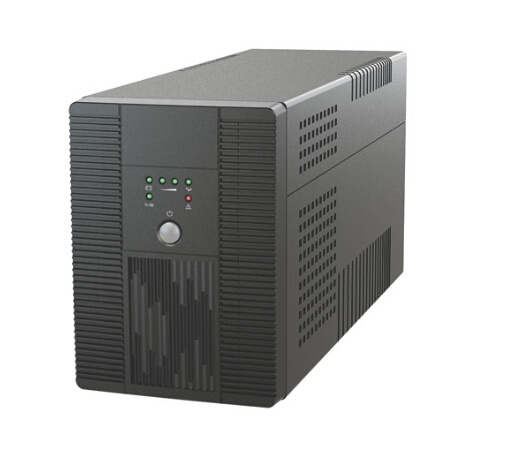

Back up Type 2k Va UPS Power System
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
DX-2kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Welcome |
| Frequency: |
50Hz/60V |
| Input Voltage: |
110V/220V |
| Certificate: |
CE |
| Warranty: |
1 Year |
| Wattage: |
1200W |
| Weight: |
11.5kg |
| Size: |
397X146X205mm |
| Color: |
Black |
| Multi-Protection: |
Yes |
| Phase: |
Single Phase |
| Protection: |
Short Circuit |
| Brand: |
Doxin |
| Type: |
off Line |
Product Description
Back up type 2k va UPS power system
The off-line UPS is in standby status with batteries being charged in normal AC time. When the power supply unexpectedly shuts down, the built-in inverter will in no time convert the battery output into AC to keep stable power supply. The UPS is generally considered high rate, low noise while running and cost-effective, mostly used in comparably stable environment with a small fluctuation of utility power and lower requirement of power supply quality.
The UPS now is widely used in protection of PC in government offices, education institutes and SMEs.
| Model | 2000 | |
| Capacity | 2000VA/1200W | |
| INPUT |
| Input voltage | 110/120Vac or 220/230/240Vac |
| Input voltage range | 85~150Vac/175~275Vac |
| Frequency range | 60/50Hz/(Auto sensing) |
| OUTPUT |
| Output voltage | 110/120Vac or 220/230/240Vac |
| Output voltage range | 102~132Vac/200~255Vac |
| Output frequency | 60±0.5Hz or 50±0.5Hz(Batt.mode) |
| Output wave form | PWM(Batt. mode) |
| Transfer time | Typical 2-6ms,10ms max |
| BATTERY |
| QTY.&capacity of battery | 12V/7AII×4pcs | 12V/9AII×4pcs |
| Charging period | 4-6 hours recover to 90% capacity |
| PROTECTION |
| Full Protention | Low voltage&overload&short circuit protection |
| PHYSICAL |
| Net weight (kg) | 11.5KG | 20.0 |
| Unit dimention (mm) | 397X146X205mm |
| ENVIRONMENT |
| Environment of performance | Temperature 0ºC~40ºC, Humidity 20%~90% |
| Noise level | ≤ 40dB(lm) |
| MANAGEMENT |
| LCD or LED, RJ45/11 & USB | Optional |
* Product specifications are subject to change without further notice
