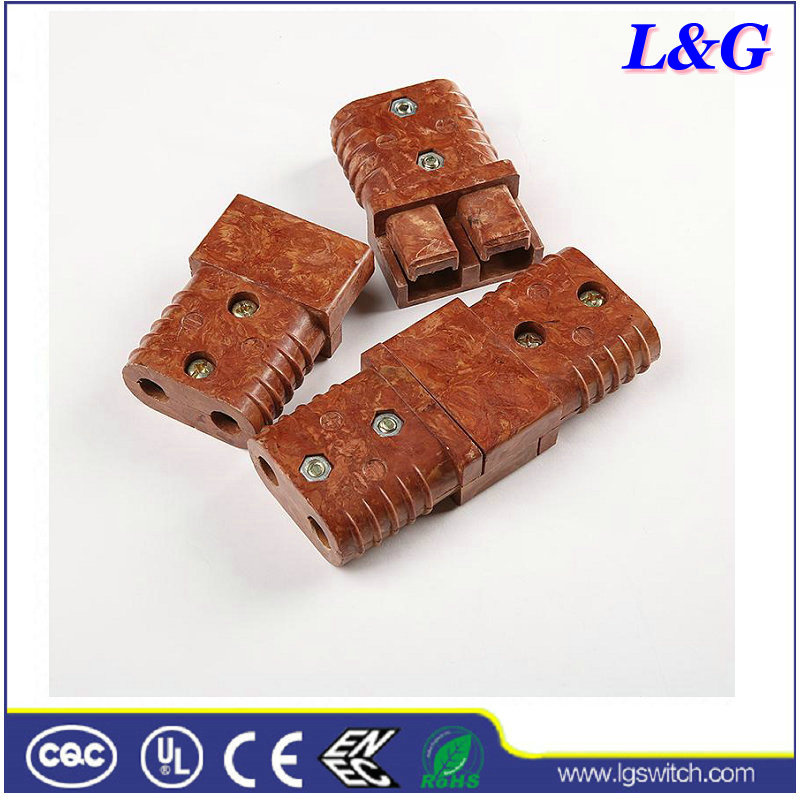

Bakelite 50A Quick Electrical Power Connector

Name: Bakelite 50A Quick Electrical Power Connector
Brand: all-electronics-online.com
SKU: 703461112
Availability: InStock
Rating: 4.3 (26 reviews)

Price:	US $ 0.1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SD150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current(Amperes):	50A
Under Load:	Hot Plug 250 Cycles@120V
Resistance:	100m Ohm
AWG\Contact Barrel Wire Size:	6AWG/ 10/12AWG (13.3mm²-5.3/3.3mm²)
Withstand Voltage Insulation Voltage:	2200V
Working Voltage:	600V (Either AC or DC)
Gender:	Female
Application:	Electric Cars

Product Description

FEATURES & BENEFITS
Genderless Housings
Provide simplified assembly and minimize the number of
components
Low Resistance Connection
Silver or tin plated copper contacts inside housings that
strongly force the contacts together
Hot Plugging AC or DC
Contacts feature a sacrificial tip that allows high current
circuit interrupt
Keyed & Color Coded Housings
Prevents accidental cross mating of circuits
Self Securing Design
Stainless steel springs create a robust force between the
contacts that holds the connector in the mated position
Auxiliary or Ground Positions
For signal transmission or the added safety of a premate
ground positiontion

2-way Electric power Connector

MultipolePowerConnectors
Product specifications
Rated Current(Amperes) 50A
Rated Voltage(Voltage) 600V
(AWG)\Contact Barrel Wire Size(AWG) 6AWG/ 10/12AWG (13.3mm²-5.3/3.3mm²)
Average contact resistance 0.05MΩ
Voltage proof 2200V(DC)
Insulation resistance 500MΩ
No load (Contact/Disconnect Cycles)
Under Load (Hot Plug 250 cycles@120V)
To10,000
50A
Avg.Unmating Force 53N
Flammability Rating of Housing Material UL94 V-0
Operating temperature range -20°to 125°
Contact material Copper\Plating Silver

2-way Electric power Connector

Auxiliary or Ground Positions
For signal transmission or the added safety of a premate ground positiontion
