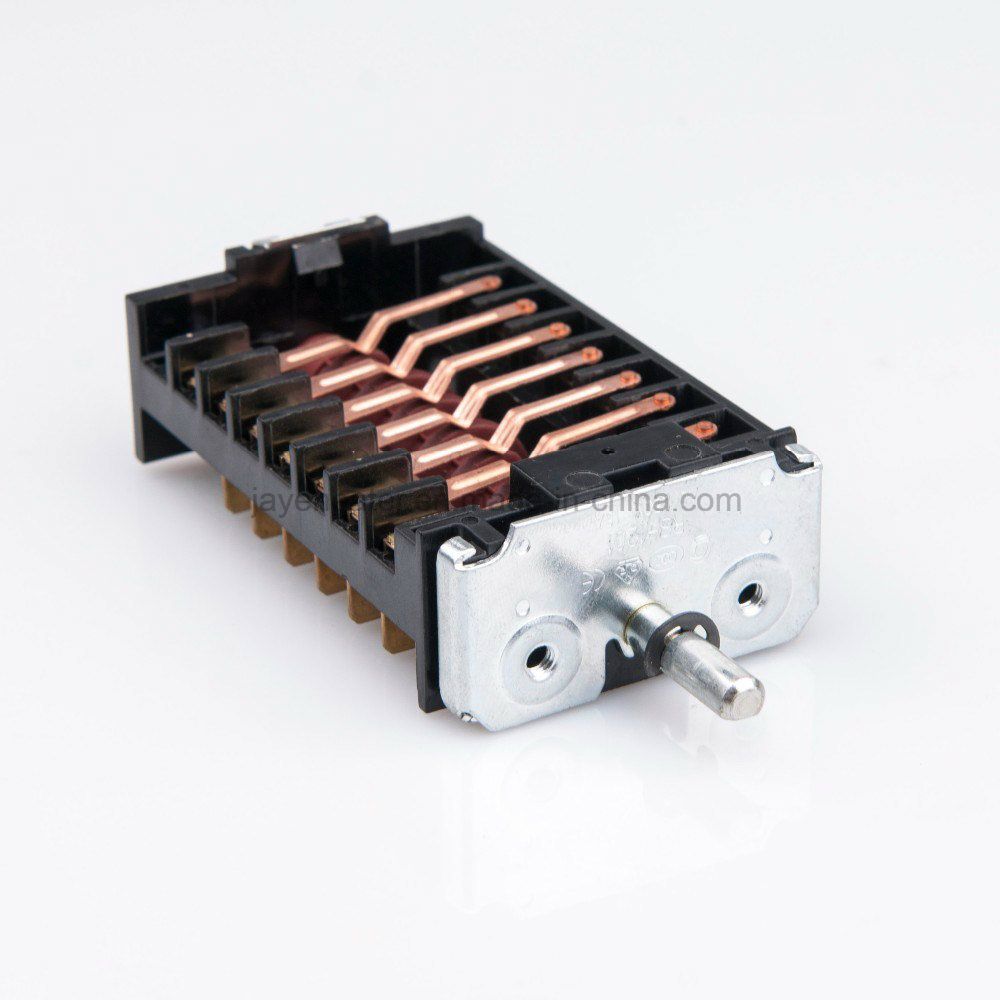

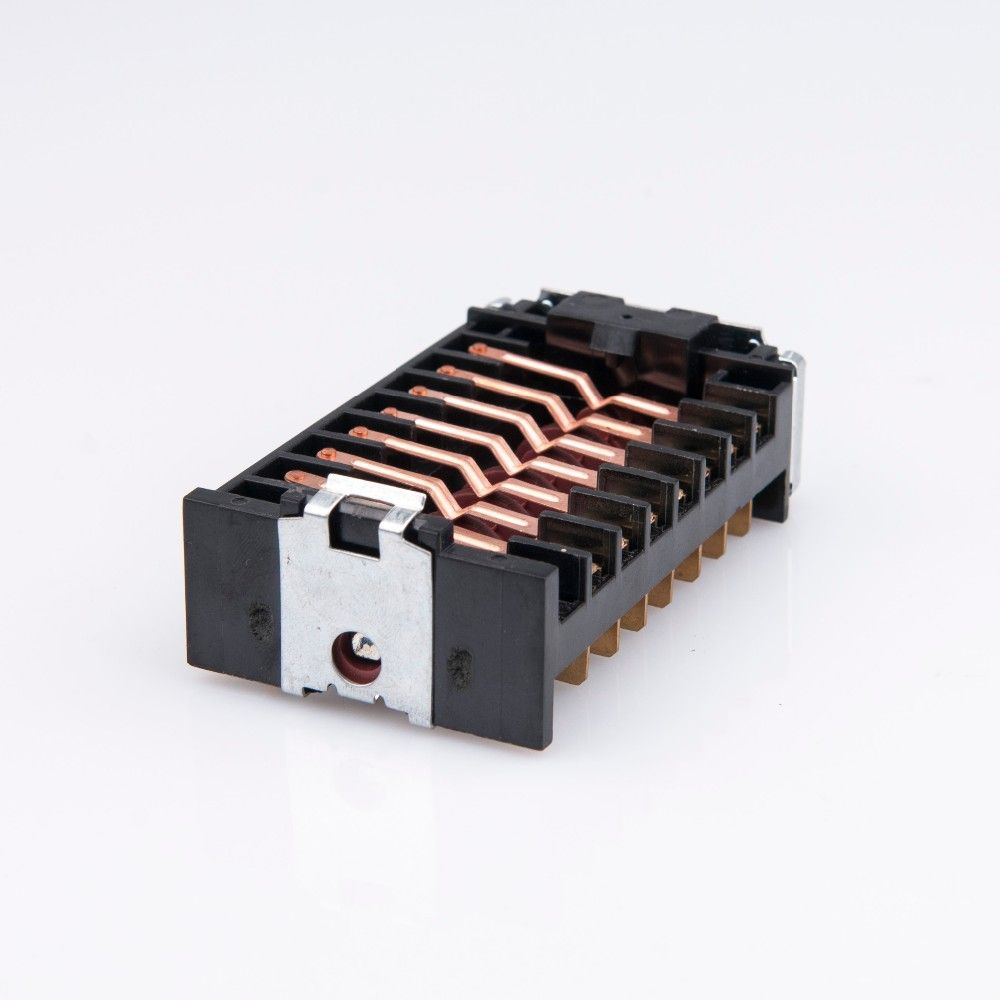

Bakelite Rotary Cooker Switch for Hot Plate and Oven

Name: Bakelite Rotary Cooker Switch for Hot Plate and Oven
Brand: all-electronics-online.com
SKU: 727715222
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-SW001
Max Current:	32 AMP
Max. Voltage:	250 - 400
Rotary Number:	Single Button
Usage:	Electrical Appliance
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	CE
Condition:	New

Product Description

Production Specification

Rating	250VAC 16A T150
Contact Resistance	100MΩ Max
Dielectric Intensity	1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
Withstand Voltage	1500VAC/min
Operating Temperature	-25~85°C
Insulation Resistance	500VDC, 100MΩ Min
Electrical Life	≥10,000 cycles
Housing material	PA66
Push Button	PC

Production Material

Base plastic	Nylon 66
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Tungsten steel
Cover plastic	PC

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
