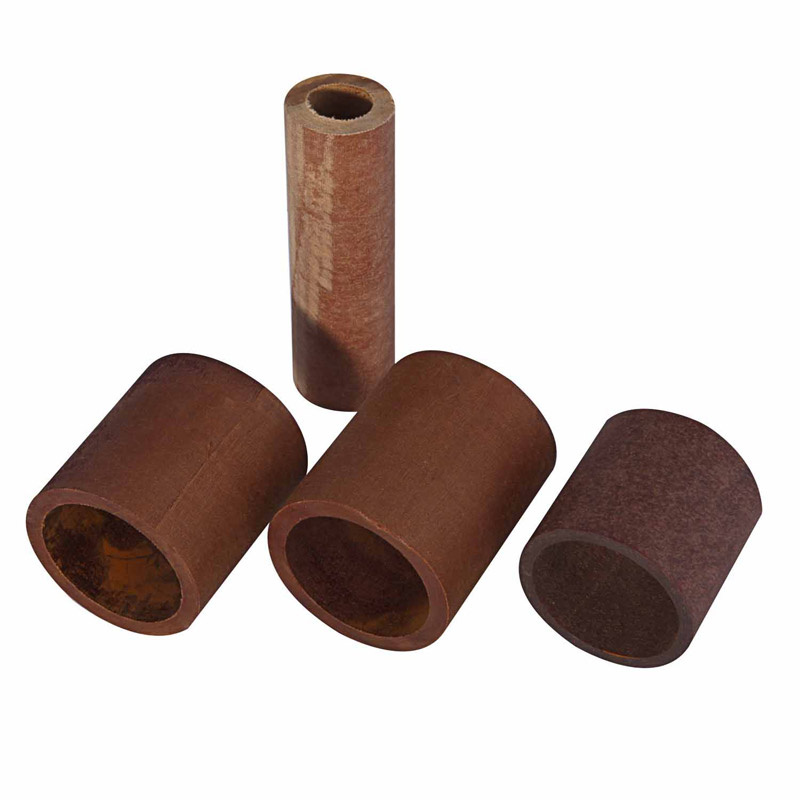

Bakelite Tube for Insulation Application

Prod Model:	Bakelite
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	1000mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Brand:	Nova

Product Description

Phenolic Tubes is provided for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc.

These grades are comprised of phenolic resin binder and insulating kraft paper substrate.
These are general purpose grades with superior electrical, mechanical properties, and easy to machine.
Temperature Index: 120 Degree Celsius

Applications:
They are widely used for electrical & mechanical parts, such as switchboards, panel boards, insulating washers, bushing, punched component, etc.

Specifications:
1) Grade: X/XX/XP/XPC
2) Color: Brown; Orange; Black
3) Thickness range: 0.5mm to 100mm.
4) Sheet Size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot

(NEMA Grade: X/XX/XP/XPC)
(IEC Grade: PFCP201, PFCP202, PFCP203, PFCP204)
(DIN7735 Grade: HP2061, HP2061.5, HP2061.6)
