Bare Aluminum Conductor Standard Electrical Cable Wire 10mm
| Price: |
US $ 0.18-9.9/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
bare conductor |
| Product Name: |
Bare Aluminum Conductor Standard Electrical Cable |
| Number Of Wire: |
7, 19, 37, 61, 91 |
| ACSR Code Name: |
ACSR Quail |
| ACSR Application: |
Overhead, State Grid, Power Station |
| ACSR Export Experience: |
Southeast Asia, South America, Africa |
| Type Of Company: |
Professional Manufacturer of 25 Years in China |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Standard: |
GB/T, ASTM, CSA, BS, DIN, IEC, NF... |
| Advantages: |
High Quality, Competitive Price, Excellent Service |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Bare |
| Certification: |
RoHS |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

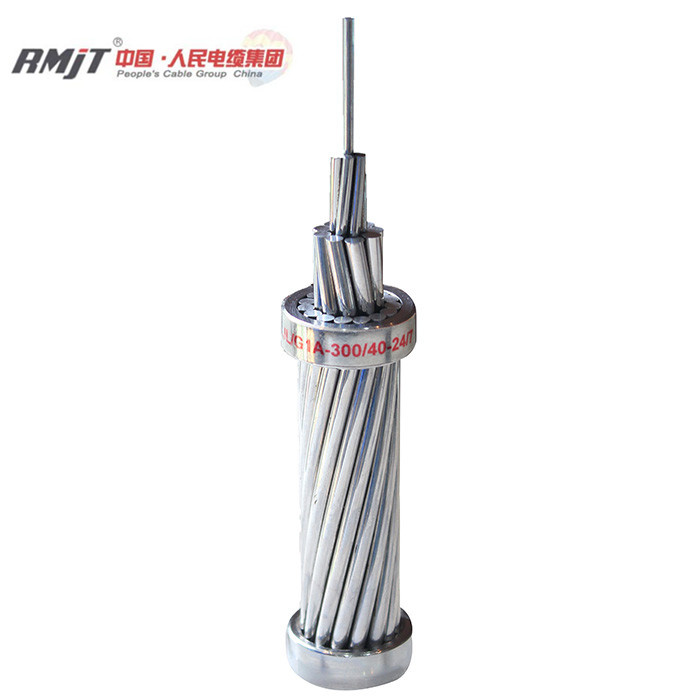

Bare aluminum conductor standard electrical cable wire 10mm
1)ACSR is widely used in power transmission lines with various voltage levels, and also used in power
lines across great rivers, heavy ice area, etc. with special geographical situation.
2)ACSR Conductor has excellent advantage of high strength, large current carrying capacity and good
catenaries property as well as wear-resistance, anti-crush and corrosion-proof with simple structure,
convenient installation and maintenance, low cost for the line, large transmission capacity.
3)ACSR consists of a galvanized steel core of 1 wire , 7 wires or 19 wires surrounded by concentric layer
of aluminium wire . When a conductor with a high current carrying capacity and comparatively low strength
is required , special constructions are available with a high aluminium content.
4)Protection against Corrosion :A coating of non-oxidizing grease is normally applied to the steel cores of all
conductors, in addition to the protection offered by the galvanizing of the steel wires. One or more layers of the aluminium wires can, if required, be supplied partially or fully greased.
6).Technical data sheet of ACSR | Code words | stranding
design | Stranding | Nominal
O.D. | Mass |
| Aluminum wires | Steel wires |
| aluminum/steel | number | diameter | layers | number | diameter | layers |
| | | | in. | | | in. | | in. | lb/1000ft |
| Thrasher | 76/19 | 76 | 0.1744 | 4 | 19 | 0.0814 | 2 | 1.802 | 2523 |
| Kiwi | 72/7 | 72 | 0.1735 | 4 | 7 | 0.1157 | 1 | 1.735 | 2301 |
| Bluebird | 84/19 | 84 | 0.1602 | 4 | 19 | 0.0961 | 2 | 1.762 | 2508 |
| Chukar | 84/19 | 84 | 0.1456 | 4 | 19 | 0.0874 | 2 | 1.602 | 2072 |
| Falcon | 54/19 | 54 | 0.1716 | 3 | 19 | 0.103 | 2 | 1.545 | 2042 |
| Lapwing | 45/7 | 45 | 0.188 | 3 | 7 | 0.1253 | 1 | 1.504 | 1790 |
| Parrot | 54/19 | 54 | 0.1672 | 3 | 19 | 0.1003 | 2 | 1.505 | 1938 |
| Nuthatch | 45/7 | 45 | 0.1832 | 3 | 7 | 0.1221 | 1 | 1.466 | 1700 |
| Plover | 54/19 | 54 | 0.1628 | 3 | 19 | 0.0977 | 2 | 1.465 | 1838 |
| Bobolink | 45/7 | 45 | 0.1783 | 3 | 7 | 0.1189 | 1 | 1.427 | 1611 |
| Martin | 54/19 | 54 | 0.1582 | 3 | 19 | 0.0949 | 2 | 1.424 | 1735 |
| Dipper | 45/7 | 45 | 0.1733 | 3 | 7 | 0.1155 | 1 | 1.386 | 1521 |
| Pheasant | 54/19 | 54 | 0.1535 | 3 | 19 | 0.0921 | 2 | 1.382 | 1634 |
| Bittern | 45/7 | 45 | 0.1681 | 3 | 7 | 0.1121 | 1 | 1.345 | 1432 |
| Skylark | 36/1 | 36 | 0.188 | 3 | 1 | 0.188 | 0 | 1.316 | 1286 |
| Grackle | 54/19 | 54 | 0.1486 | 3 | 19 | 0.0892 | 2 | 1.338 | 1531 |
| Bunting | 45/7 | 45 | 0.1628 | 3 | 7 | 0.1085 | 1 | 1.302 | 1342 |
| Finch | 54/19 | 54 | 0.1436 | 3 | 19 | 0.0862 | 2 | 1.293 | 1430 |
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit :
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
How to contact us:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjtcable.com
For more details please check our website as my contact information.Thanks!
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
