Bare Copper CCTV Cable 8d-Fb Coaxial Cable

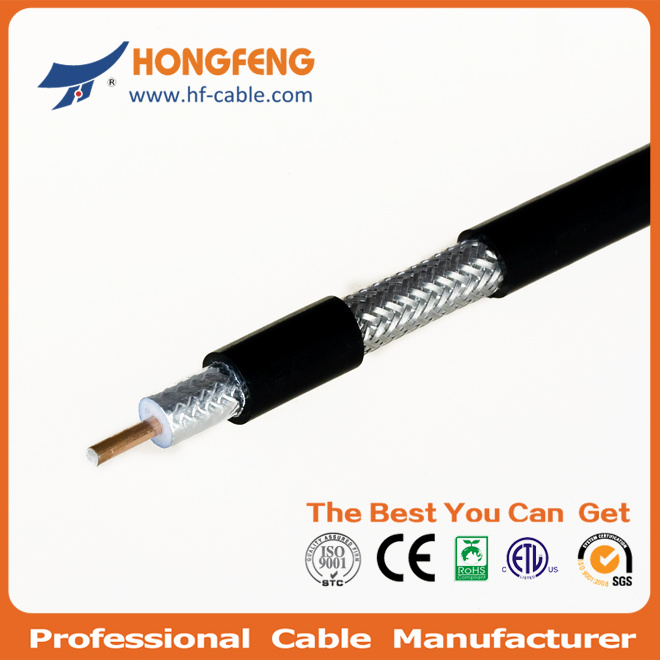

Name: Bare Copper CCTV Cable 8d-Fb Coaxial Cable
Brand: all-electronics-online.com
SKU: 789502555
Availability: InStock
Rating: 5 (39 reviews)

Price:	US $ 1.2/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	8D-FB cable
Place Of Origin:	Zhejiang, China (Mainland)
Inner Conductor:	Cu, CCS, CCA
Dielectric:	Foamed PE Insulation
First Shield:	Al/Pet/Al Foil (/Bonded)
Second Shield:	35%-95% Braiding, Cu., Al., CCA, Tc, Wire
Outer Jacket:	PVC ( PE) Any Color
Packing Method:	100m, 250m, 305m, 500m, 1000m, etc.
Certificates:	ISO9001, Ce, RoHS, UL, ETL
Application:	Trunk Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Brand:	Hf/OEM
Type:	Coaxial

Product Description

1. Specifications:

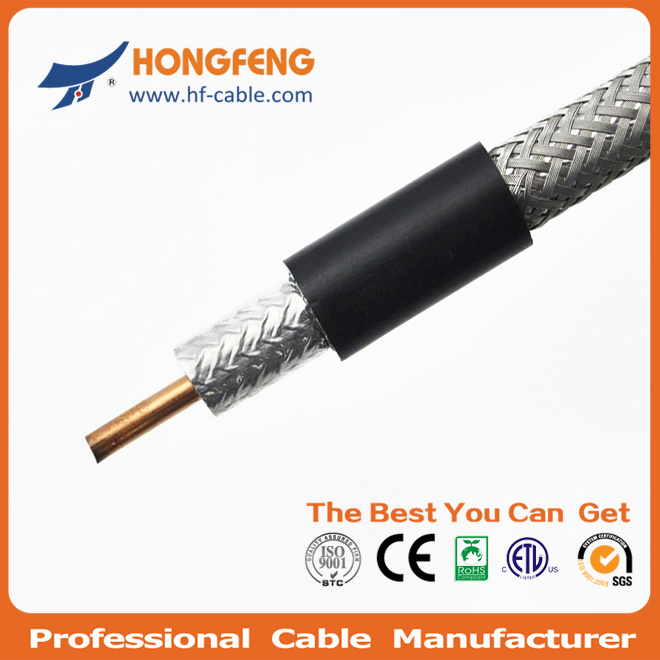

BASIC CONSTRUCTION

Conductor	2.80mmCCA/BC
Dielectric	7.80mmFPE
Shield	AL FOIL+85%TC Braiding
Jacket	11.10mmPVC

2. Performance:

BASIC CHARACTERISTICS

Nominal Impedance	50ohms
Nominal Velocity of Propagation	83%
Nominal Capacitance	84(pF/m)
Sparker Test	3000(VAC)
Cutoff frequency(GHZ)	15.1

Attenuation performation
Frequency(MHz)	Maximum(db/100ft)	Maximum(db/100m)
150	x	5.20
200	x	6.10
280	x	7.30
350	x	8.20
400	x	8.60
800	x	12.30
900	x	13.00
1500	x	18.70
2000	x	22.50

Mainly products:

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

Contact Information

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

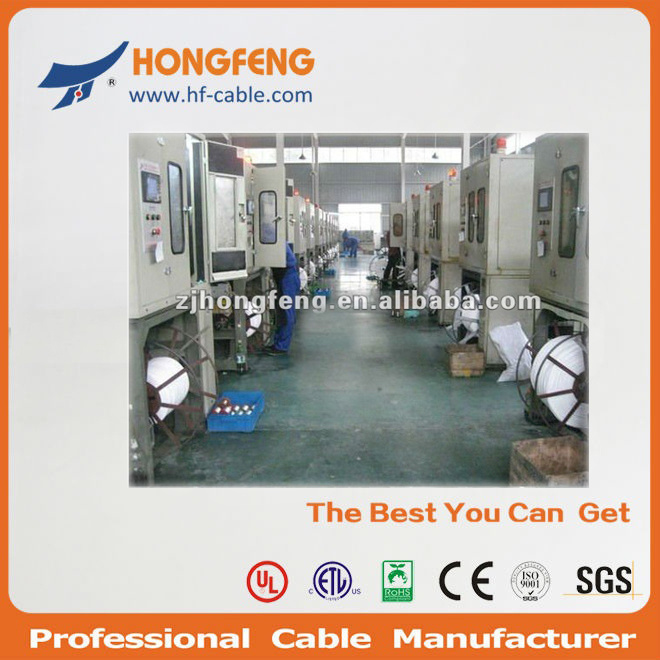

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
