Barmag Texturing Machinery Fk6 Yarn Break Sensor

Barmag Texturing Machinery Fk6 Yarn Break Sensor
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: DHYS006
Voltage: 24VDC
Output: PNP Output
Response Time: <0.1 Second
Cable Length: as Per Required
Plug Wire: 3 Wires
Price Terms: Fob, CIF, CNF, Ex Works
Production Process: Electric Board
Material: Aluminum
Application: Textile Machines

Product Description

Product Description:

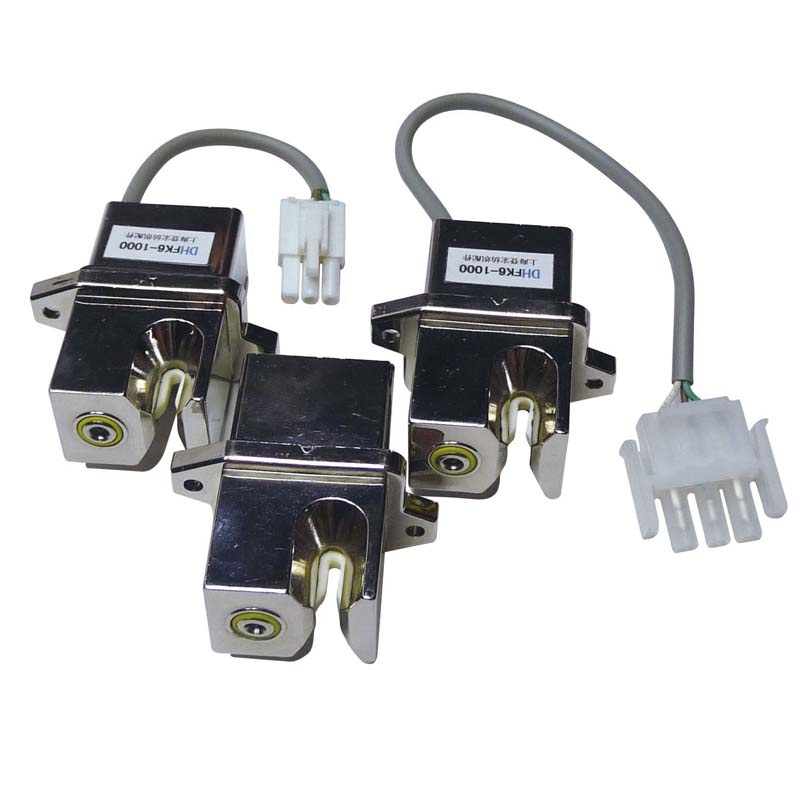

ITEM       DHYS006 FK6 1000(A) textile barmag sensors
MaterialElectroplate plastic housing
Current ouputPNP output
Working Voltage18~30 VDC
Working currentMAX 1.2 A
Static current< 15 mA
Response time< 0.1 second
GuaranteeOne year without operation mistake
OriginShanghai, China
ApplicationBarmag texile machines


Circuit Connection:



Capacitive Yarn sensors are able to be used in Winding, doubling, texturing or Elasticizers and so on.



Main Function



Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.



Working Principle



Capacitive yarn sensor probe will check tension variations produced by electrical charges of a moving yarn.

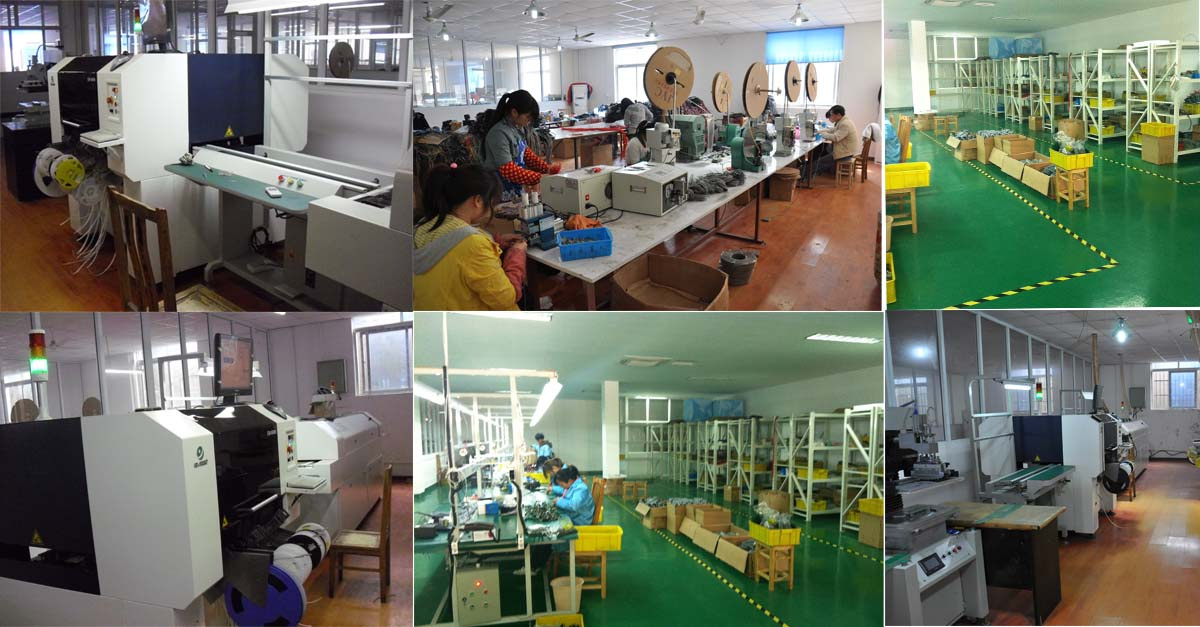

Company Information:

Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Old name: Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers.

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers
