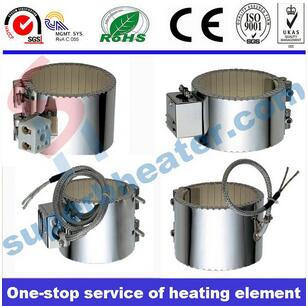

Barrel Ceramic Band Heater for Injection Molding Machine

Name: Barrel Ceramic Band Heater for Injection Molding Machine
Brand: all-electronics-online.com
SKU: 690441631
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Barrel Ceramic Band Heater

Product Description

Packaging & Delivery

Packaging Details
Carton & wooden box for round injection molding machine heating element barrel ceramic band heater
Delivery Time
Within 5~7 working days for barrel ceramic band heater

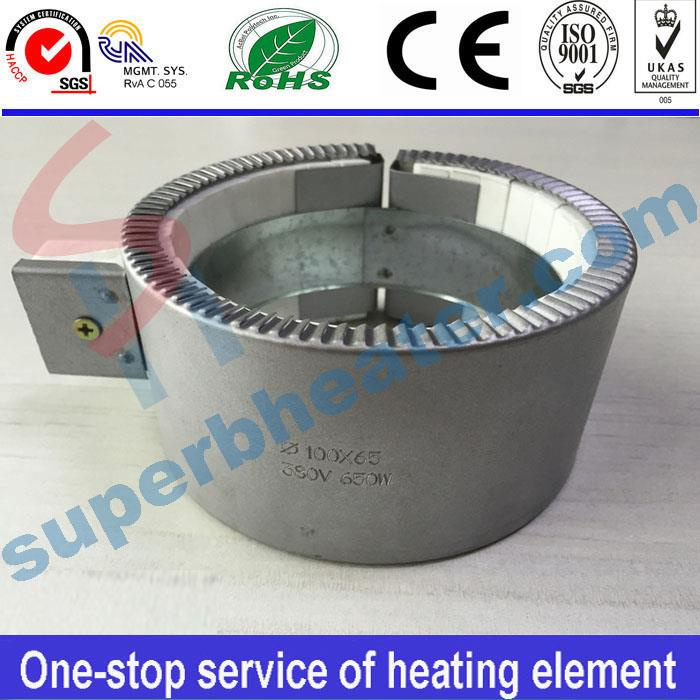

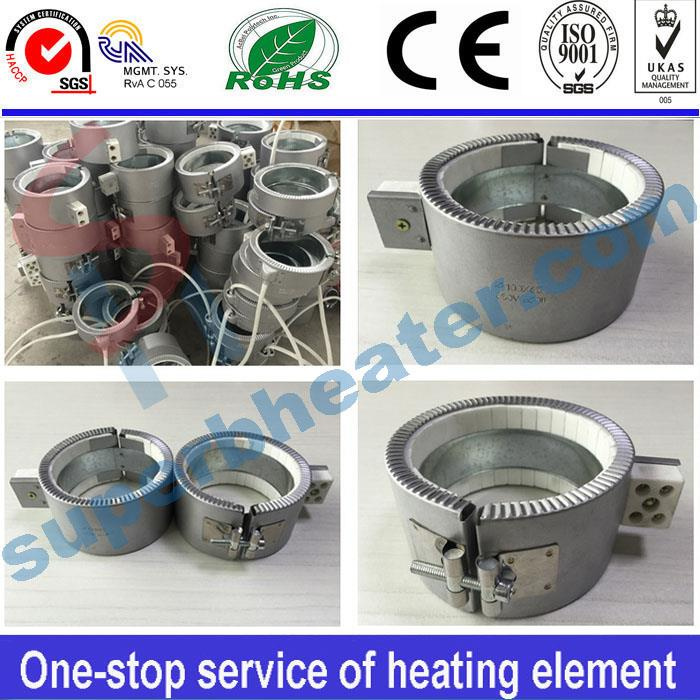

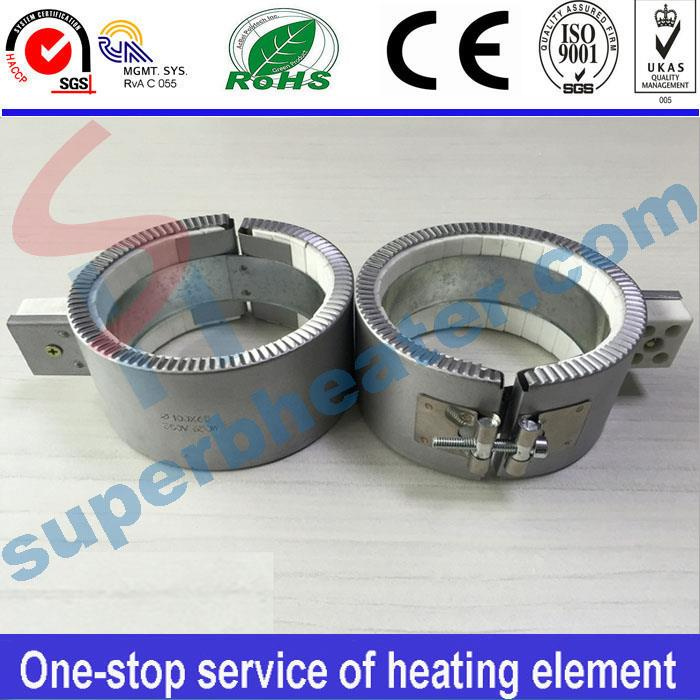

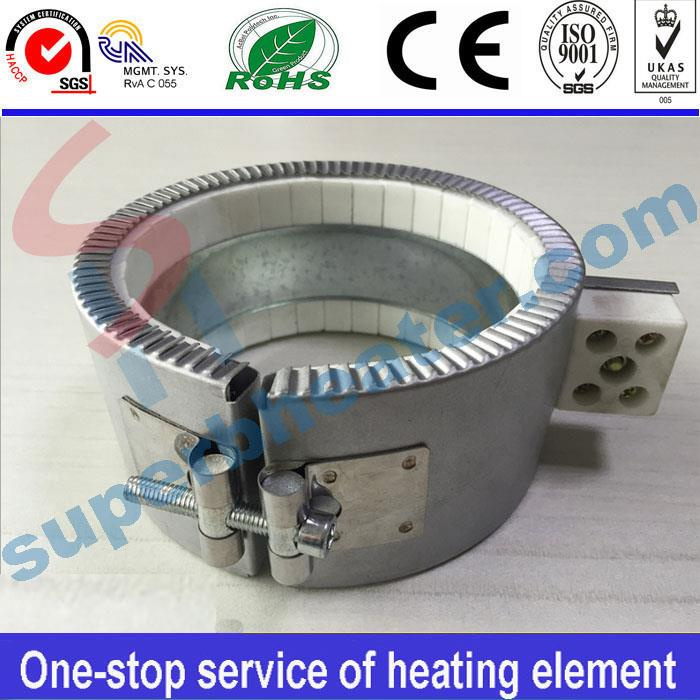

Barrel Ceramic Band Heater for Injection Molding Machine

Product Description

Description of Electric Ceramic Band Heater For Rubber Plastic :

PHP Band heaters are designed and manufactured out of 40 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500⁰C along with Energy Saving.

Technical Data Of Ceramic Band Heater :

Sheath Material	Chrome Nickel Steel
Insulators	High Grade Steatite Ceramic Insulators (High temperature)
Heat Saving Thermal Insulation	Ceramic Fibre (std.)
Heating Elements (coil)	NiCr 60:16, NiCr 80:20
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection	Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals
Voltage Range	110V - 440V, Single
Surface Loading	35-55W / inch² (depending upon model & application)
Power Rating	Depending upon application
Power Tolerance	± 10%
HV Testing	1.5 Kv between heating element and sheath
Insulation Resistance (Cold)	< 20 MΩ
Sheath Temperature	Up to 500°C maximum (Chrome Nickel Steel sheath)
Gap Between the Clamping Edge	5 - 10mm
Resistance	+/- 10%
Width :	Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver PLUS
Inner Diameter	Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS

Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
