Name: Barrier Terminal Block Connector
Brand: all-electronics-online.com
SKU: 609257154
Availability: InStock
Rating: 4.3 (122 reviews)

Price:	US $ 0.86-0.95/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Terminal Block
Application:	Integrated IC
Environmental Protection:	General
Connection Mode:	Bayonet Connection (',Fast)
Shape:	Rectangle
Contact Termination Form:	Winding Connection
Brand:	Antenk

Product Description

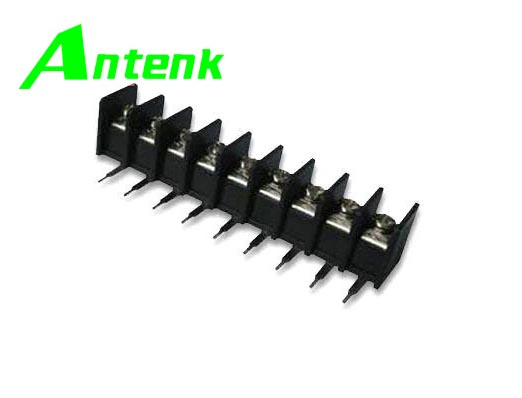

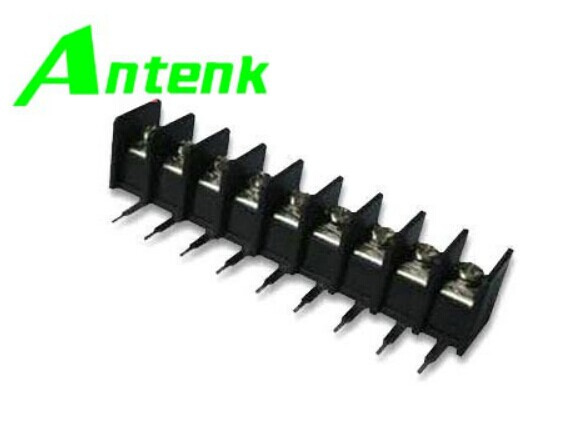

Barrier Terminal Block-1-1 Barrier Terminal Block in

7.62, 8.25, 9.50, 10.00 and 11.00mm Pitch, Various Pin Types Available

Key Specifications/Special Features:

Terminals: Brass, 0.8mm tin-plated

Screws: Steel M4 Ni-plated

Housing: PA66, UL94V-0

Withstand voltage: 2, 000V AC/minute

Insulation resistance: 500MΩ/500V DC

Wire range: 22 to 12AWG

Maximum torque value: 18kg/cm

Temperature range: -40 to +105 degrees Celsius.
