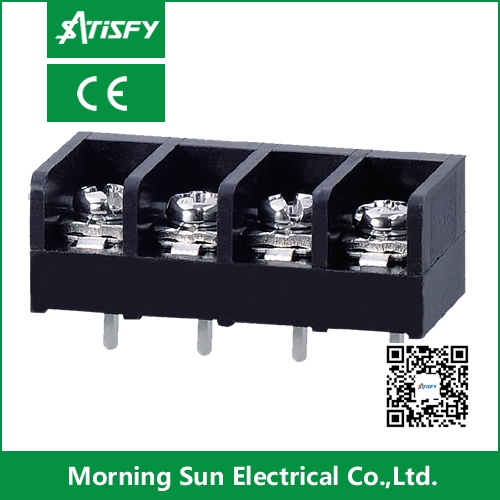

Barrier Terminal Block Without Cover

Prod Model:	HB9500 4 ways
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competiivei Prices:	9.50mm Pitch,5.00mm Pictch,8.25mm Pictch
Application:	Wer Supply
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Satisfy

Product Description

Our barrier terminal block can be OEM or Non-standard order,customized for different requirement.
Widely used in communication devices,instruments,meters,compter,program-control devices,alarm,lighting,elevator controller,AC devices and appliance etc.
we specialize in the production of the barrier terminal block,PCB terminal,AC-DC switching power converter and kinds of fuse have a complete industrial chain from mold design,copper processing,quality controlling and timely After-Sales services.On the base of super quality,competitive prices, we are gaining good credit among our customers and gettting repeated orders from our old and new customers.

Pitch	9.50mm
Srews	M4.0 Steel Ni plated
Pin Herder	Brass,Sn plated
Housing	PA66,UL94V-0
Electrical data
Rated voltage	300V
Rated current	20A
Wire range	22-12AWG
Contact Resistance	20mΩ
Insulation resistance	50MΩ/DC500V
Withstanding voltage	AC2000V/Min
Mercanical data
Temp.range	from -40ºC to 105ºC
Torque	1.2N.m/10.6Lb.in
