| Prod Model: |
tk104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Function: |
Real Time GPS Tracking for Car/Truck |
| Standby Time: |
60 Days |
| Warranty Time: |
12 Months |
| Delivery Time: |
2-3 Business Days |
| Get Street Address: |
by SMS/GPRS/Web Platform/ APP on Phone |
| Waterproof: |
Yes |
| Application: |
Vehicle Rental/out-Door Machines and Equipment Ect |
| Portable Tracking System: |
Integration Design(Antenna and Battery Inside) |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Model: |
Portable GPS104 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description

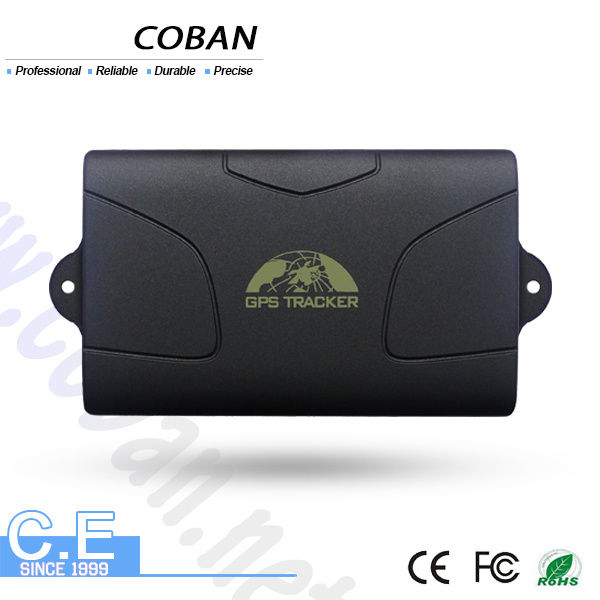

GPS Tracker 104
1, Product Description:
1.1. This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2, Applications:
Application: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
3, Functions:
1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6. Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8. Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9. tracking function by timing and frequency
10. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
11. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
12. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
13. Low battery alarm function
14. Remote Engine-stop and Resume.
4,Specifications:
Content |
specifications |
DIM. |
94mm*60mm*38mm |
Weight |
300g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status |
45s |
Hot status |
1s |
EXT. power |
DC 12 V -24V |
Operating Current |
Sleep Current |
1.8mA |
Deep sleep |
0.6mA |
GSM operating Current |
68mA±3mA |
GPRS Current(data transfer) |
82mA±10mA |
Battery |
3.7V 6000mA/h Polymer battery |
Charge current |
1A±0.2A |
Charge time |
7h |
Standby time |
Sleep |
4 months |
Deep sleep |
12 months |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
5, Packaging Detail:
1 * GPS tracker
1 * AC adapter (US plug)
1 * Light car adapter
1 * GSM antenna (2meters)
1 * GPS antenna (2 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (4 Pin)
1 * Waterproof bag
1 * User manual
1 * CD with software
