| Prod Model: |
PCM-Li04S7-268 (4S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Max. Continuous Charging Current: |
7A |
| Max. Cont. Discharging Current: |
7A |
| Size: |
L63*W17*T4mm |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Ayaa have three main divisions related to portable power supply:
1. PCM/BMS For Li-ion/Li-polymer/Lifepo4 battery pack
2. Customized Assembly battery packs with our high quality PCM/BMS
3. Matching Charger for Lithium/Li-ion/Li-po/Lifepo4 battery pack
PCM for 4S Li-ion/ Li-polymer / LiFePO4 Battery Pack
Features:
· Apply for 4 cells Li-ion /Li-polymer battery pack protection.
· Internally Trimmed Charge and Discharge Voltage Limits.
· Discharge Current Limit Detection.
· Low Current Standby Mode When Cells are Disccharged.
· High Quality and High Yield: 100% Tested before Shipment.
Protection Circuit Module Specifications For 12.8V LiFePO4 Battery Pack
Protection Circuit Module Specifications For 14.8V Li-ion/Li-polymer Battery Pack |

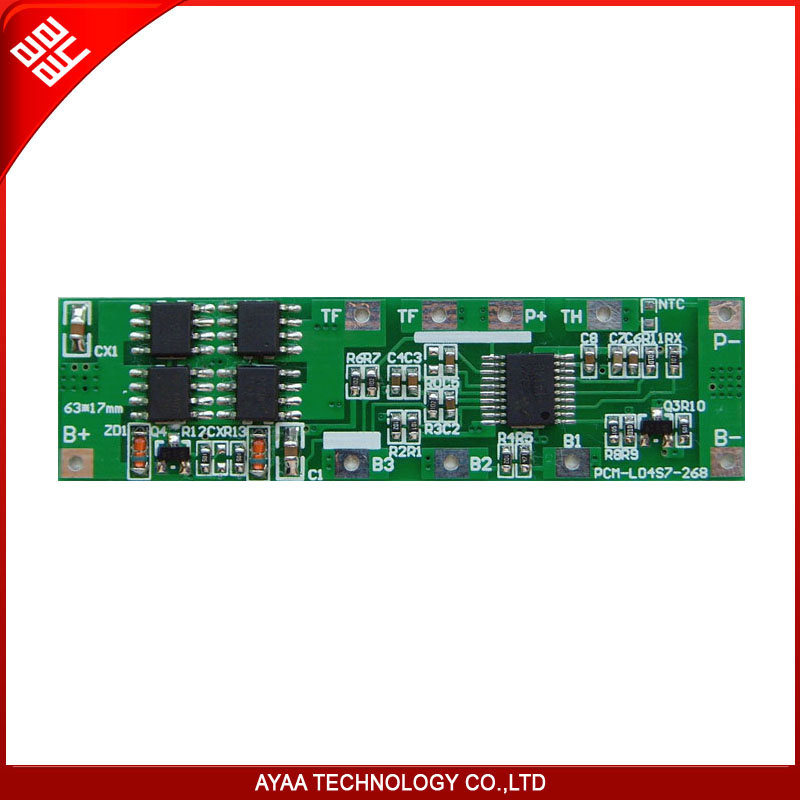

| Model: PCM-Li04S7-268 (4S) |
| No | Test item | Criterion |
| | | | Lifepo4 | Li-ion/Li-polymer |
| 1 | Voltage | Charging voltage | ^^. | DC:16.8V CC/CV
(4.2V/cell) |
| Balance voltage for single cell | ^^. | ^^. |
| 2 | Current | Balance current for single cell | ^^. | ^^. |
| Current consumption for single cell | ^^. | ≤50μA |
| Max. continuous charging current | ^^. | 7A |
| Max. cont. discharging current | ^^. | 7A |
| 3 | Over charge
protection
(single cell) | Over charge detection voltage | ^^. | 4.35±0.025V
(optional) |
| Over charge detection delay time | ^^. | 0.5S_2.0S |
| Over charge release voltage | ^^. | ^^. |
| 4 | Over discharge
protection
(single cell) | Over discharge detection voltage | ^^. | 2.3±0.1V |
| Over discharge detection delay time | ^^. | 10-2500mS |
| Over discharge release voltage | ^^. | 3.0±0.15V |
| 5 | Over current
protection | Over current detection voltage | ^^. | depend on the
above points |
| Over current detection current | ^^. | final data fixed
from actual test |
| Detection delay time | ^^. | 5-20ms |
| Release condition | ^^. | Cut load,
Auto release |
| 6 | Short
protection | Detection condition | ^^. | Exterior short circuit |
| Detection delay time | ^^. | 100~500us |
| Release condition | ^^. | charge up |
| 7 | Resistance | Protection circuitry | ^^. | ≤50mΩ |
| 8 | Temperature | Operating Temperature Range | ^^. | -40~+85 degree |
| Storage Temperature Range | ^^. | -40~+125 degree |
| 9 | Dimension | L63*W17*T4mm |
Optional
Parameters: | Over charge detection voltage (V) | ^^. | ^^. | ^^. |
| Over charge release voltage(V) | ^^. | ^^. | ^^. |
| Over discharge detection voltage(V) | ^^. | ^^. | ^^. |
| Over discharge release voltage(V) | ^^. | ^^. | ^^. |
