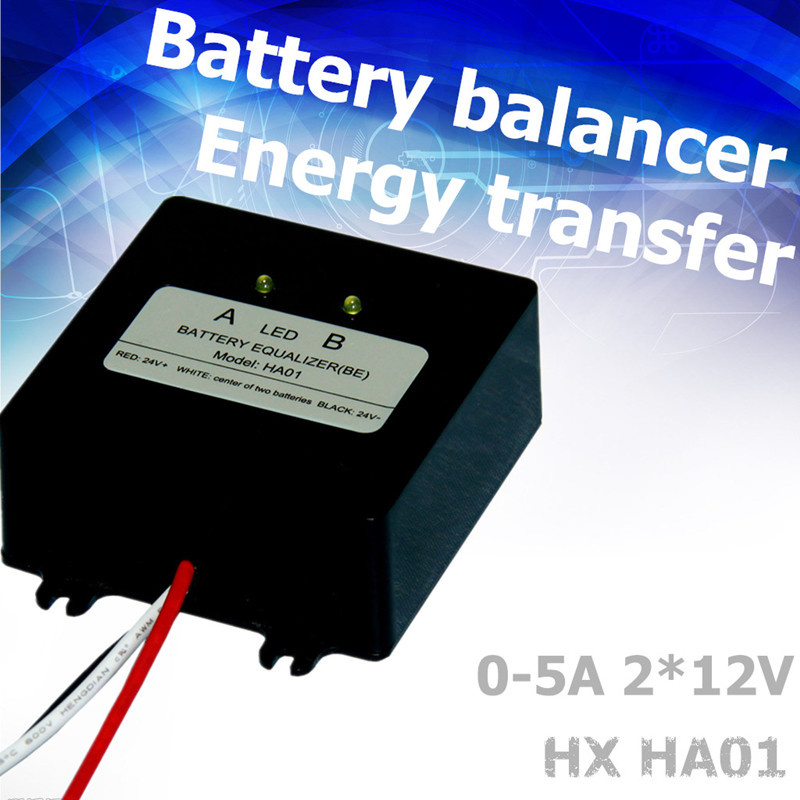

Battery Equalizer Battery Balancer for Lead Acid Battery

Name: Battery Equalizer Battery Balancer for Lead Acid Battery
Brand: all-electronics-online.com
SKU: 701208182
Availability: InStock
Rating: 4.8 (59 reviews)

Price:	US $ 18/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HA01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	0.2kg
Optimizing Current:	0-5A
Usage:	Solar Battery
Nominal Voltage:	12V
Shape:	Square Battery
Rechargeable:	Non-Rechargeable

Product Description

Battery equalizer HA01 is used for the 12V lead-acid batteries which are connected in series to keep battery voltage balance, and enhance battery life.

When two or more in-series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low.
The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve battery's performance and extent battery's life time.

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;

TECHNICAL DATA

Battery nominal voltage	2*12V
Optimizing current	0-5A
Quiescent current	<3mA
Dimensions	707027 mm
Protection	Reverse polarity protection
Low Voltage Disconnect	10V

LED INDICATOR

	LED A	LED B
U(A)=U(B)	Off	Off
U(A)>U(B)	Flash	Off
U(A)	Off	Flash
U(A)<10V	On	Off
U(B)<10V	Off	On
U(A/B)<10V	On	On
