Battery Equalizer Manufacture Lead Acid Battery Balancer for Balance Voltage Between Two 12V Batteries

Name: Battery Equalizer Manufacture Lead Acid Battery Balancer for Balance Voltage Between Two 12V Batteries
Brand: all-electronics-online.com
SKU: 834832105
Availability: InStock
Rating: 5 (81 reviews)

Price:	US $ 16/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HA01
Weight:	0.2kg
Applicable Battery:	Lead Acid, Lithium, LiFePO4
Optimizing Current:	0-5A
Usage:	Boat
Nominal Voltage:	12V
Shape:	Square Battery
Rechargeable:	Non-Rechargeable
Type:	Battery Equalizer

Product Description

What is battery equalizer?

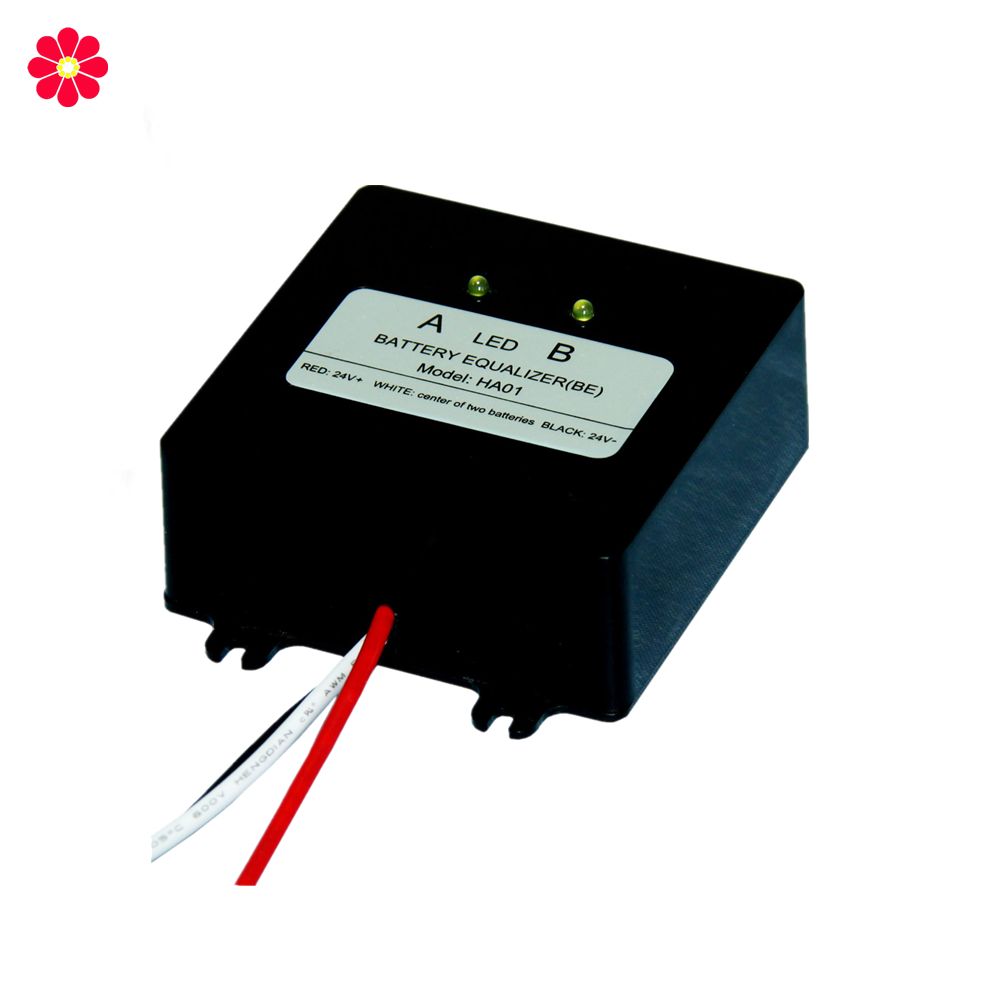

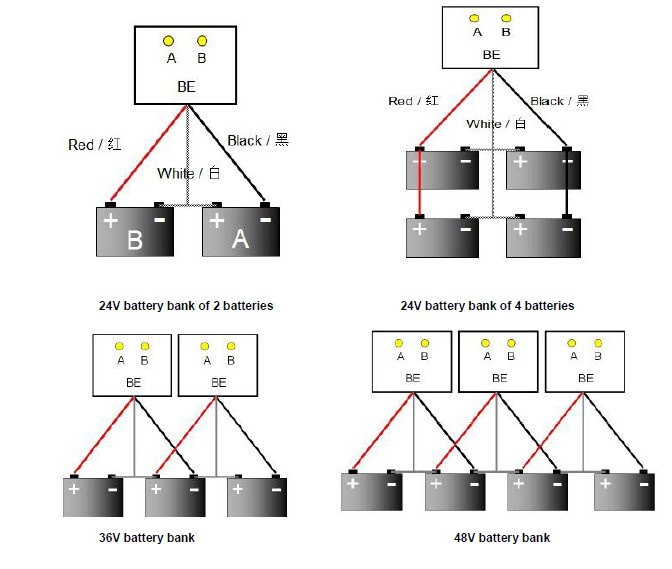

HA01 battery equalizer (BE) is used for batteries in series system/batteries bank
to keep battery voltage balance. In order to extent battery's lifetime.

How does it work?

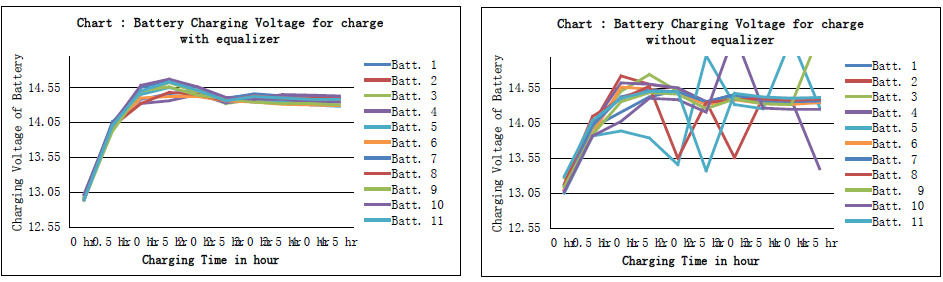

BE battery equalizer can realize bidirectional voltage compensation for the series battery pack. When
there is 20mV different between batteries, the battery equalizer start working until the battery's voltage is
balanced. It can be always connected in the batteries system to keep the system energy balance
automatically.

Why choose me?

•Energy transfer type equalizer.

• No damage to the battery

• Very low power consumption

• Reverse polarity protection

• Moisture-proof and waterproof

Specification

TECHNICAL DATA

Battery nominal voltage	2*12V
Optimizing current	0-5A
Quiescent current	<3mA
Dimensions	707027 mm
Protection	Reverse polarity protection
Low Voltage Disconnect	10V

LED INDICATOR

	LED A	LED B
U(A)=U(B)	Off	Off
U(A)>U(B)	Flash	Off
U(A)	Off	Flash
U(A)<10V	On	Off
U(B)<10V	Off	On
U(A/B)<10V	On	On
