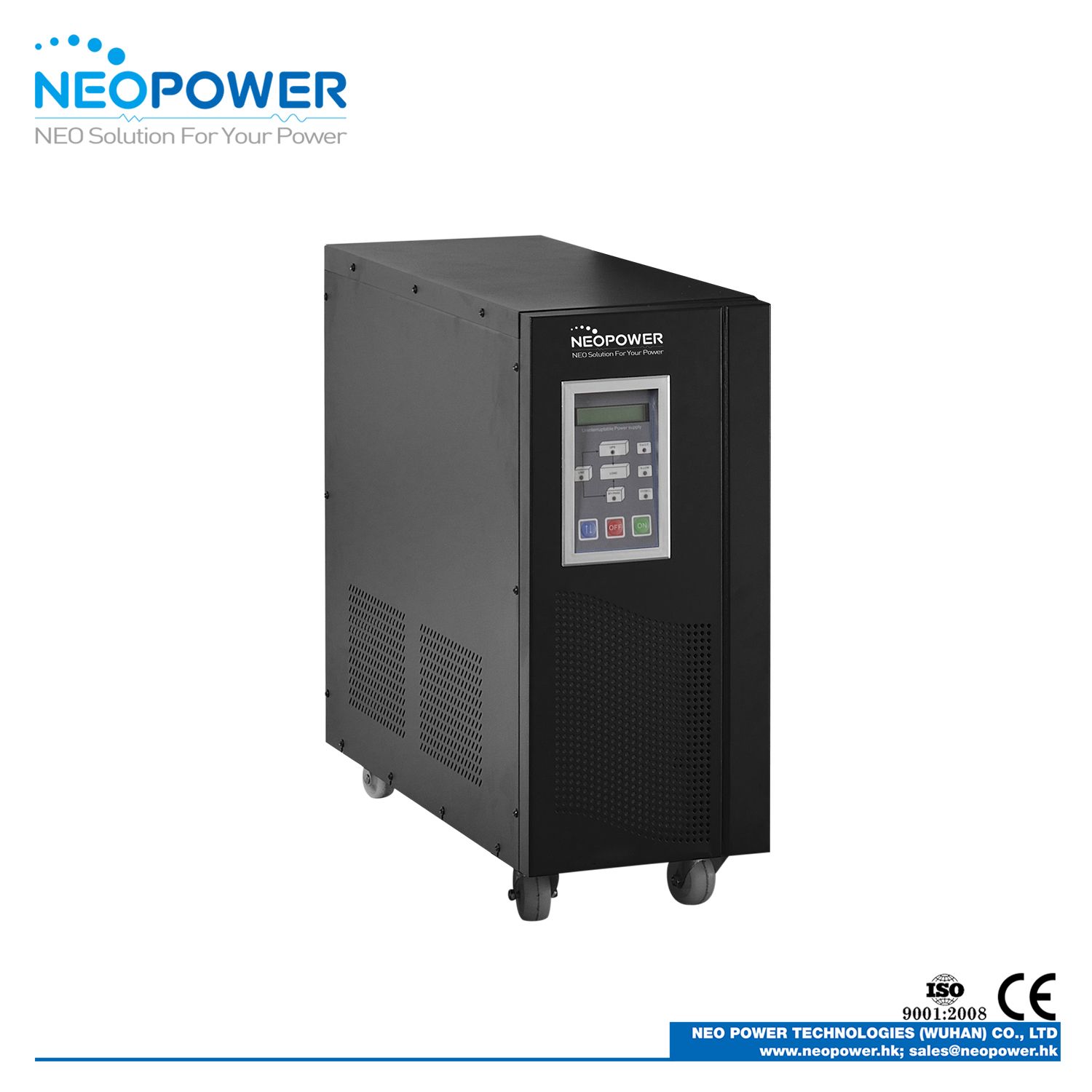

Battery Power Supply Online UPS 5kw for CCTV/BMS/PLC/Switch/Router/Bts

Name: Battery Power Supply Online UPS 5kw for CCTV/BMS/PLC/Switch/Router/Bts
Brand: all-electronics-online.com
SKU: 823161435
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 635-745/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP8106
Capacity:	6kVA
Power Factor:	0.8/0.9
Nominal Voltage:	220V/230V/240V/110V/120V
Topology:	Double Conversion
Backup Time:	Configurable
Display:	LED/LCD/Touch Screen
Communication:	RS232/RS485/RJ45/Rj11/Ethernet/USB/Dry Contact
Protocol:	Snmp/TCP/IP
Bypass:	Yes
Epo:	Yes
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Neopower

Product Description

Model	NP8106
Capacity	6000 VA
Power Rating	4800/5400 Watts
Input Voltage	160 ~ 275 Vac, single phase + N + PE
Input Frequency	50/60 Hz +/-5%
Input Power Factor	>0.98
Output Voltage	220/230/240 Vac +/-1%, single phase + N + PE
Output Frequency	50/60 Hz
Output Power Factor	0.8/0.9
Wave Form	Clean Sine Wave
THD	<3% (linear load)
Crest Factor	3 : 1
Efficiency	>85% (optional 90% ~ 95%)
Overload Ability	600' / 10' / 1' (110% / 125% / 150%)
Battery Voltage	192 Vdc
Transfer Time	0 ms
Display	LED (optional LCD)
Communication Port	RS232 / RS485 / SNMP Card / Dry Contact
Operation Temperature	-10 ~ 50ºC
Noise	<55 dB
Altitude	full power rating below 2000 m, 2% decrease as per 500 m higher
Humidity	95% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2, GB7260.2; EMC: IEC61000-4-2~5, GB/T17626.2~5
Dimension	230 * 580 * 550 mm
Net Weight	75 kG

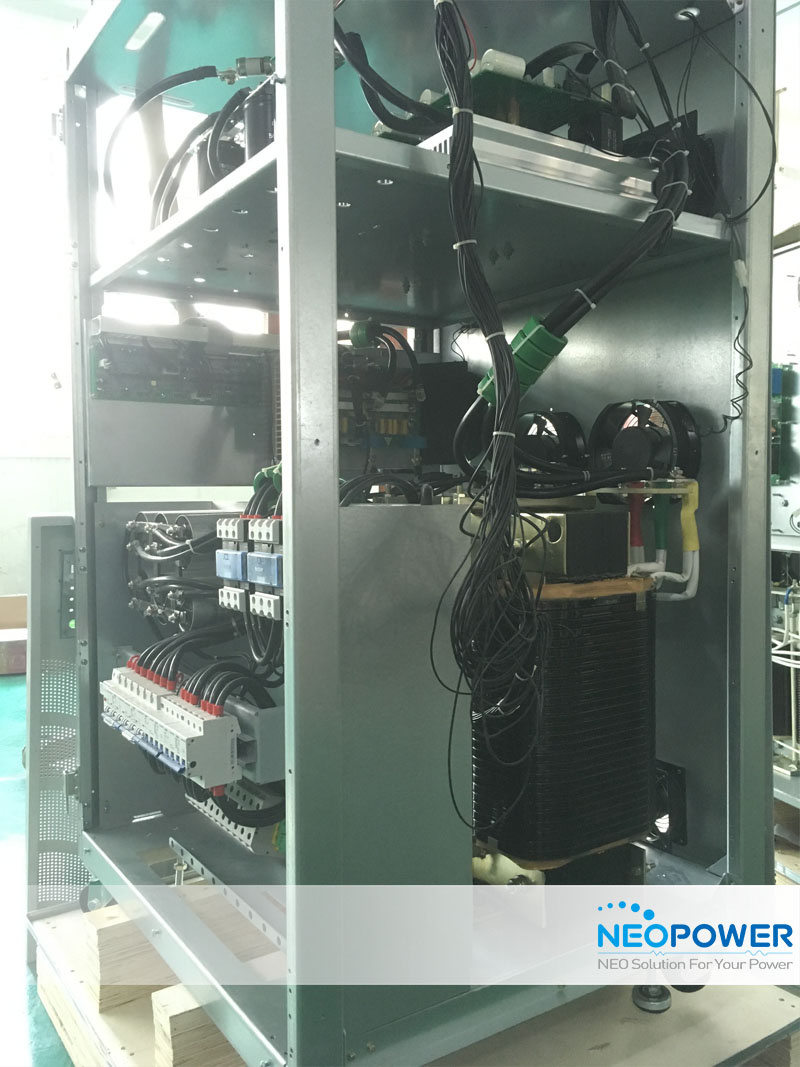

PRODUCT INTERIOR

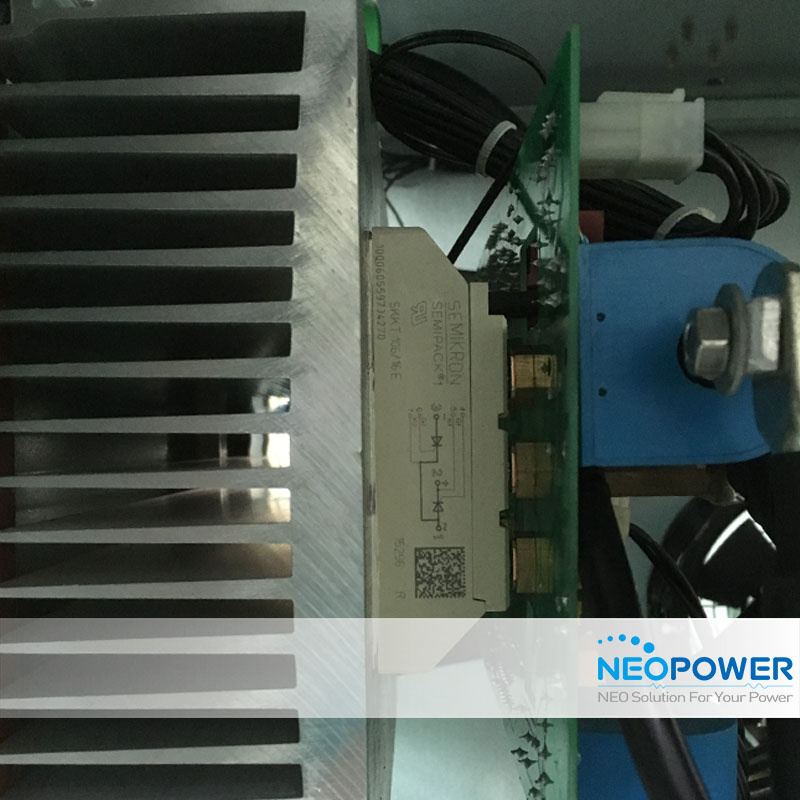

RECTIFIER PART

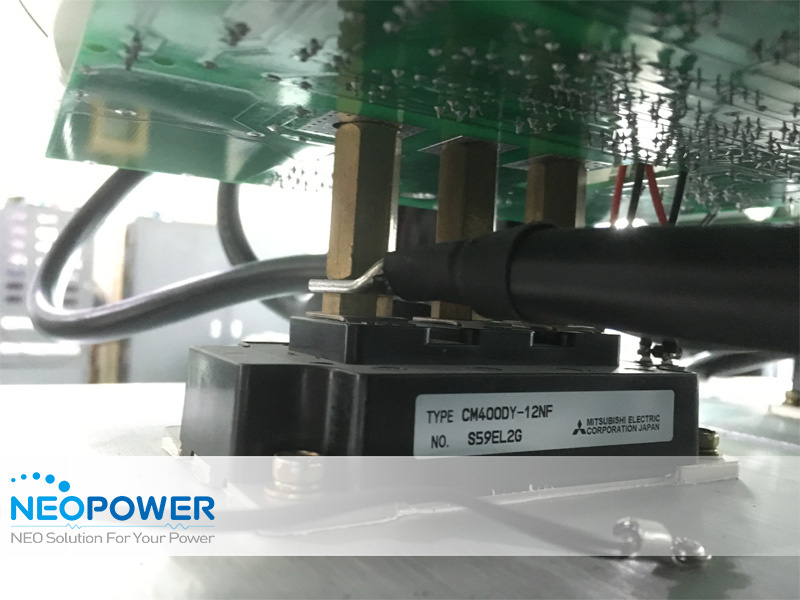

IGBT MODULE

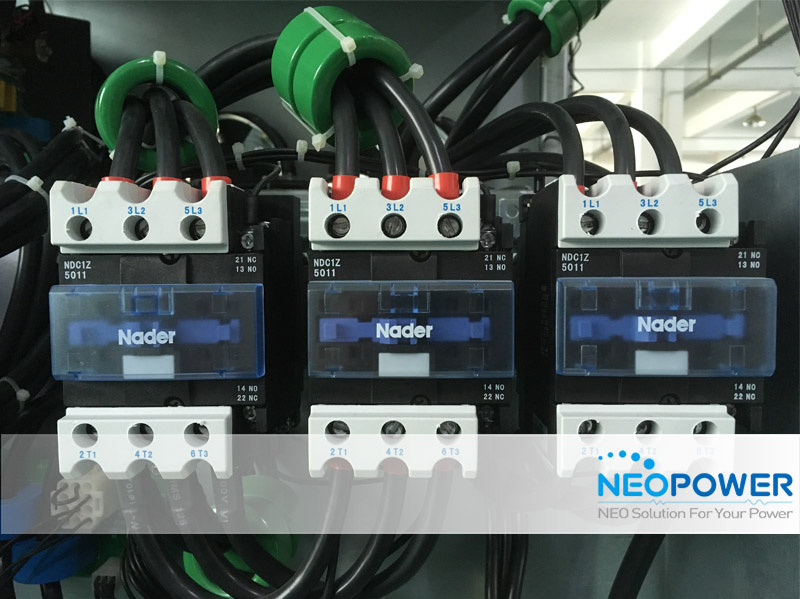

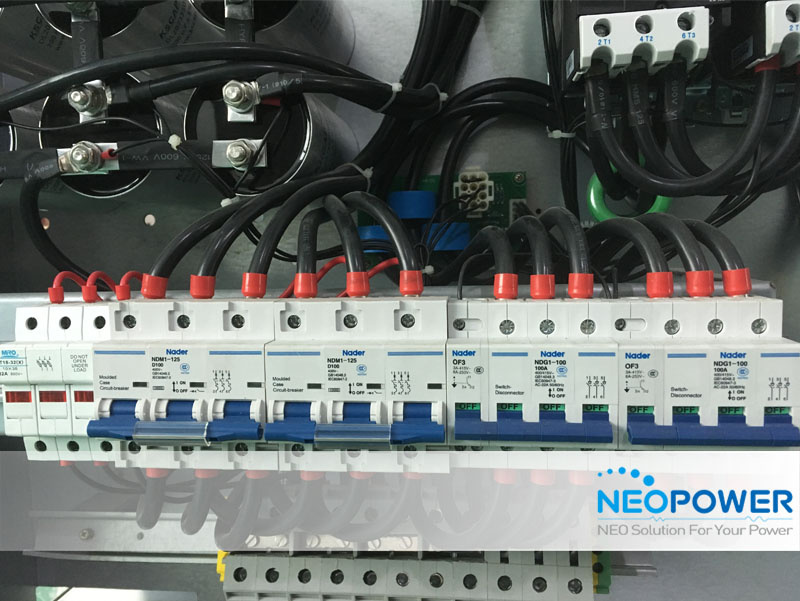

MILITARY BRAND BREAKERS & SWITCHES

FEATURES

Industrial Grade
Built-in Output Isolation Transformer
Max 8 Units Parallel Connection Available
6th Pack IGBT Module
Double DSP Control Units
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LCD & LED Display Options

NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).

NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.

Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.

NEO: The New, Effective, Optimistic attitudes towards your power problems!

Slogan: NEO Solution For Your Power

Purpose: To be a global leading expert in power optimization.

Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.

Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.

Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.

Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
