Bayonet Connector

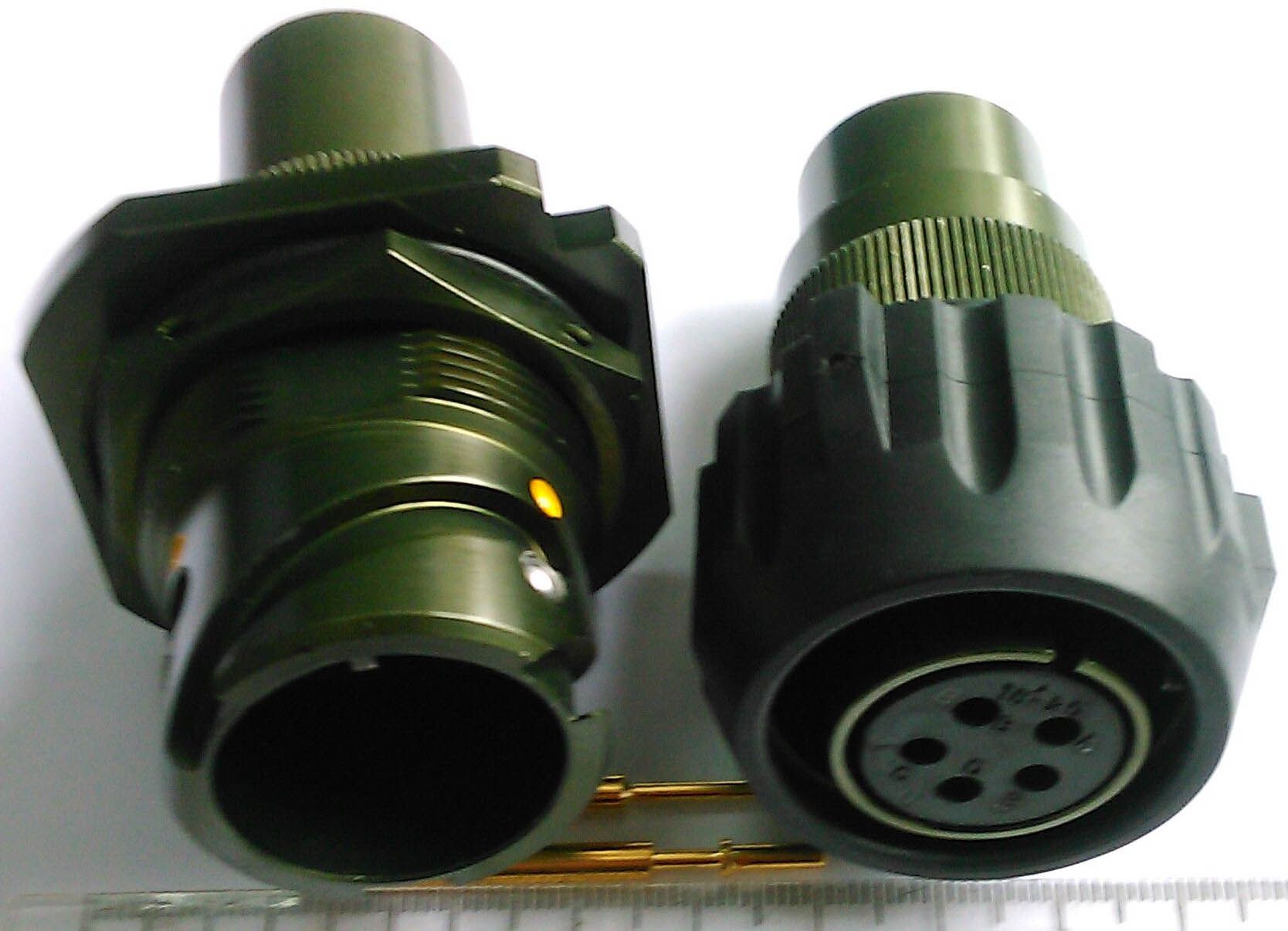

Name: Bayonet Connector
Brand: all-electronics-online.com
SKU: 780367065
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 32-35/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JL5-18-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	18-20
Number Of Contacts:	5
Connecting:	Bayonet

Product Description

MS series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors meet the standard MIL-C-5015, have the features of light weight, aluminium alloy material, wide range, Bayonet coupling, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It's the ideal product to replace the MIL-C-5015 series. They are interchangeable with the same category each other.

Product Ordering
MS/ 3106/ AK /18/ - 20/ S /
1 / 2 / 3 / 4 / 5 / 6 / 7
1. Name of series: MS series connectors
2. Type: 3100: Square flange receptacle with cable shell; 3101: Circular flange receptacle with cable shell; 3102: Square
Flange receptacle; 3106: Plug; 3108: Angled plug.
3. Degree: AK: Entire, BK: Can be released
4. Shell type: 10S, 12S, 14S, 16S, 18, 20, 22, 24, 28, 32, 36
5. Contacts position type
6. Type of contacts: P: Pin, S: Socket
7. Key position: W, X, Y, Z, Without note: Normal position

Technical characteristics
Temperature Endurance Environment Voltage proof Insulation resistance
-55° C~+125° C 500 cycles Normal 2000V ≥ 3000MΩ

Contact
Type Solder termination ? Current Voltage Contact resistance
16# ? 2mm 13A 500V ≤ 1.1MΩ
12# ? 3mm 23A ≤ 0.6MΩ
8# ? 5.2mm 46A ≤ 0.2MΩ
4# ? 8.5mm 80A ≤ 0.1MΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
