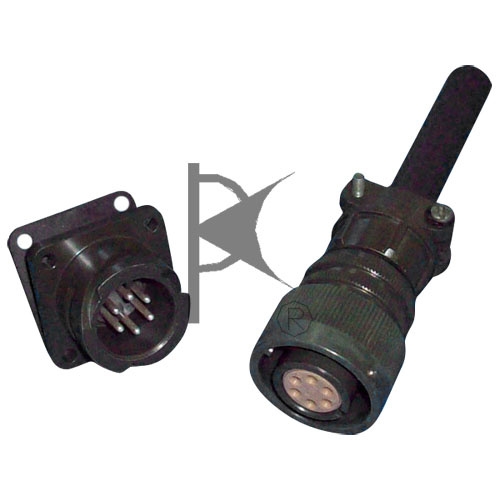

Bayonet Coupling Connector

Prod Model:	5015- 14S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	14s-2
Number Of Contacts:	4

Product Description

MS series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors meet the standard MIL-C-5015, have the features of light weight, aluminium alloy material, wide range, Bayonet coupling, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It's the ideal product to replace the MIL-C-5015 series. They are interchangeable with the same category each other.
Product Ordering
MS 3106 AK 14S - 2 S W
1 2 3 4 5 6 7
1. Name of series: MS series connectors
2. Type: 3100: Square flange receptacle with cable shell; 3101: Circular flange receptacle with cable shell; 3102: Square
Flange receptacle; 3106: Plug; 3108: Angled plug.
3. Degree: AK: Entire, BK: Can be released
4. Shell type: 8S, 10S, 12S, 14S, 16S, 18, 20, 22, 24, 28, 32, 36, 40
5. Contacts position type
6. Type of contacts: P: Pin, S: Socket
7. Key position: W, X, Y, Z, Without note: Normal position

Technical characteristics
Temperature Endurance Environment Voltage proof Insulation resistance
-55° C~+125° C 500 cycles Normal 2000V ≥ 3000MΩ

Contact
type Solder termination Ø Current Voltage Contact resistance
16# Ø2mm 13A 500V ≤1.1mΩ
12# Ø3mm 23A ≤0.6mΩ
8# Ø5.2mm 46A ≤0.2mΩ
4# Ø8.5mm 80A ≤0.1mΩ
