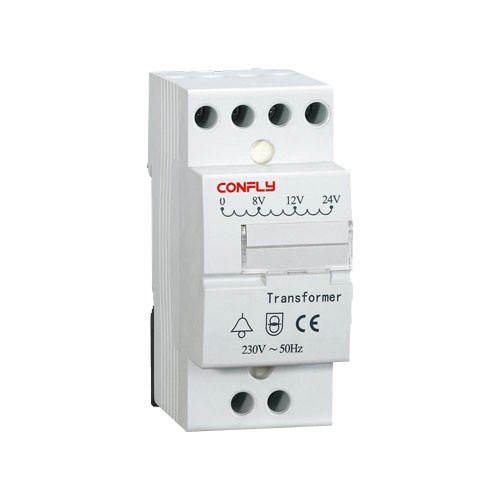

Bell Transformer 8V, 12V, 24V Bt-8
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
BT-8 |
| Rated Input Voltage: |
230V AC |
| Rated Output Voltage: |
8V,12V,24V |
| Rated Frequency: |
50/60Hz |
| Rated Power Output: |
8va |
| Installation Method: |
DIN Rail & Panel Mounting |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
RoHS |
| Structure: |
Bt-8 |
| Poles Number: |
8va |
| Type: |
Bell Transformer |
| Function: |
Power Electric Bell of Extra Low Voltage |
Product Description
Bell Transformer 8V,12V,24V BT-8Construction and FeatureApplicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to
power electric bell of extra low voltage.
Safe electrical separation between primary and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25% within 24 hours
Technical Data
Rated input voltage: 230V AC
Rated output voltage: 8,12, 24V
Rated frequency: 50/60Hz
Rated power output: 8VA
Consumption: 1.15W
Service period: continuous operating
Pollution class: 2
Connection terminals: pillar terminal with clamp
Connection capacity: rigid conductor 10mm²
Installation:
1. On symmetrical DIN rail
2. Panel mounting

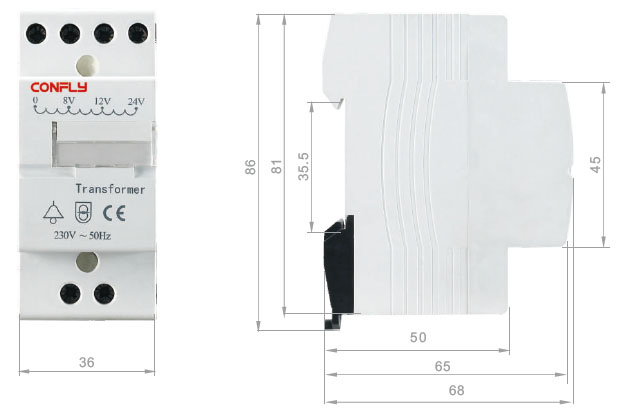

Overall & Dimensions
