Best Brand Factory UL Approved Customized Printed Circuit Board

Name: Best Brand Factory UL Approved Customized Printed Circuit Board
Brand: all-electronics-online.com
SKU: 810665065
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 1.34-1.78/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Structure:	Multilayer Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process

Product Description

Best Brand Factory UL Approved Customized Printed Circuit Board

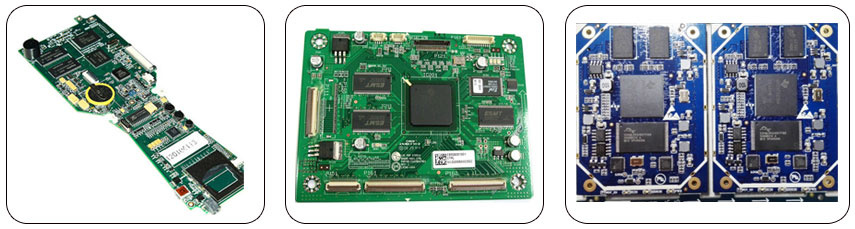

Products Display

Customized Printed Circuit Board Manufacturing Capabilities
Our PCB manufacturing capabilities can meet high restrict technical requirements such as customized printed circuit board manufacturing and cover almost 95% demand of customer requirements. In fact, we concentrated on this field for decades, so plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here.

Total Pad Size	Standard	Advanced
Capture Pad	Drill + 0.008	Drill + 0.006
Landing Pad	Drill + 0.008	Drill + 0.006
BC Mechanical Drill (Type III)	0.008	0.006
Laser Drill Size	0.004-0.010	0.0025
Material Thickness	0.0035	0.0025
Stacked Via	Yes	Yes
Type I Capabilities single & Double Deep	Yes	Yes
Type II Capabilities Buried Vias with Microvias	Yes	Yes
Type III Capabilities	Yes	Yes
Copper Filled Microvia	Yes	Yes
Smallest Copper Filled Microvia	0.004	0.0025
Copper Filled Microvia Aspect Ratio	0.75:1	1:01
Smallest Laser Microvia Hole Size	0.004	0.0025
Laser Via Aspect Ratio (Depth:Diameter)	0.75:1	c

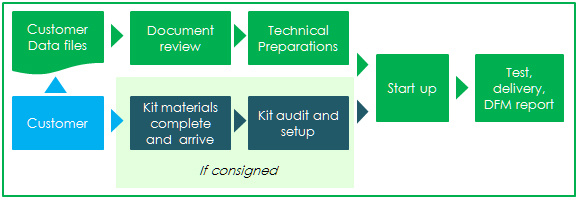

Customized Printed Circuit Board Manufacturing Process

About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We are offering customized printed circuit board manufacturing and assembly services to following big customers all over the world

Your customized printed circuit board demand will be perfectly handled by our professional production line and responsible work team.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
