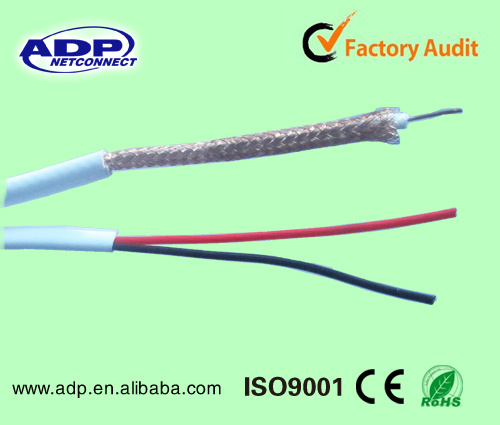

Best Composite Rg59 Siamese with Power Cable for CCTV/Security

Name: Best Composite Rg59 Siamese with Power Cable for CCTV/Security
Brand: all-electronics-online.com
SKU: 796555005
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	US $ 0.01-0.05/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	000001
1st Shield Type:	Al Foil
2rd Shield Type:	Biraid CCA/CCS/Al
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CCC

Product Description

Rg59 Siamese Cable:0.584CCS/CU+3.71Solid PE+CU/CCA BRAIDING 95%+6.1PVC+18AWG RED AND BLACK POWER CABLE

1) Construction

Center Conductor:

0.584±0.01mm Solid Bare Copper/Copper Clad Steel

Dielectric:

3.71±0.05mm Solid PE

Braid Coverage:

Cu Brading (95%)

Jacket:

6.10±0.05mm PVC

Power Cable:

7*0.38 Copper,Red and Black

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

54+3pF/m

Velocity of Propagation:

82%

Return Loss:

20dB min (5-300MHz)

3) Attenuation

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

0.65

1.97

1.18

3.61

2.58

7.87

100

3.66

11.16

200

5.27

16.08

400

7.53

22.97

700

10.44

31.83

900

11.94

36.42

1000

12.91

39.37

Rg59 Siamese Cable:0.81CCS/CU+3.66Foam PE+CU/CCA BRAIDING 95%+6.1PVC+18AWG RED AND BLACK POWER CABLE

1) Construction

Center Conductor:

0.81±0.01mm Solid Bare Copper/Copper Clad Steel

Dielectric:

3.66±0.05mm Foam PE

Braid Coverage:

Cu Brading (95%)

Jacket:

6.10±0.05mm PVC

Power Cable:

7*0.38 Copper,Red and Black

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

50±3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-2250MHz)

3) Attenuation

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

0.86

2.82

2.05

6.73

187

3.60

11.81

300

4.45

14.60

450

5.40

17.72

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

Rg6 Siamese Cable:1.02CCS/CU+4.57Foam PE+Al BRAIDING 95%+6.9PVC+18AWG RED AND BLACK POWER CABLE

1) Construction

Center Conductor:

1.02±0.01mm Solid Bare Copper/Copper Clad Steel

Dielectric:

4.57±0.05mm Foam PE

Shield:

Bonded Al Foil

Braid Coverage:

Al Brading (40%/60%90%)

Jacket:

6.90±0.05mm PVC

Power Cable:

18AWG red and black power cable

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

54±3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-2250MHz)

3) Attenuation

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

0.58

1.90

1.60

5.25

187

2.85

9.35

300

3.55

11.64

450

4.40

14.43

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49

1200

7.98

26.16

1450

8.46

27.73

1800

9.50

31.15

2200

9.73

31.92

3000

11.40

37.50

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
