| Prod Model: |
LKTM001 |
| Material: |
ABS |
| Sample: |
Available |
| Service: |
OEM, ODM |
| Place Of Origin: |
Guangdong, China |
| Application: |
Network |
| Delivery Detail: |
7 Days |
| Package: |
Inner Bag, Box and Carton Package |
| Shipping Terms: |
DHL/FedEx/EMS/UPS/TNT Ect. |
| Types: |
Different |
| Quality: |
High Quality and Best After-Sale Service |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
Guangzhou Lulink Hot Sale Disconnection Module

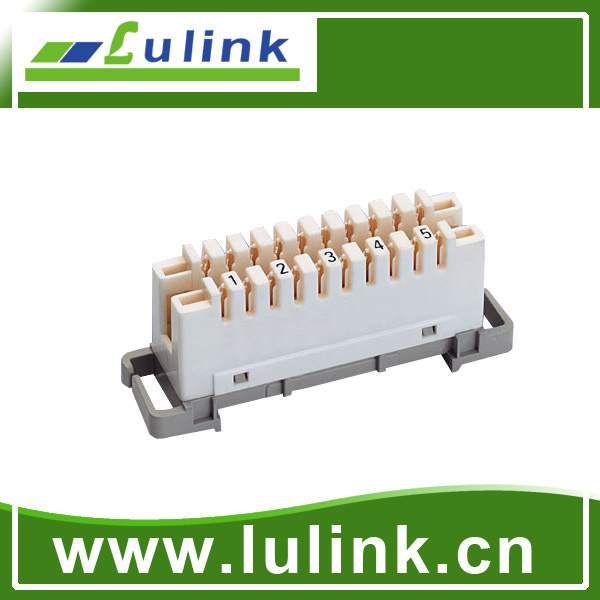

Product Name: 5 Pair Disconnection Module
Brand: Lulink, OEM available
Material: House: PBT/ABS, Contact pin: Silver-plated Bronze
Packing: 10PCS/Box
Specification:
1. The modules are compatible with KRONE LSA-PLUS modules.
2. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
3. Material of Plastic Parts: PBT-V0 UL94 or ABS-Fair-Resistant
4. Material of Contacts Pin: Silver-plated Bronze
5. Internal diameter of connection wire: 0.4-0.7 mm
6. External diameter of connection wire (shield): 0.7-1.4 mm
7. Insulation resistance R>100000000Mohm.
8. Typical contact resistance of wire connection approx R<0.007ohm.
9. Voltage intensity: 1000V/min without breakdown and arcover
Specification:
1. Material: Housing-ABS UL94V-2
Base-ABS UL94V-2
Contact -0.5mm thickness
Phosphor bronze plating over nickel over silver
2. Cabel: wire sizes:
Solid copper wires up to 0.4mm-0.8mm in DIA
Insulation PE or PVC insulated wire

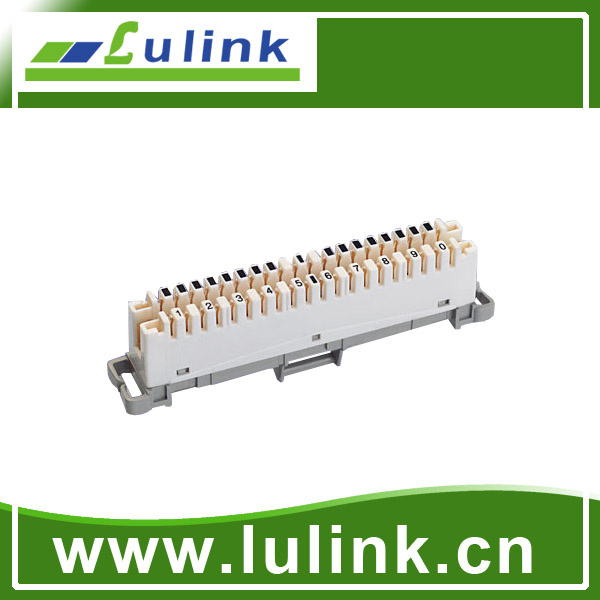

3. Wire: AWG 24-26# 10 pairs of terminal Block
DescriptionThe 10 pairs of terminal block is used for distribution frame and cross connection cabinet, it adapt the insulation displacement contact system (IDC). The connection system facilitate termination of cable wire without striping the insulation, without soldering and without screwing. with the silver plated terminal to make the reliable connection. Main Feature:-The terminal block with the insulation displacement contact system (IDC).-the connection system facilitate termination of cable wire without striping the insulation, without soldering and without screwing.-The individual pair terminals in each module have identification number 1 through 10. -Wire guiding rings provided on both sides of each module.Terminal Pin Technical data Electrical Requirements: 5.1 Reference temperature 20[c]. - Inserted module: connection module.
- Insulation resistance: min 50 G [ohms].
- Dielectric strength min 2000 [Vrms].
- Contact resistance: less than 5 m [Ohms].
Permanent current load capacity = wire capacity of 0.6 [mm]. Conductor Diameter:Solid copper wire up to 0.4mm-1.0mm in diam insulation PE or PVC insulated wireWire: AWG 24-28# Properties:Connection frequency:200timesEasy connection of wires without affecting normal operation.Performance exceeds category 4 components requirementAllows connection plug over-voltage protection blocks 10pairsTesting without have to remove the jumper. Material: Housing-PBT UL94V-2Base-PBT UL94V-0Contact-0.5MM THICKNESS Base Plating over silver. Labeling plate:In order to show the row number, block number clear and let the operation more simple and convenience, there is a labeling plate indicating for match use as below, show .row number, block number, cable number, and pair from…To...Bracket 100P (option) for Matching use: The terminal blocks consist of disconnection modules for 10 pair each, mounted on a back mount frame of stainless steel as below:Use for how many pairs in option such as 10p, 20p,50p, 100p, 200p.... Material:stainless steel304,other material for option. Size:Use for this project choose 100P, the size:22.5*10.4*4.5CMOther size for reference: 50P:11.2*10.4*4.5CM,200P:45*10.4*4.5CM Design:With rubber ring for each hole design to protect the wire jacket no break Thickness:The thick layer is 0.1CM.other thickness for option.The most advanced equipments for both producing and testing, which imported from Europe and America. The main export markets:
North America, Asia ,Western Europe , Australia , Africa ,South America ,Middle East
Our service:
1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.
Shipping:
BY DHL, UPS, FedEx, TNT, EMS etc...
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder.
Payment:
Paypal, Escrow for samples, small qty order or urgent orders at the buyer convenience .TT, L/C, Western Union for mass orders.
30% as Deposit, 70% Balance paid before delivery
Packing:
1) Package:available according to client's request,poly bag, carton box and so on
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Lulink Electronics Technology Co. Ltd
Established in 2005 with headquarter and R&D managing department based in Guangzhou.
Lulink is an export organization specialized in developing,designing,producing network intellgent wire and telecommunication equipments,the products range consists of main categories and metal sheeting,Lulink is supported by a strong R&D team which has more than three years experience in the field of technology and integrating brilliant designers,technicians,support groups,sales and marketing organizations.We offers and accepts OEM/ODM service to customers.We have evperienced employees,respectively specialized in management,all the workers received the professional training with some years experience for their activities.

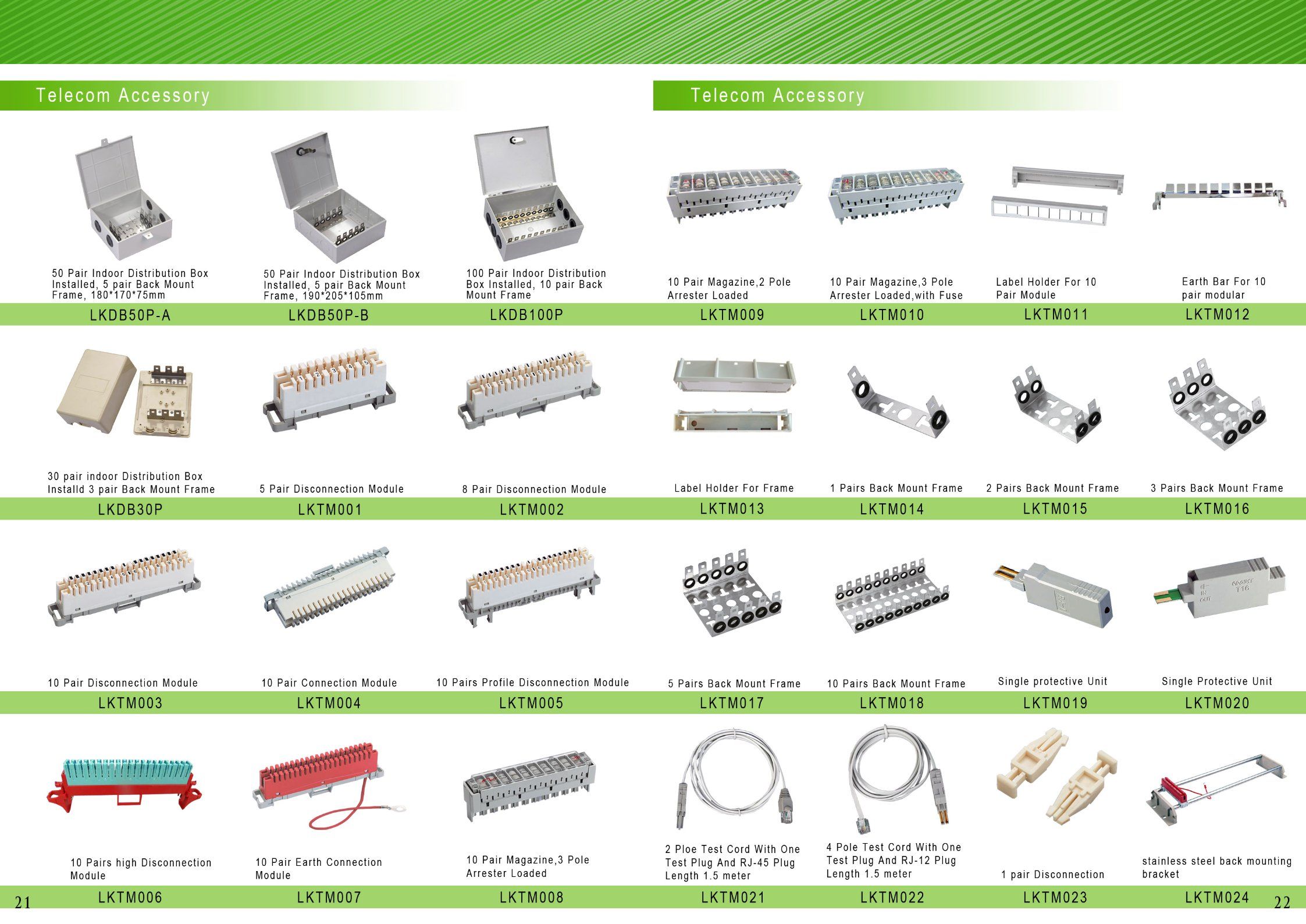

Our Main products:
