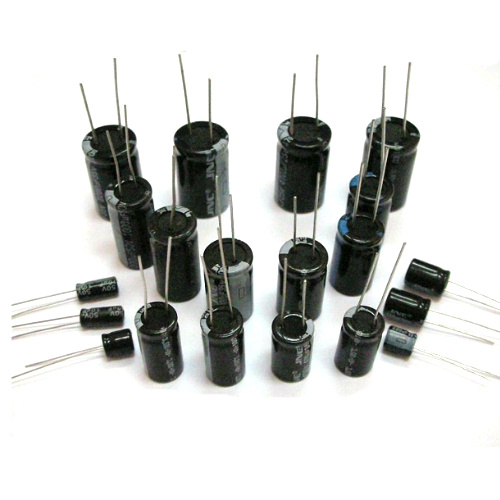

Best Price DIP Type Aluminum Electrolytic Capacitor

Prod Model:	electrolytic capacitor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Voltage:	for You
Model:	DIP Type
Type:	Aluminum Electrolytic Capacitor
Application:	Fan
Package Type:	Through Hole
Capacitance:	1UF-4700UF

Product Description

Key Specifications/Special Features:

Operating temperature: Long lifte up to 2000 hours, low leakage and low ESR ± 40 to 105° C (6.3 to 100V) ± 25 to 105° C (160 to 450V) Rated voltage: 6.3 to 450V Nominal capacitance: 0.1 to 15, 000uF Capacitance tolerance: ± 20% (20° C or 120Hz) Leakage current (UR ≥ 100V): I ≥ 0.01 CR UR (uA) or 3uA (which ever is greater) 2 minutes After UR ≥ 160V: I ≥ 0.03 CR UR +10 (uA) 2 minutes after

Dissipation factor (25° C, 120Hz):
UR: 6.3, 10, 16, 25, 35, 50, 63, 100, 160 to 250, and 350 to 450V
TGD: 0.22, 0.19, 0.16, 0.14, 0.12, 0.10, 0.09, 0.08, 0.15, and 0.20
Over 1, 000uF, 0.02 is added to every 1, 000uF increase
Load lifespan: After applied rated voltage for 1, 000 hours at + 105C, at C ≥ ± 25% of initial value
TGD ≥ 200% of specified value and IL ≥ Specified value
Shelf lifespan: After shelf for 500 hours (without voltage applied) at +105° C, then restored for 24 hours inside room
Temperature: ≥ ± 25% of initial value, TGD ≥ 200% of specified value, IL ≥ Specified
Stable and reliable performances
Suitable for use in electronic circuits for coupling, decoupling bypass, and filtering
Specially designed for electronic ballast and energy-save lamp, white-black TVs, radio, telephone circuits ect.

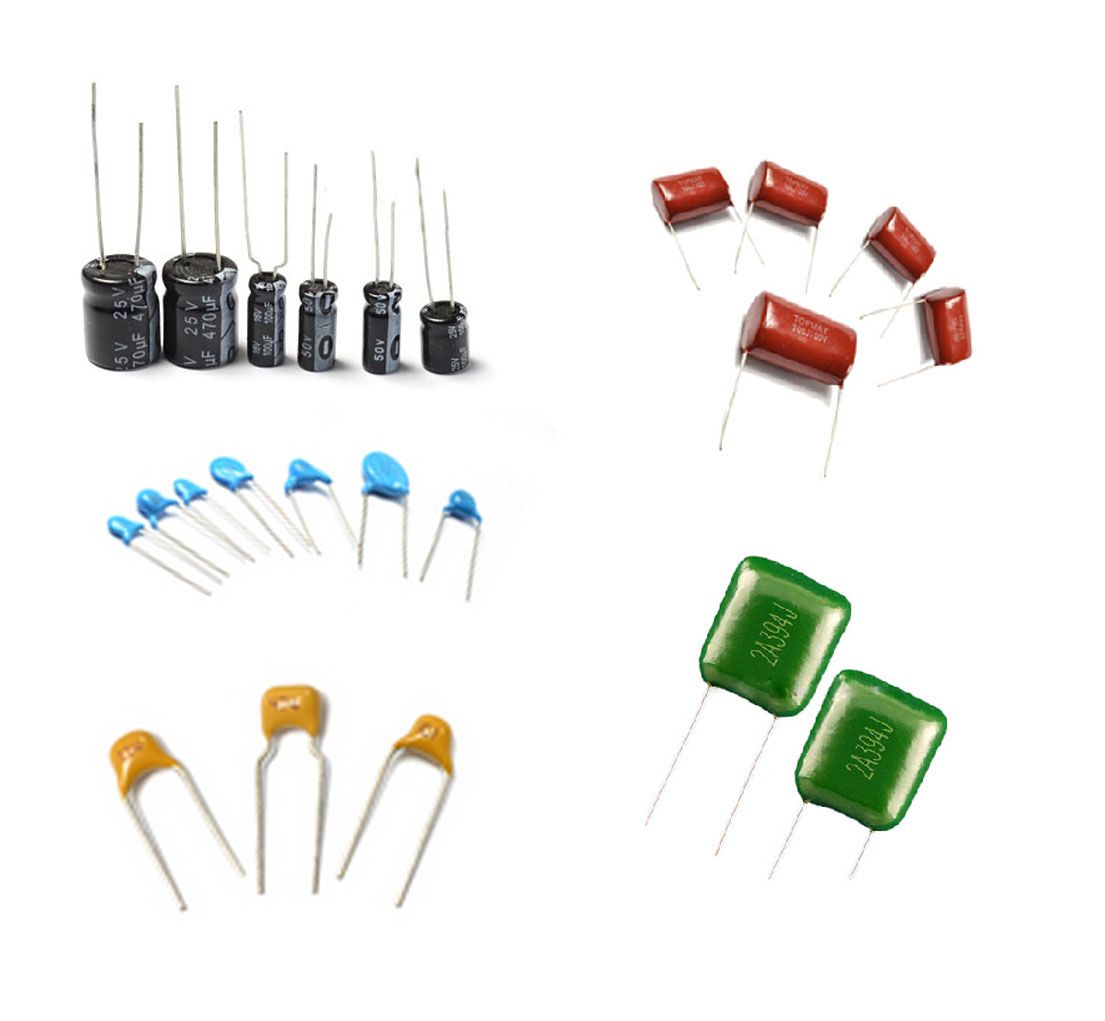

Other capacitors:
Higt Ripple Current Higt Temperature, Extremely Long Life.
